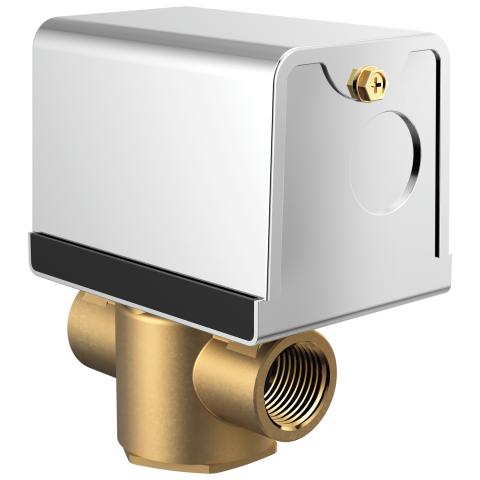

The Delta Auto Drain is an optional add-on to the 5GE-SMP Series Steam Generator that automatically purges water from the system after each steam shower.
Model: Auto Drain
Voltage: 208 or 240
Width: 2.38" (60 mm)
Depth: 3.5" (89 mm)
Height: 4.25" (108 mm)
Inlet & Outlet Connection: 1/2" NPT Brass Female Thread
Prop 65 WARNING: Lead
Swipe horizontally to reveal full table content.
- Automatically purges the system by gravity once water in the generator cools
- Connects to a factory installed auto drain terminal block located inside the generator cabinet
- Valve body with 1/2" NPT brass female connection
- Normally Closed Valve (N.C.)
- Designed for use with 208V and 240V 5GE-SMP Series Steam Generators (voltage should match the voltage of your generator)
$79,995.00 $89,999.00
