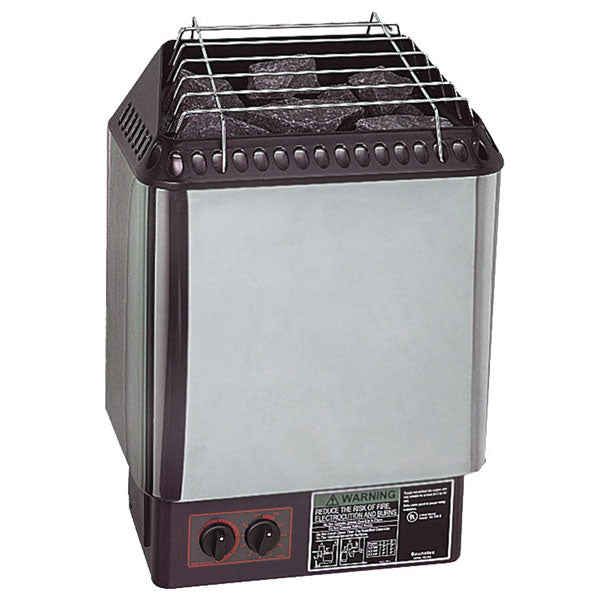

Here's a comprehensive technical specification sheet for the Designer-B Sauna Heater:
Professional Wall-Mounted Electric Heater with Integrated Controls
Built-in "9+1" Digital Control System
9-hour programmable delay start
1-hour incremental operation (1-9 hours)
Bottom-mounted (front or side options)
Massive Stone Capacity
Holds 50 lbs of premium olivine diabase stones
Optimal air flow design for perfect löyly

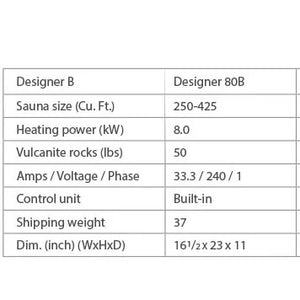

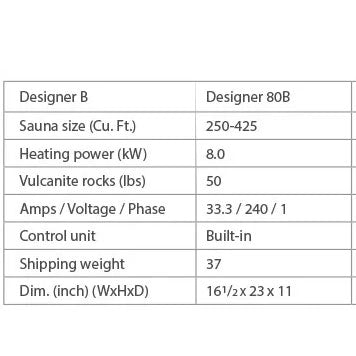

Model Options:
| Model | Room Size | Power | Voltage | Amperage | Breaker Size |
|---|---|---|---|---|---|
| DB-4.5 | 100-250 cu ft | 4.5 kW | 240V | 18.75A | 25A |
| DB-6.0 | 250-350 cu ft | 6.0 kW | 240V | 25A | 35A |
| DB-8.0 | 350-425 cu ft | 8.0 kW | 240V | 33.3A | 45A |
Physical Dimensions:
Width: 16.5" (42 cm)
Height: 23" (58 cm)
Depth: 11" (28 cm)
Weight: 55 lbs empty / 105 lbs loaded
Electrical:
Requires dedicated 240V circuit
8 AWG copper wiring minimum
GFCI protection recommended
Clearances:
24" minimum from benches
18" from ceiling
6" side/rear clearance
Ventilation:
4" minimum under-door air gap
No mechanical ventilation required
Temperature Range: 100-200°F (38-93°C)
Safety Features:
Dual thermal cutoff (auto + manual reset)
Child safety lock
Overcurrent protection
LED Display: Bright, easy-to-read interface
Heater unit with controls
Heavy-duty mounting bracket
Stainless steel stone guard
Installation manual
Hardware kit
Premium olivine diabase stones
Custom-sized heat shields
Remote monitoring system (optional)
2-year limited warranty
Lifetime technical support
Free installation consultation
Note: Professional installation strongly recommended. All electrical connections must comply with local codes.
Would you like specific wiring diagrams or stone arrangement recommendations for your sauna size?
