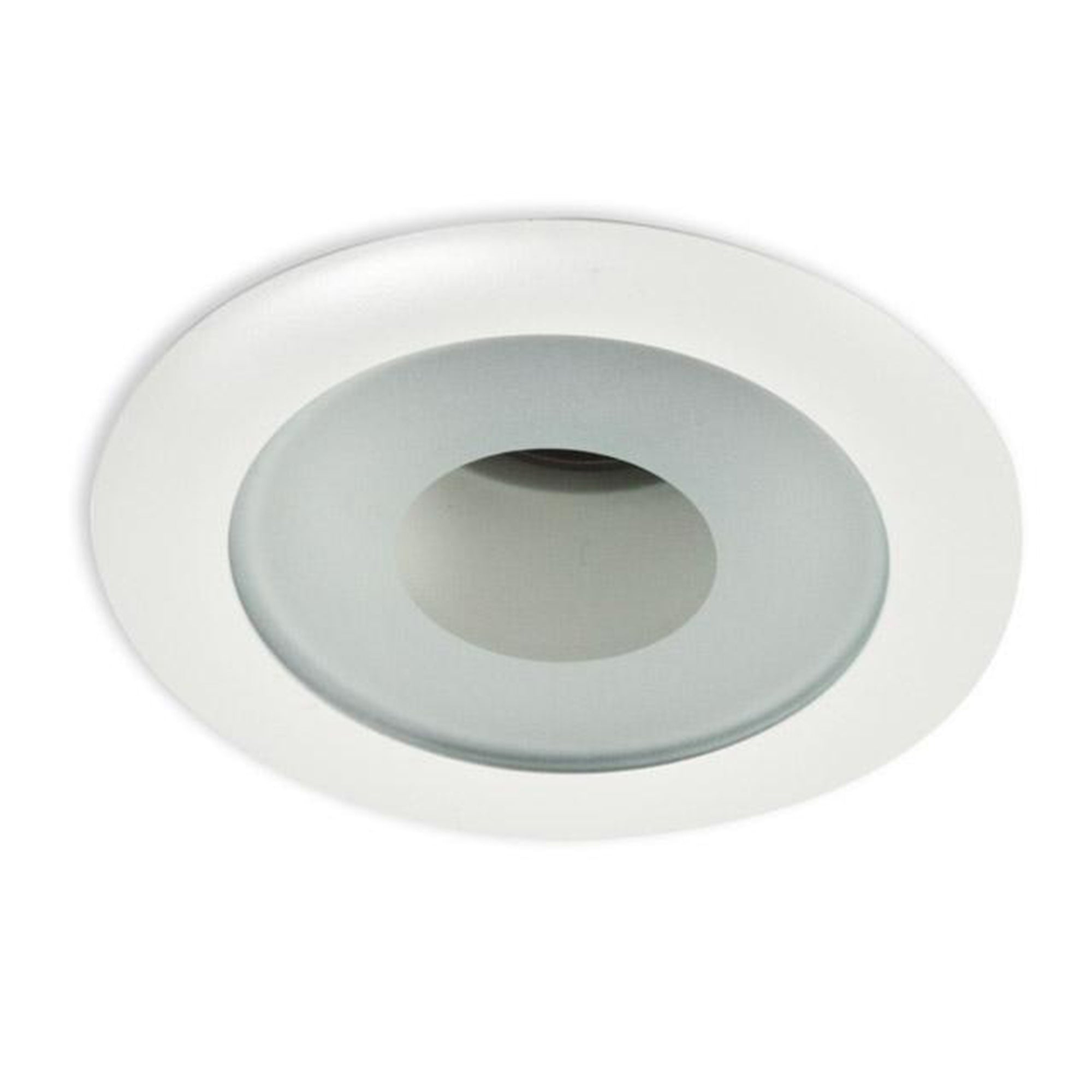

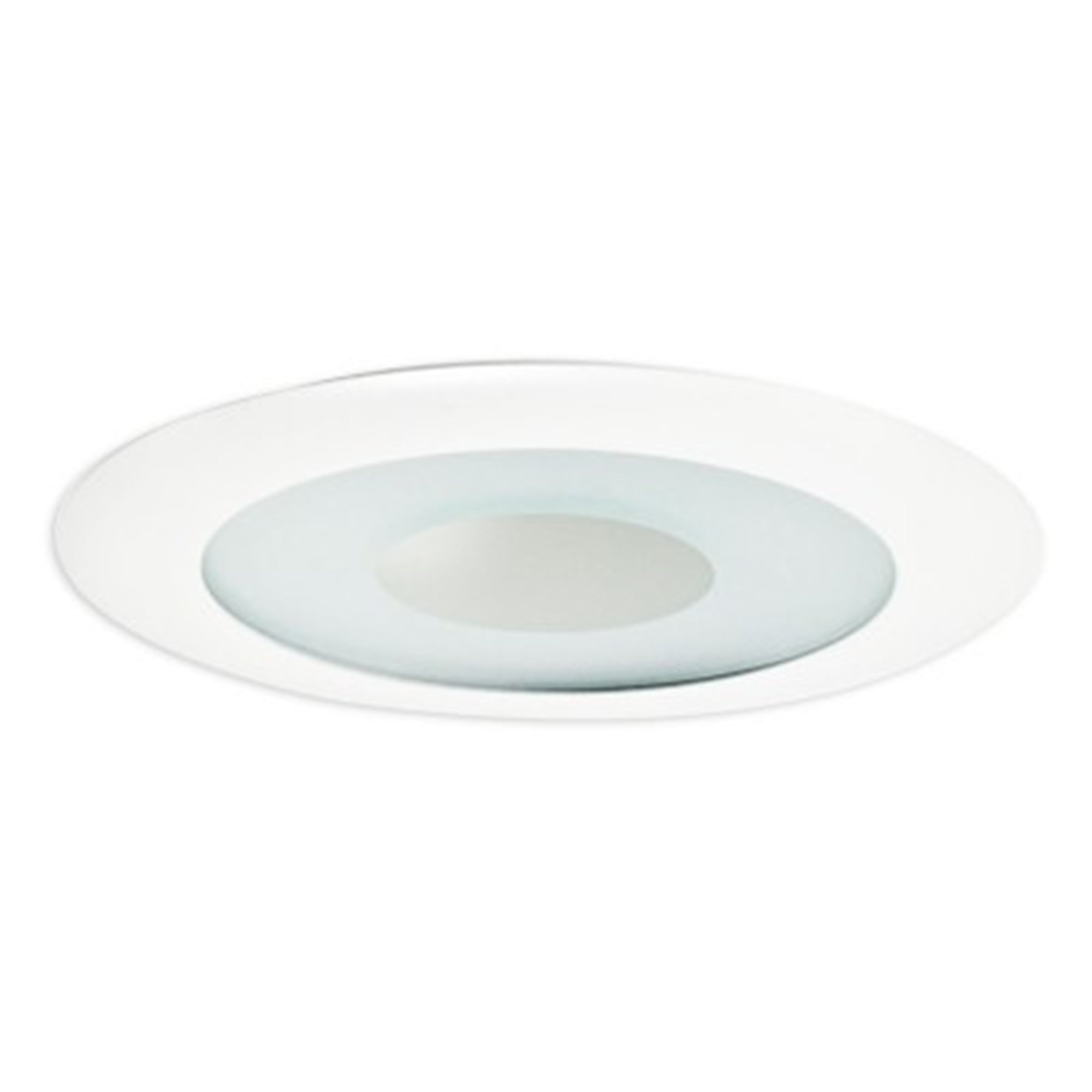

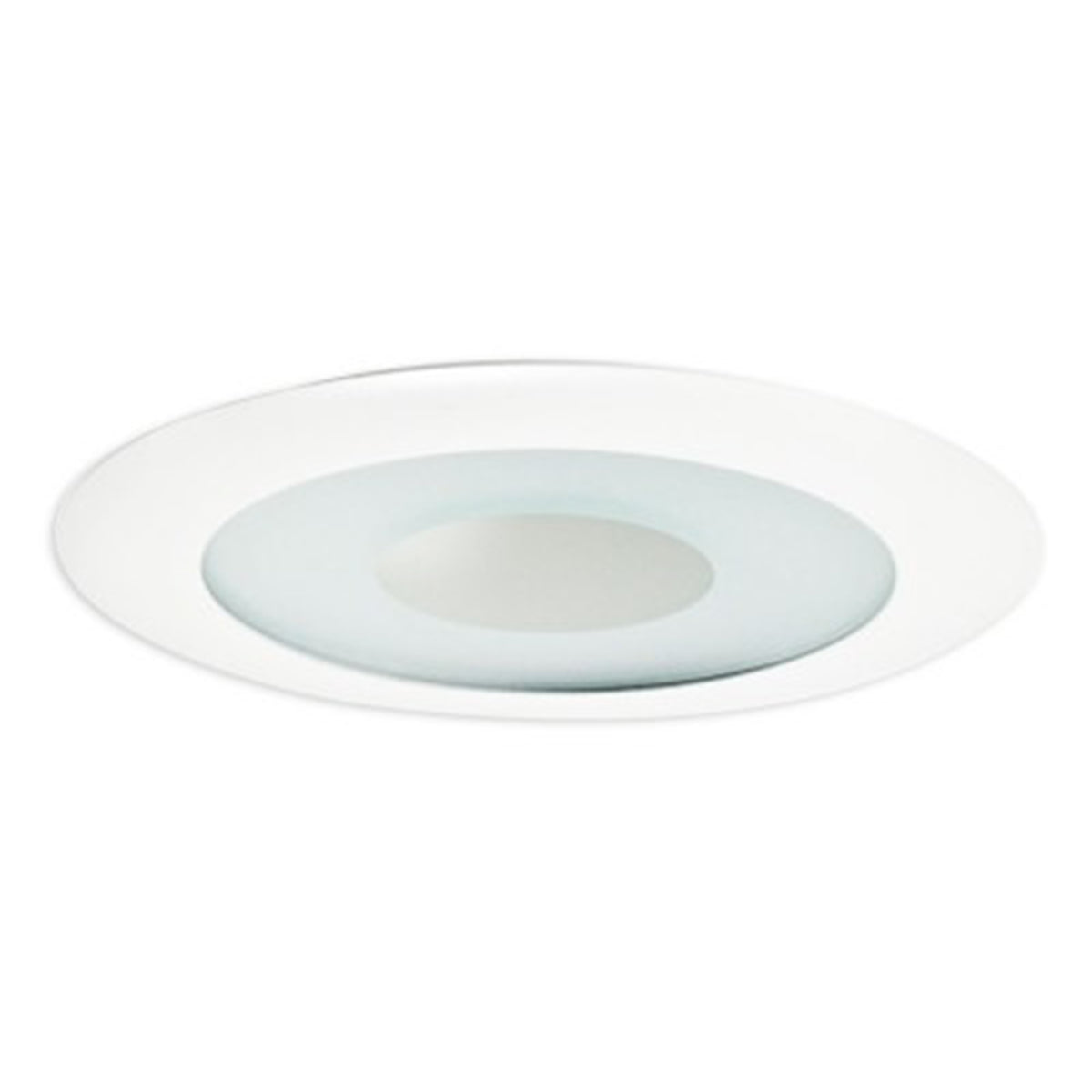

Spectrum 320 is a low-voltage, recessed, ceiling-mounted light that's UL listed for wet locations. Utilizing a unique leaf spring mounting mechanism, the near-flush trim contains a frosted glass lens with a clear center to cast the ideal downward shine. Perfect for steam bathing environments, the Spectrum 320 overcomes sloped ceiling room designs with its innovative 35-degree lamp angle adjustment technology.
Created for both remodeling and new construction, the Spectrum 320 housing comes pre-wired and ready to install. The electronic low-voltage transformer (120VAC/12VAC) is conveniently located atop the housing with an integral junction box.
Consider the Spectrum 320 for new construction or remodeling projects where insulation may be set-back a minimum of 3" from the housing, the maximum ceiling thickness does not exceed 1-1/4" and there exists 6" of installation height.
Model: SPECTRUM 320
Fixture_Type: Recessed Ceiling Downlight, Halogen
Dimming: Low Voltage Magnetic Type Dimmer
Insulation_Contact: Non-IC Rated
Minimum_Installation_Height: 6"
Maximum_Ceiling_Thickness: 1-1/4"
Rough_In_Cut_Out: 4-3/8"
Housing_Dimensions:
Length: 10-1/2"
Width: 4-3/4"
Height: 5-1/4"
Transformer:
Input_Voltage: 120V AC
Output_Voltage: 12V AC
Power: 50VA
Protection: Thermally Protected, Magnetic
Shipping_Weight: 6 lbs
Testing: [UL Listed, CSA, Suitable for Wet Locations]
Trim:
Material: Steel
Finish: Electrostatic Powder Paint
Profile: 1/8"
Diameter: 5"
Lens:
Type: Etched Frosted Tempered Glass with Clear Center
Lamp:
Type: 50 Watt 12VAC MR16, GU5.3 Base, Halogen
Current: 4.25 Amps
Life: 3000 Hours
Socket: Bi-Pin with Ceramic Insulator and Aluminum Heat Shield
Color_Temperature: 3000K
Color_Rendering_Index: 100 Ra8
Beam_Angle: 36°
Lumen_Output: 850
