Steam Room / In-Shower Dimmable LED Lighting System, Single Zone
Shower your bathing space with a customizable array of natural white dimmable lights from Bathology!
Ambiance
Ideal for use inside steam showers and wet areas where waterproof lighting is required, these distinctive, flush-fitting dimmable LED light fixtures will intensify your bathing enjoyment while providing elegant luminosity. One system can power from 1 to 10 lights, giving you the flexibility to cost-effectively produce the perfect amount of brightness for your shower or bath. The pure white light will reveal the true colors of your surfaces materials and visually accentuate the steam within the bathing space.

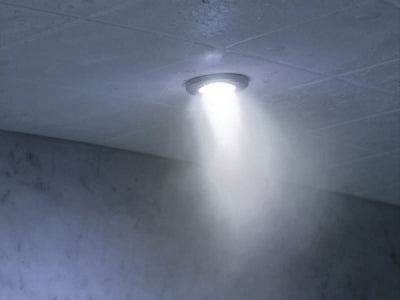

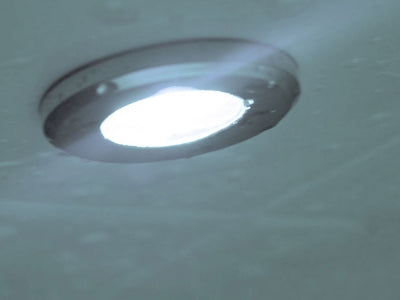

Direct the flush-mounted lights to highlight and define specific areas and enhance the safety or visual effect. Their compact 1-1/4" diameter lens and integrated appearance make them perfect for ceiling and under bench applications. An IP68 immersion rating ensures that these lights are engineered and trusted as safe for use in wet areas.
Beauty and Durability

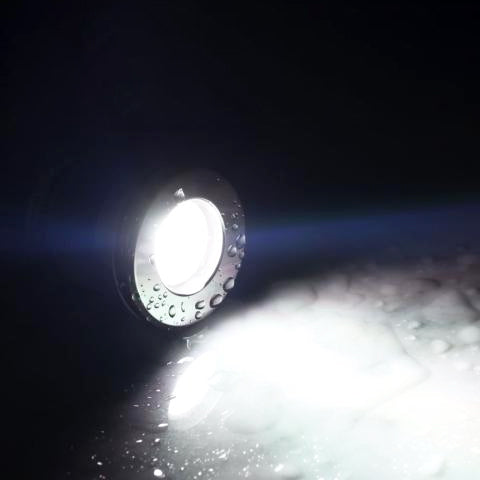

Spectrum 440D lights are impervious to corrosion and employ a polished sealed stainless steel bezel mounted to a robust stainless steel body. With rugged construction and 100,000-hour LED's, these lights will provide a lifetime of bathing splendor. Opt for either a tempered clear lens for more focused lighting or a frosted lens for a softer intensity.
Easy Installation
The Spectrum 440D's transformer mounts easily and can be connected to a switchable dimmable 120VAC power source. Power is converted to a low-voltage12V, and is routed in series to each light fixture using a cable up to 50 feet in length. A single transformer may be used to connect up to ten lights.
Meticulous planning and consideration has been taken to ensure easy and trouble-free and water-tight installation making the Spectrum 440D a must for new construction or rebuild projects. Tradesman and installers will appreciate the installation template supplied with each system for precise light placement every time. The compact size also provides a greater variety of placement options.
Model: Spectrum 440D
Power_Supply:
Operating_Voltage: 120VAC
Output_Voltage: 22VDC-54VDC
Power_Consumption: 25W
Nominal_Amperage: 0.29 Amps
Dimensions: 4.13"L x 2.48"W x 1.18"H
Brilliance_Fixture:
Type: LED Cool White (5650-6300K)
Operating_Voltage: 12VDC
Maximum_Input_Current: 700mA
Power_Consumption: 1 x 3 Watt
Beam_Angle: 35° Clear / 120° Frosted
Lumens: 142 Lumens max per fixture
Trim_Finish: Polished Stainless Steel
Housing_Composition: Stainless Steel
Lens:
Type: Clear or Frosted
Diameter: 1-1/4"
Composition: Tempered Glass
Rough_In_Cut_Out: 1-5/8" to 1-11/16"
Trim_Dimension: 2" Diameter, 1/8" Profile
Body_Dimensions: 1-15/32" Diameter x 1-7/8" Deep
Rating: IP68
Certifications: [CE, RoHS, WEEE]
Enclosure:
Housing_Composition: Steel, black powder coated finish
Dimensions: 7-3/4"W x 1-7/8"H x 4-7/8"D
Standards: NEMA 1
Listings: [ETL, UL]
Construction_Template:
Composition: Steel, Galvanized, Gauge 22
Dimensions: 15-1/8"L x 1/32"H x 3"W
