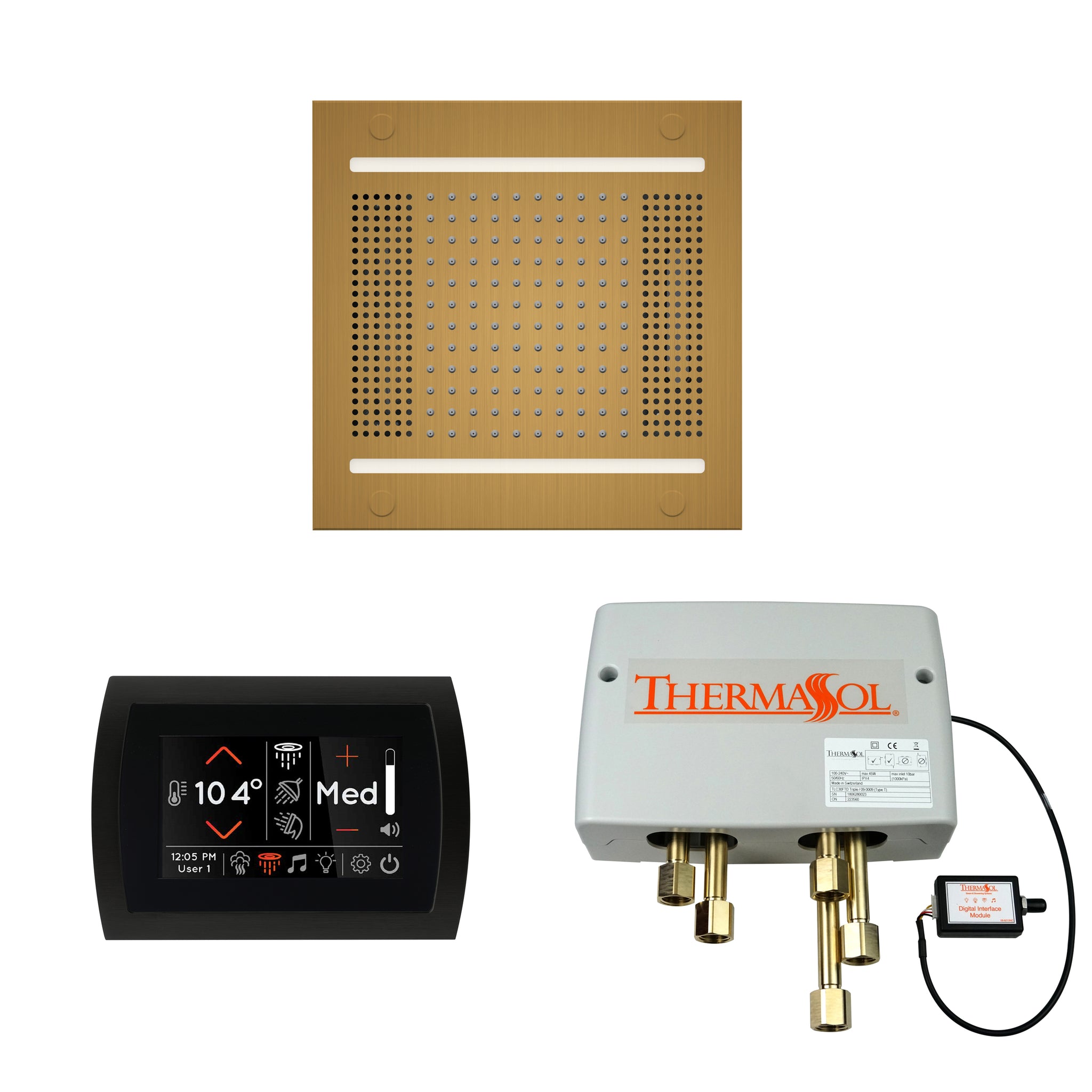

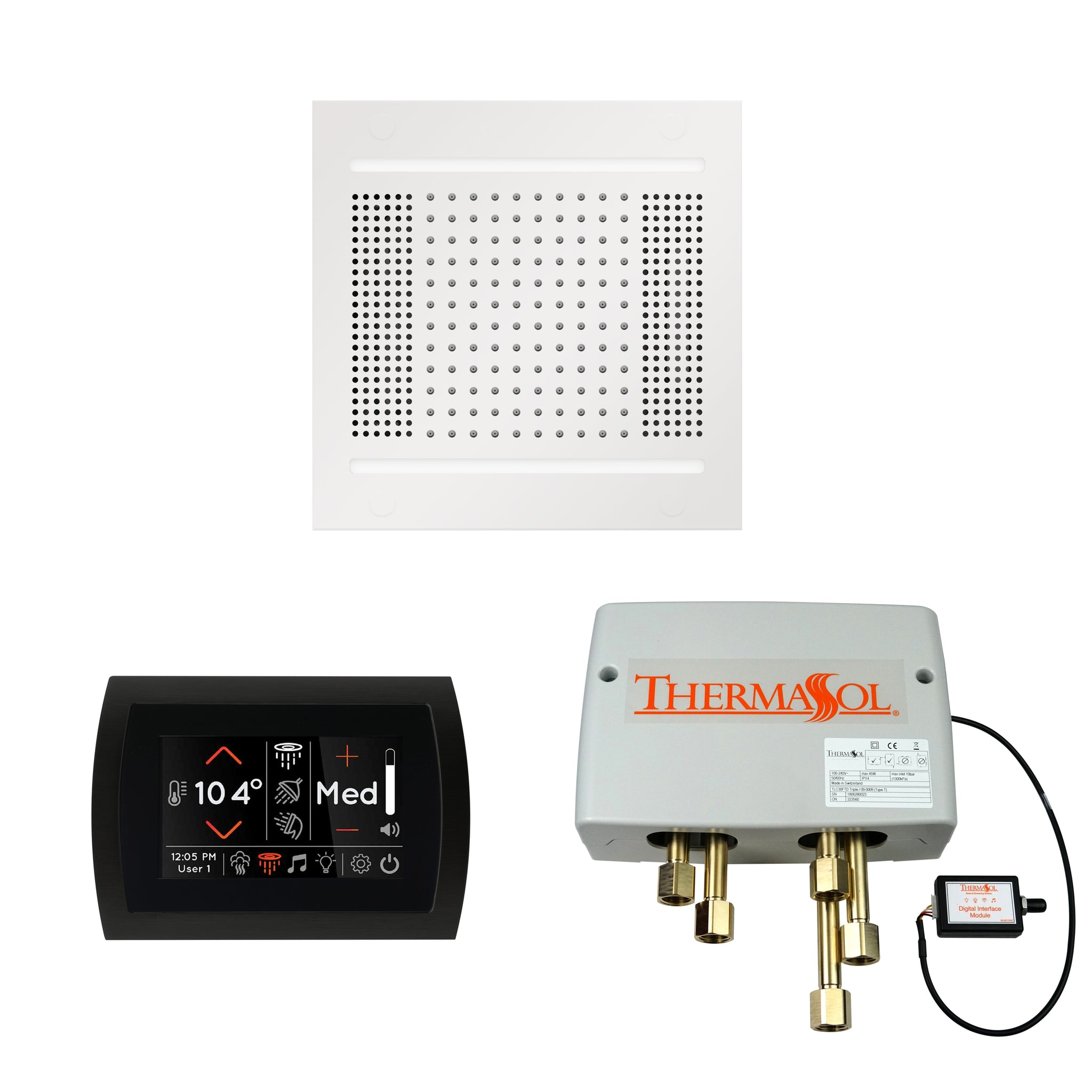

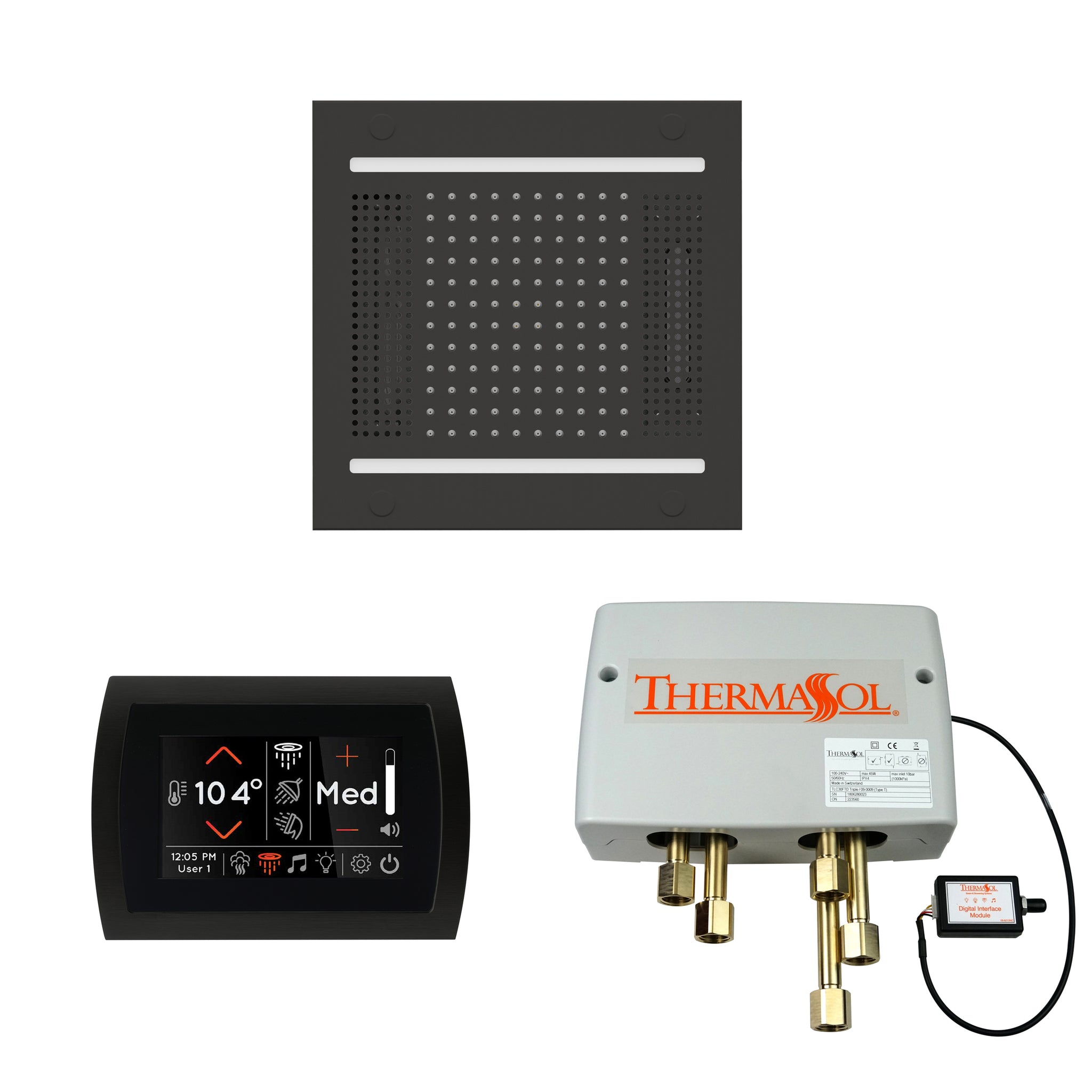

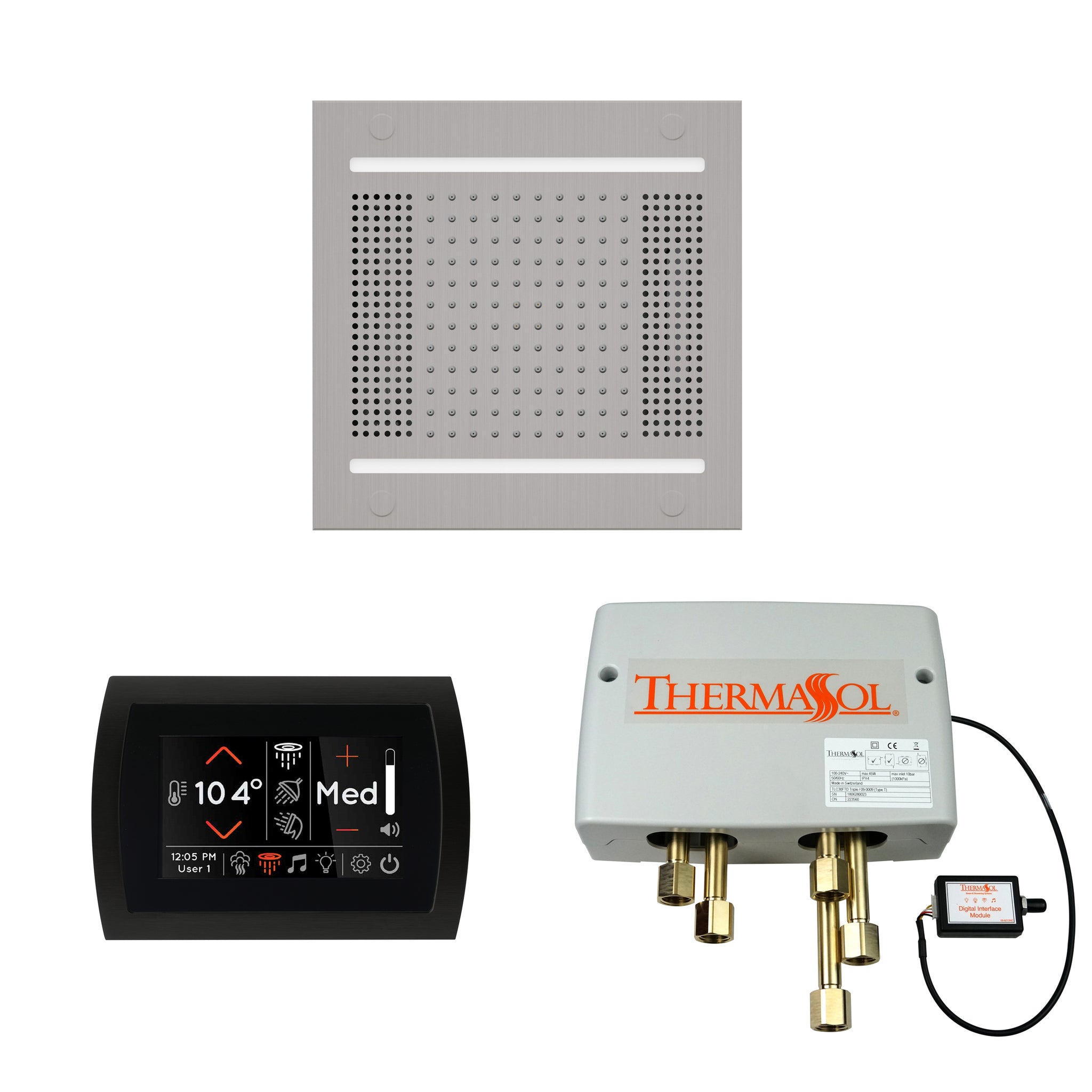

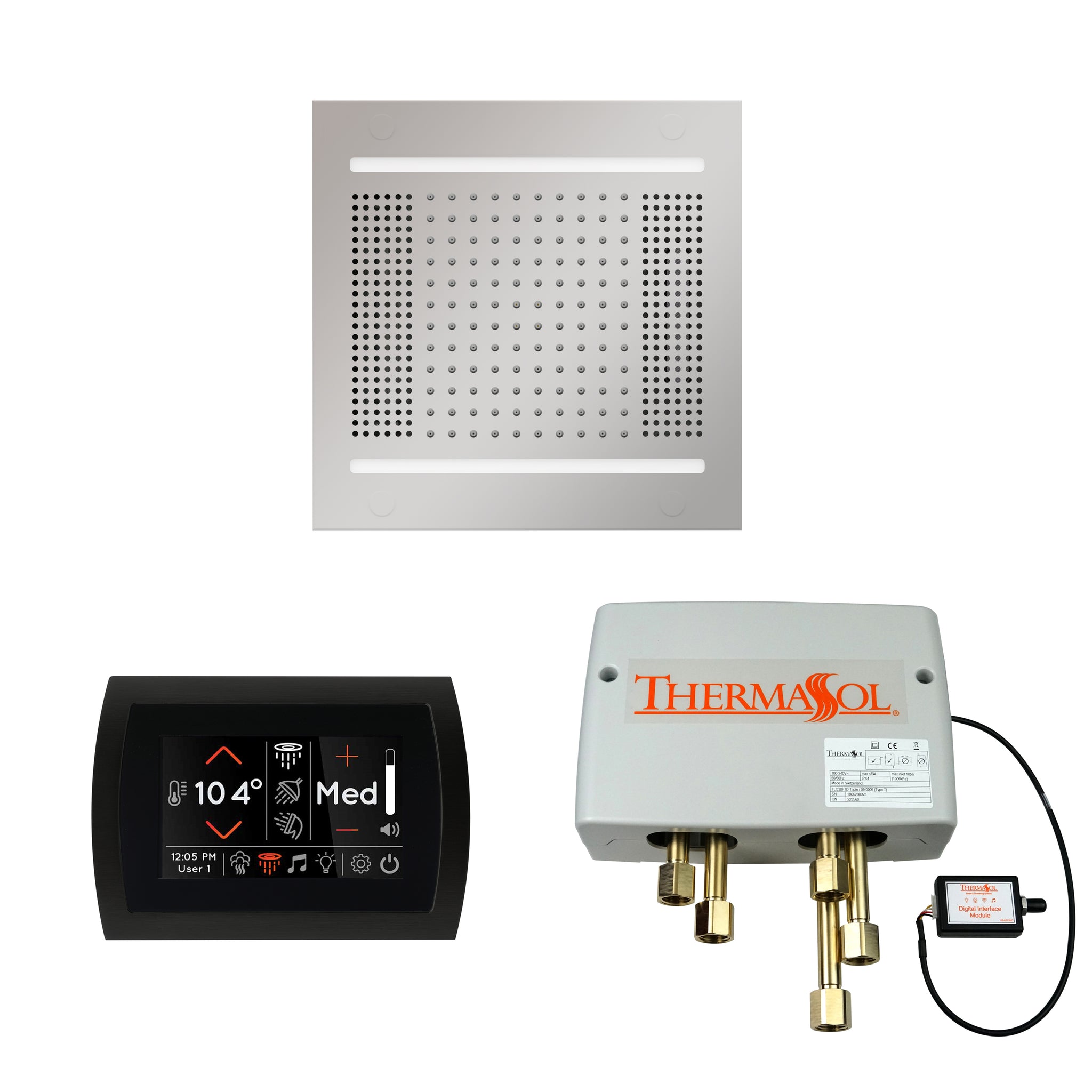

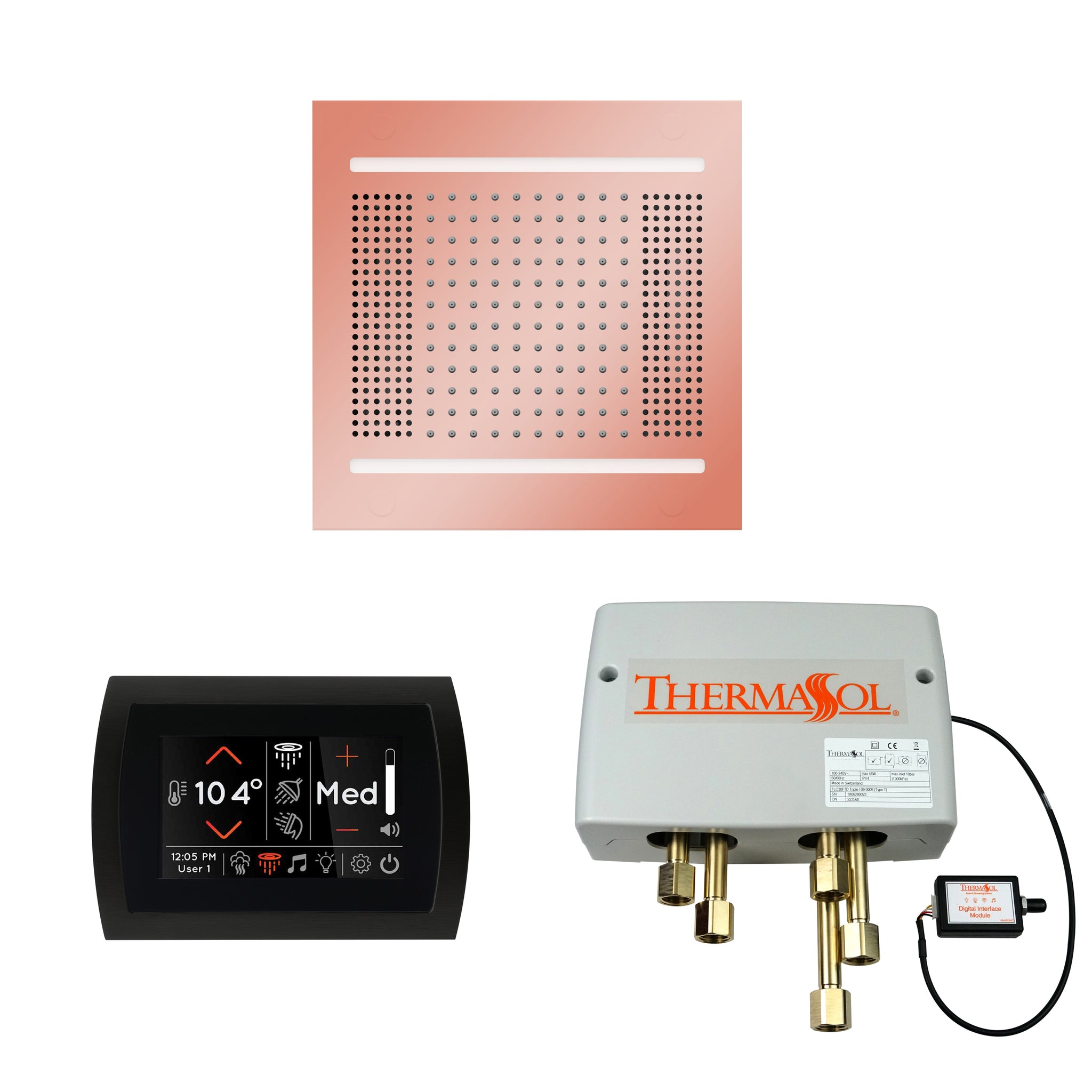

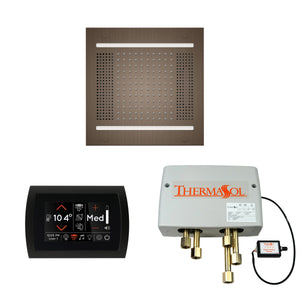

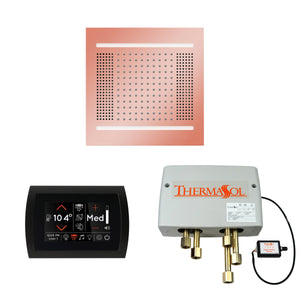

The Wellness Hydrovive14 Shower Package with SignaTouch Round

Model: WH14SPSR
Control: SignaTouch
Construction: Acrylic
Display: 5" Capacitive Touch Screen
Display Full Color: 16.7M
Display Resolution: 480 x 800
Interface: Single Touch
Shipping Weight: 1.25 lbs
Width: 5.7"
Depth: 1.25"
Height: 4.8"
Installation: In Shower
Model: Power Distribution Module
Construction: ABS Plastic
Power Supply: UL Listed Class 2 & 11, (03-7142)
Internal Operating Voltage: 24V DC, 60 Watt
Model: Digital Shower Valve
2 Inputs: 1/2" FNPT
3 Outputs: 1/2" FNPT
Power Supply:
Input: 110VAC, 0.5 Amps
Output: 15VDC, 3 Amps required
Shipping Weight: 10.65 lbs
Width: 11"
Depth: 3"
Height: 7"
Model: HydroVive 14
Construction Material: Machined Brass
Function Lights: 200 Full-color luminous LED
Water Supply: 3/8”, 40-80 PSI, 1.8GPM
Water Jets: 300
CEC Approved: Yes
Amplifier: 100Watt RMS
Digital Signal Processor: Built-In
Weight: 22 lbs
Width: 14"
Depth: 8"
Height: 14"

SignaTouch Control

- Flexible installation (vertical and horizontal)

- Steam Shower Control

- Operates Smart Shower Valve

- Operates HydroVive

- Operates Serenity Rainhead

- Touchscreen Control

- Steam time control

- Steam temperature control

- Memory Settings

- 2 Customizable User Settings

- Date display

- Time display

- Fahrenheit or Celsius Settings

Digital Shower Valve

- Precise temperature control

- Precise water volume control

- Eliminates exposed valves and trims

- Ceramic disc Fluhs

- 2 industrial grade stepper motors

- Solenoid valve systems

- Integrated diverter

- Three output valve

- IAPMO approved

HydroVive 14

- Ceiling mounted light, sound and rainhead system - all in a single self-contained module

- Lighting

- Full-spectrum LED Lighting

- 1600 lumens max

- 84 Full-color luminous LED (R,G,B,W)

- Color Changing “Mood Lighting”

- Preset Chromatherapy Chakras

- Custom user-programmable “any color”

- Audio

- Distortion-free sound

- Amplifier: 100Watt RMS,

- Built-in Digital Signal Processor

- Built-in Bluetooth v4.2

- 1" x 5" Full range dual driver speaker

- 1- 2” subwoofer module with tuned radiator

- Complete sound settings control

- volume

- treble

- mid-range

- bass

- 120 easy-clean neoprene jets

- 40-80 PSI

- 1.8GPM Water Jets

- CEC Approved

- Powered by:

- 24V DC

- 30 Watts power supply (provided)

- Designed, engineered, and crafted in the U.S.A

- Dimension: 14"W x 14"H

- 5 year replacement warranty (Limited Finish warranty)

- SignaTouch Control

- Power Distribution Module

- Digital Shower Valve

- HydroVive 14
