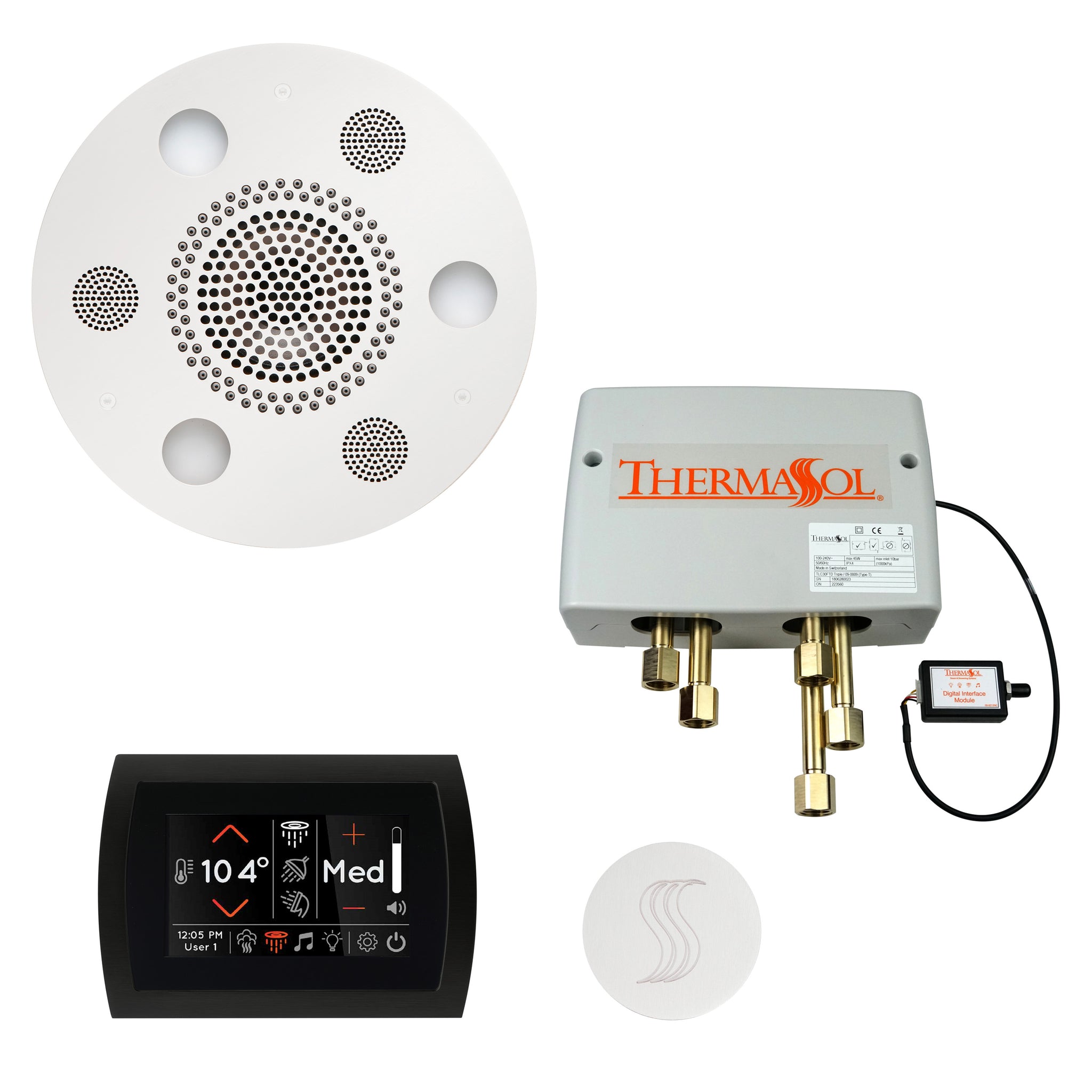

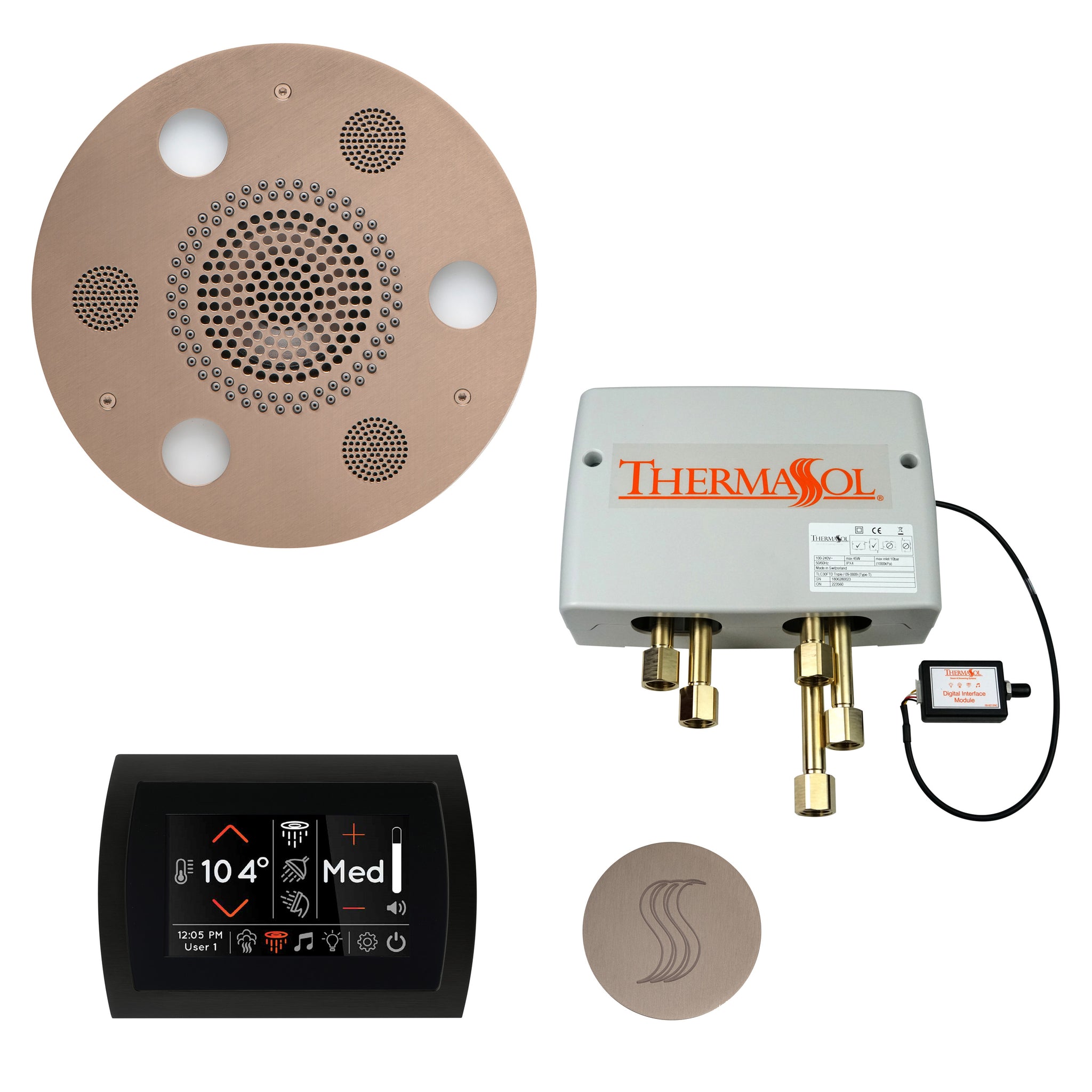

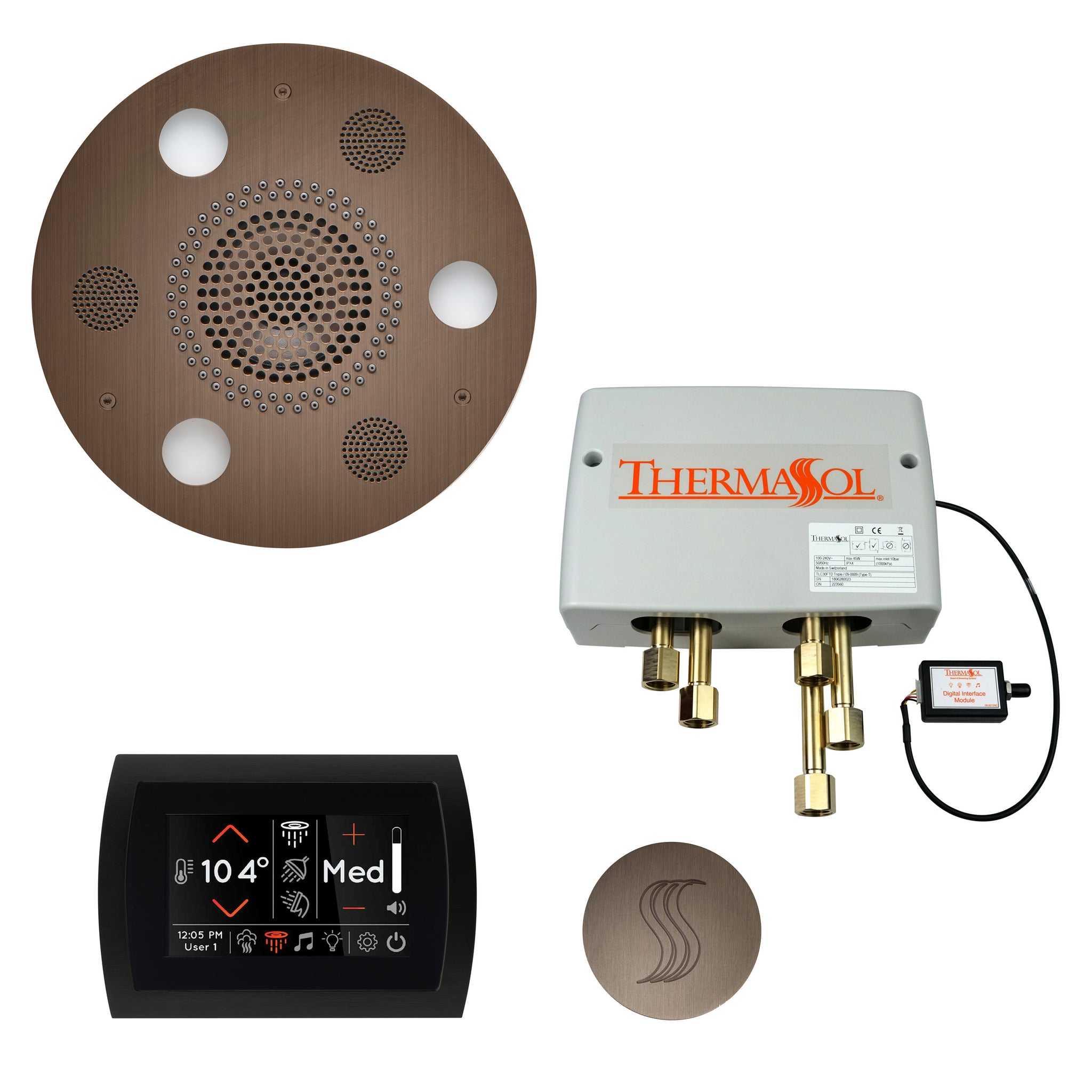

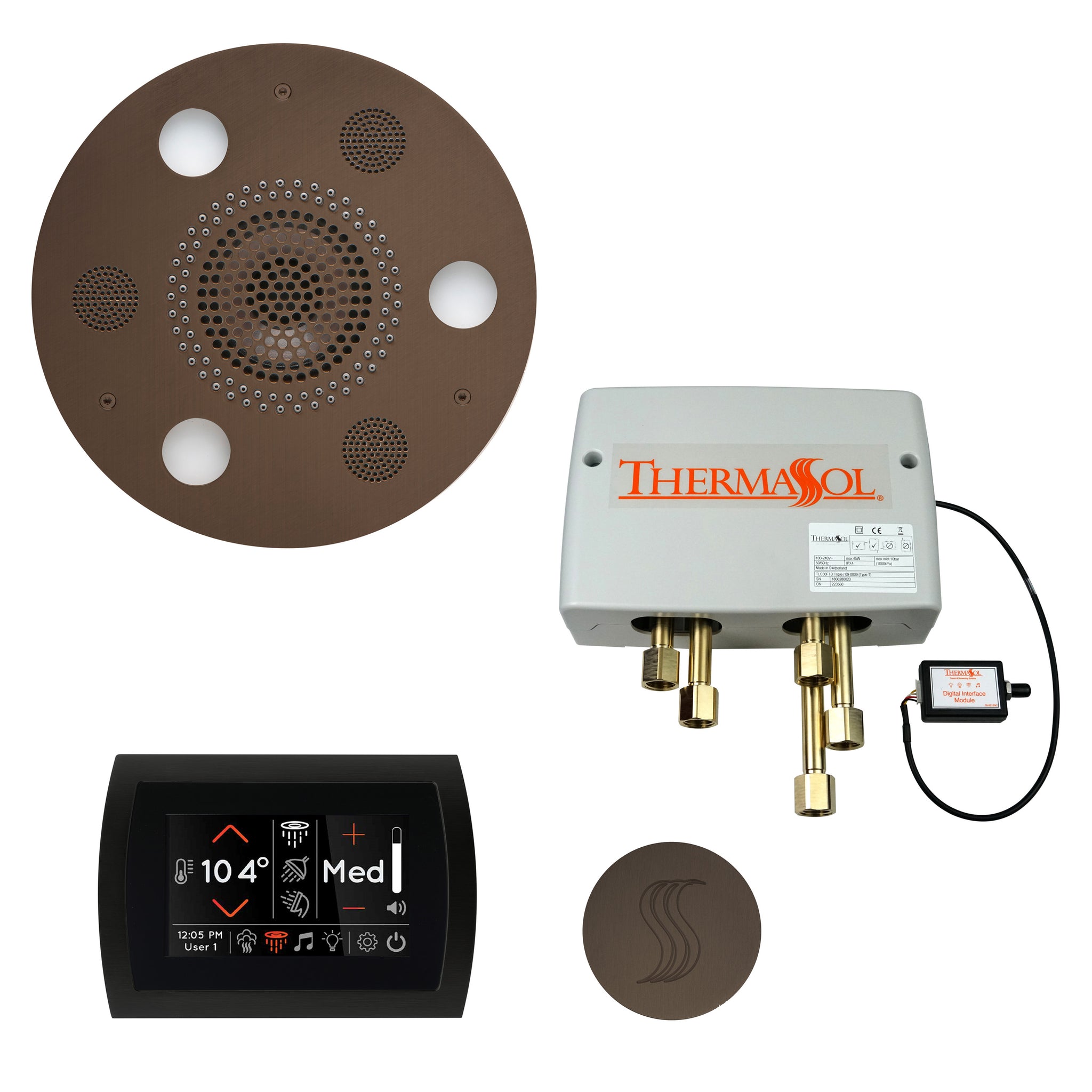

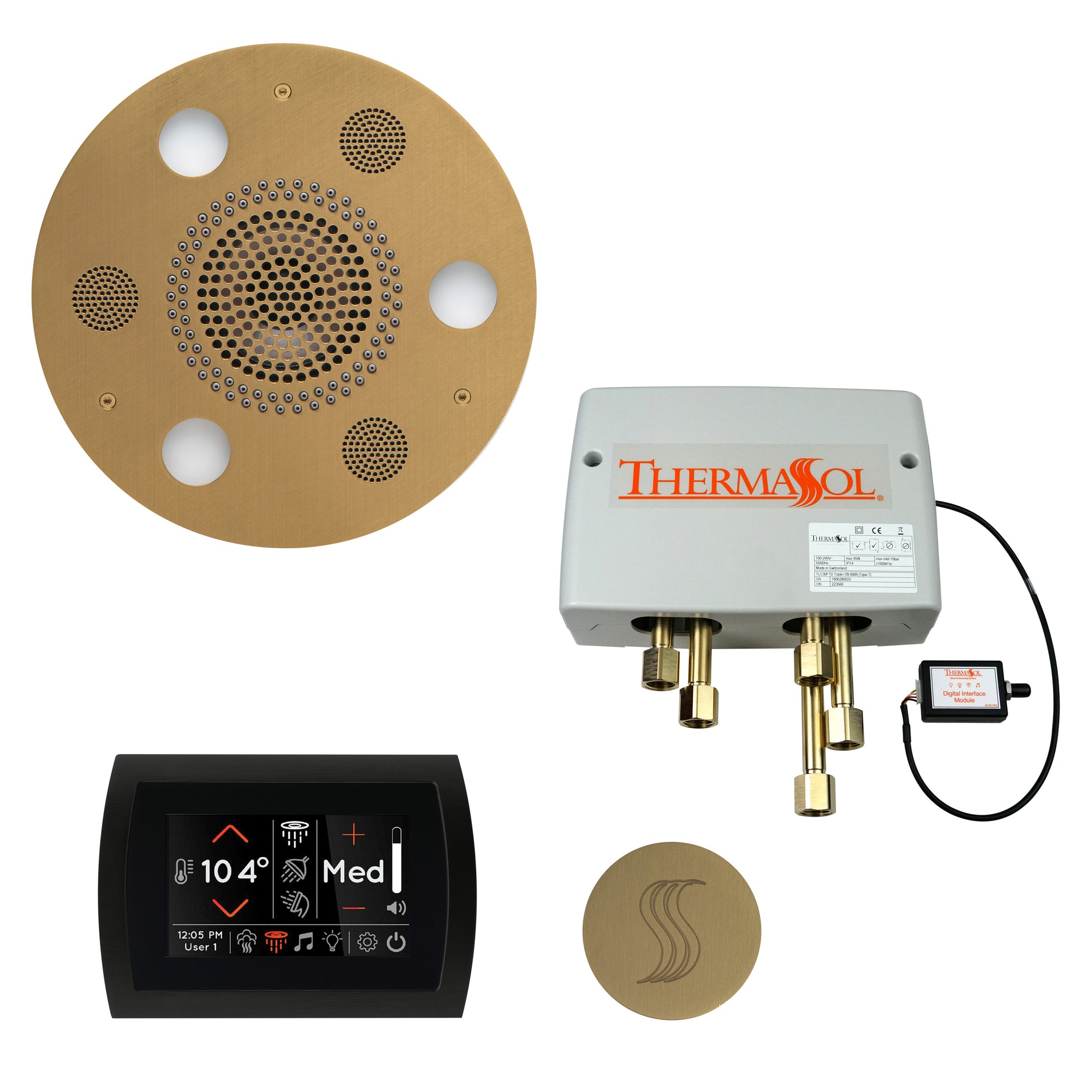

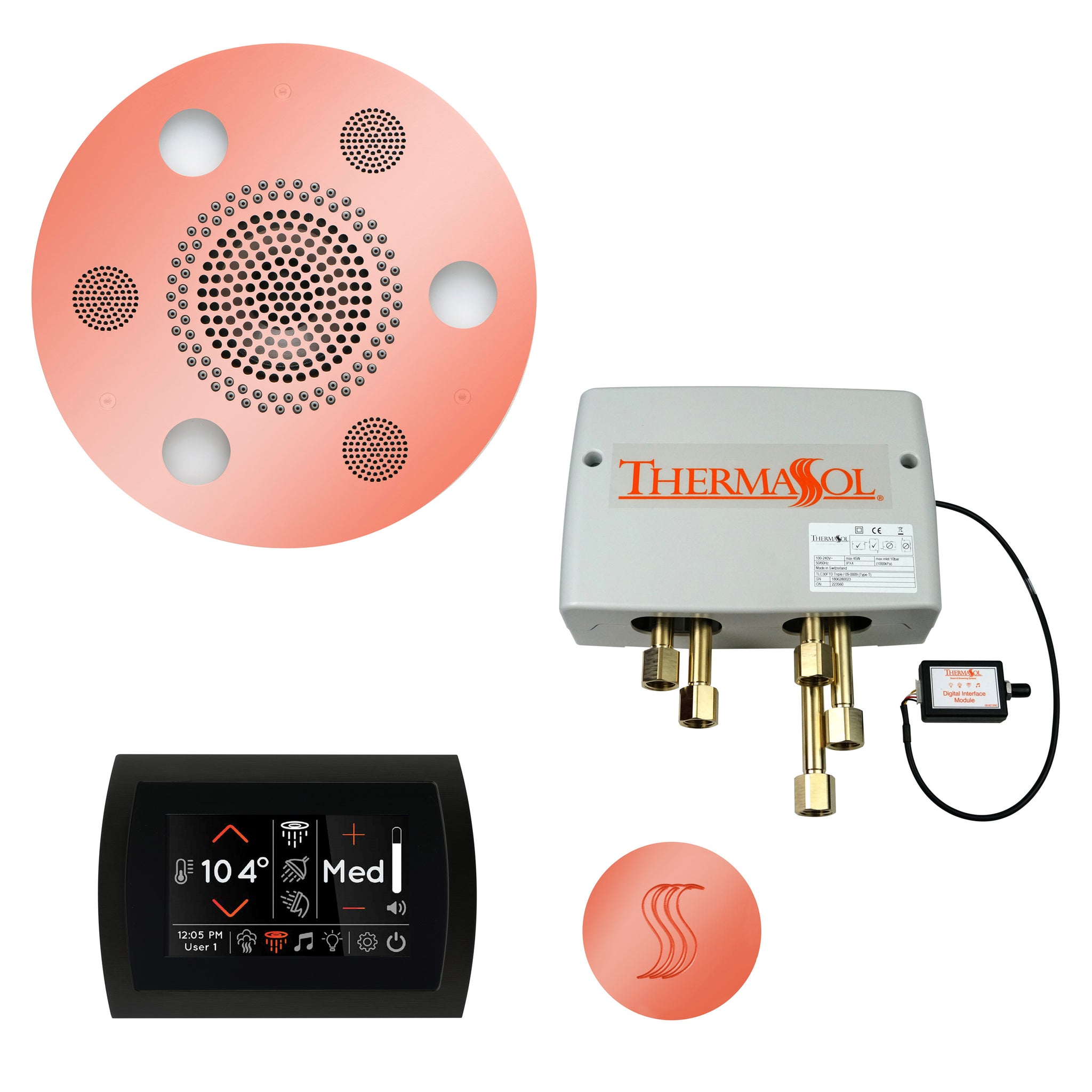

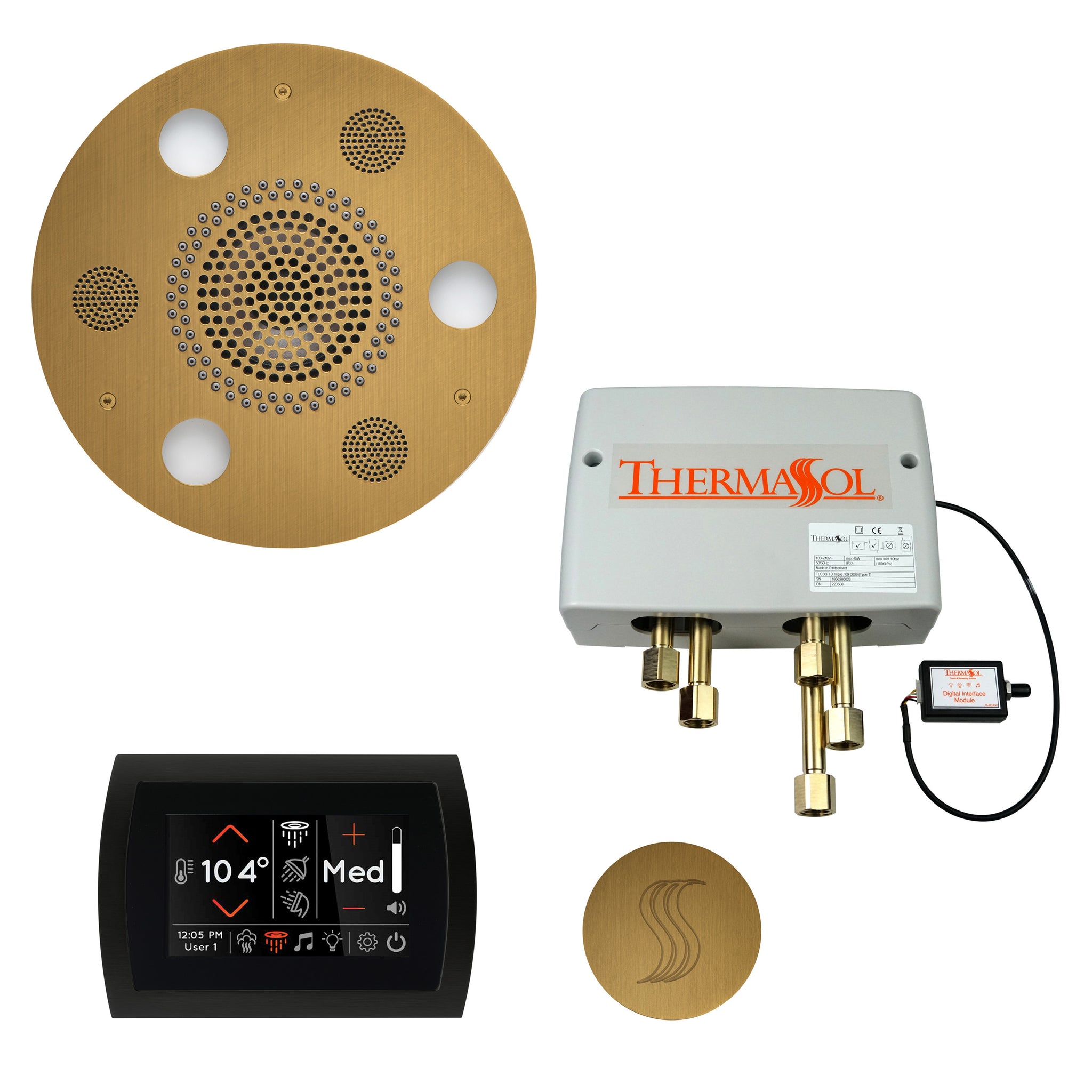

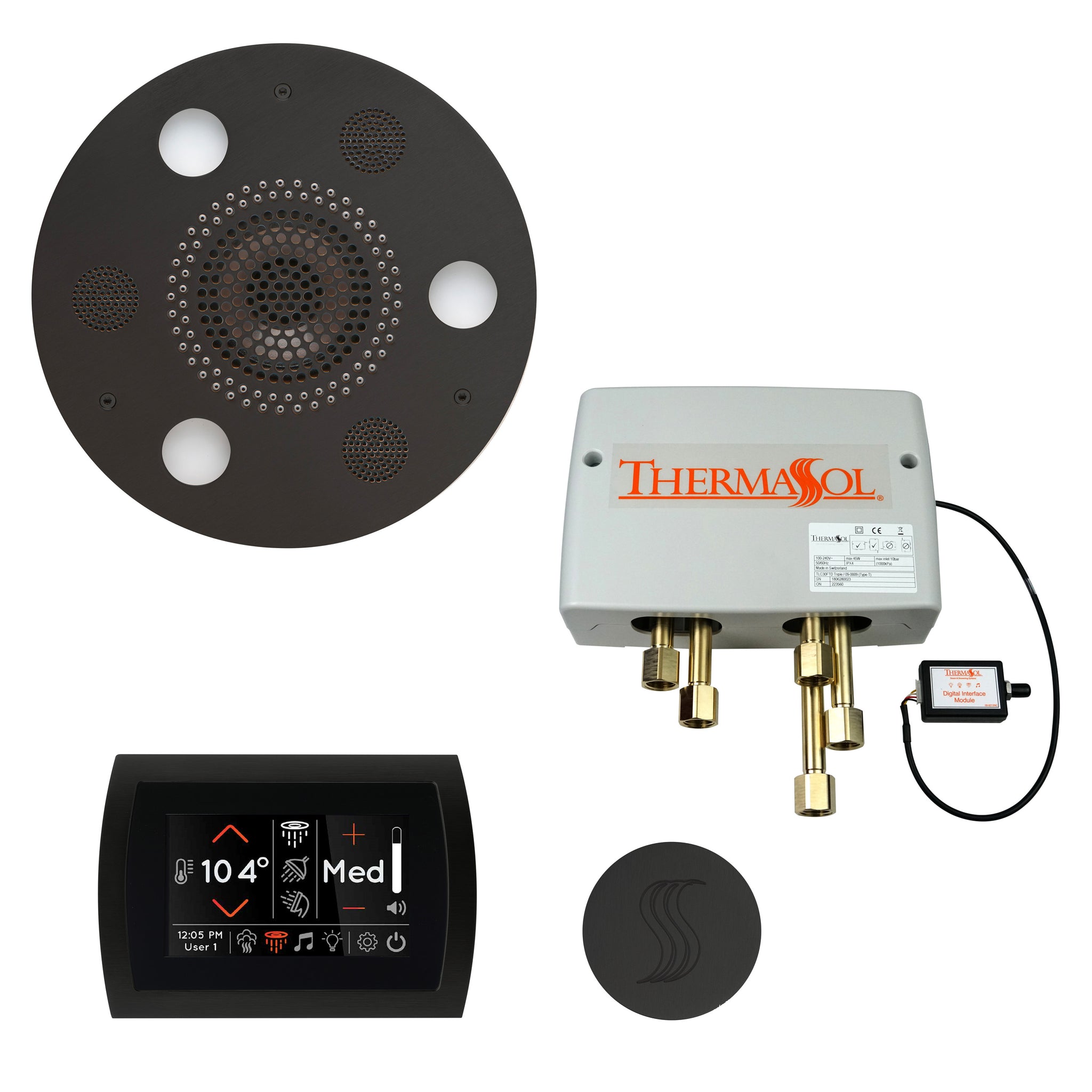

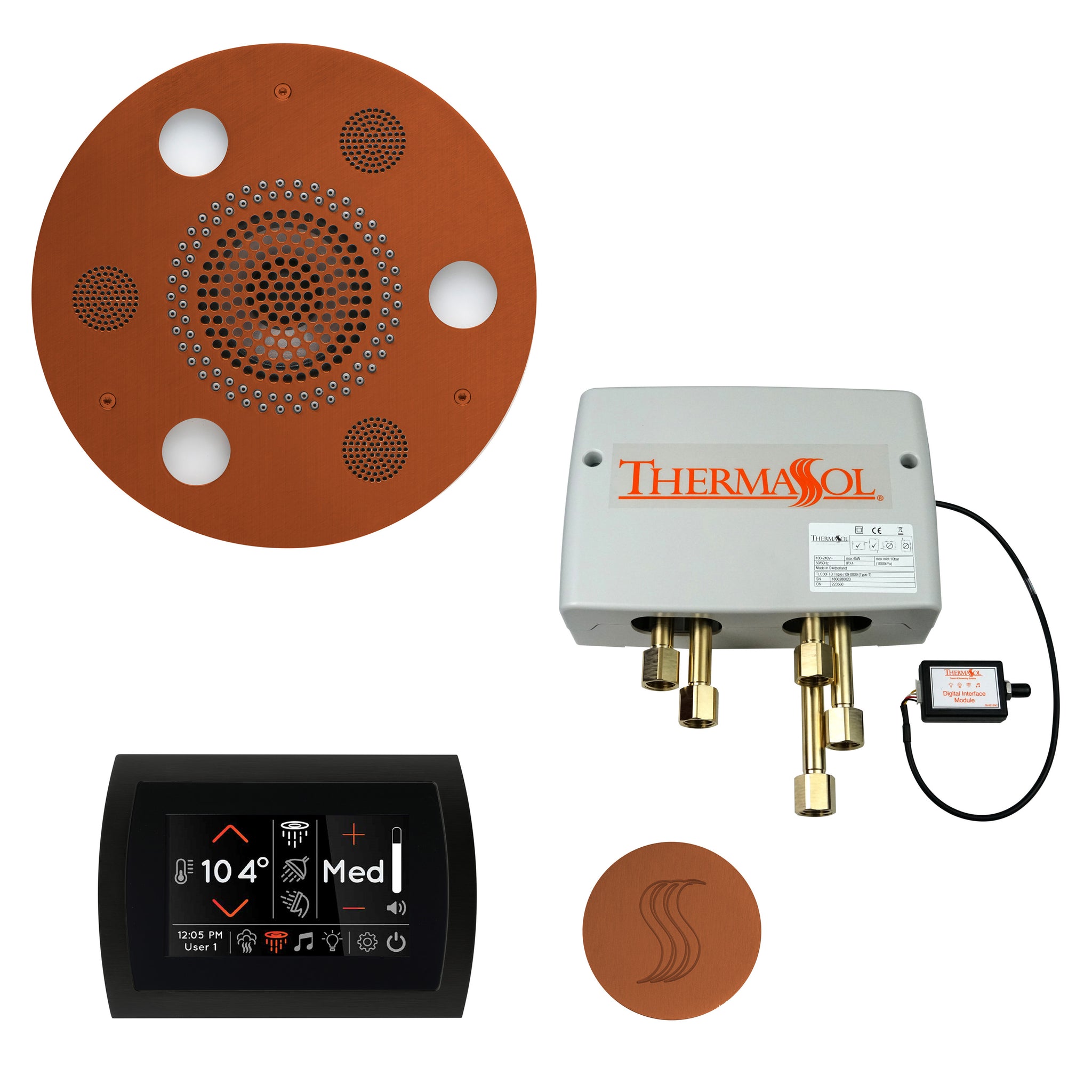

The Total Wellness Package with SignaTouch Round

Model: TWPSR
SignaTouch 5 Flushmount:
Construction: Black Acrylic
Display: 5" Capacitive Touch Screen
Display Full Color: 16.7M
Display resolution: 480 x 800
Interface: Single Touch
Shipping Weight: 1.25 lbs
Width: 5.7"
Depth: 1.25"
Height: 4.8"
Installation: In Shower
Digital Shower Valve:
2 Inputs: 1/2" FNPT
3 Outputs: 1/2" FNPT
Power Supply:
Input: 11VAC, 0.5 Amps
Output: 15VDC, 3 Amps required
Shipping Weight: 10.65 lbs
Width: 11"
Depth: 3"
Height: 7"
Serenity 10:
Construction: 6061 Billet Aluminum
Control Compatability: Signature, ThermaTouch, Signatouch
Function Lights: 18 High Power LED lights
Rainhead Water Supply: 3/8”, 40-80 PSI, 1.8GPM
CEC Approved: Yes
Powered by: 24V DC, 30 Watts power supply
Connection: 3/8" Compression
Width: 15"
Depth: 15"
Height: 14"
SteamVection:
Material: Brass Alloy
Connection: 1/2" NPT
Shipping Weight: 1 lb
Square Style Dimensions:
Width: 1.75"
Depth: 1.9"
Height: 1.75"
Round Style Dimensions:
Diameter: 1.75"
Depth: 1.9"

SignaTouch 5 Flushmount Control

- Contemporary (flushmount with the wall)

- Flexible installation (vertical and horizontal)

- 15 designer controls trims available

- Steam Shower Control

- Operates Smart Shower Valve

- Operates HydroVive

- Operates Serenity Rainhead

- Touchscreen Control

- Steam time control

- Steam temperature control

- Memory Settings

- 2 Customizable User Settings

- Date display

- Time display

- Fahrenheit or Celsius Settings

- Designed, engineered, and crafted in the U.S.A

- Dimensions: 5.7" W x 1.25" D x 4.8"H

- Lifetime Warranty (Parts and Labor - 2 years)

Digital Shower Valve

- Precise temperature control

- Precise water volume control

- Eliminates exposed valves and trims

- Ceramic disc Fluhs

- 2 industrial grade stepper motors

- Solenoid valve systems

- Integrated diverter

- Three output valve

- IAPMO approved

- Designed, engineered, and crafted in the U.S.A

- Dimensions: 11"W x 3"D x 7"H

- 5 year warranty

Serenity 10

- 2 rows of 82 jets

- Gentle falling water sensation

- Mood lighting mode generates a soothing spectrum of color

- Total estimated luminous flux at full brightness is 684 lumens

- 15 designer finishes available

- Round style

- Works with Signature Series control (sold separately) to control light and sound

- Works with Signatouch and ThermaTouch (sold separately) to control light, sound and water when paired with Digital Control Valve (sold separately)

- High-performance trilinear sub-woofer

- High-frequency drivers

- High-efficiency class D amplifier

- Ceiling mounted single self-contained module

- System can be installed without access from above

- Designed, engineered, and crafted in the U.S.A

- Dimensions: 15" W x 15" D x 14"H

- Lifetime Warranty (Parts and Labor - 2 years)

- Lighting

- Full-spectrum LED Lighting

- 1600 lumens max

- 200 Full-color luminous LED (R,G,B,W)

- Color Changing “Mood Lighting”

- Preset Chromatherapy Chakras

- Custom user-programmable “any color"

- Audio

- Multi-Channel Hi-Power Mosfet Amplifier

- Built-in Subwoofer

- High-frequency Tweeters

- Voice Response Feedback

- Bluetooth module

- RCA audio input

SteamVection Steamhead

- Floor to ceiling consistent temperature

- Brass alloy material

- Round style

- 15 designer finishes available

- Whisper quiet

- Essential oil well for aromatherapy (sold separately)

- Designed, engineered, and crafted in the U.S.A

- Dimensions: 1.75"W x 1.9"D x 1.75"H (Square) 1.75"Diameter x 1.9"Depth (Round)

- 5 year warranty

SignaTouch 5 Flushmount Control

- SignaTouch control

- Silicone

- Mud ring

- Installation instructions

- Warning label

- Warranty

Digital Shower Valve

- Digital Shower Valve

- Screw set

- Connection nipple set

- CAN-bus cable 50ft'

- Digital interface

- Back up battery

- Installation manual

- Warranty

Serenity 10

- Serenity 10 SLSR Rainhead system

- 25-foot Audio Cable

- 25-foot Yellow M12 Cable

- Silicone

- Bluetooth Module

- Installation instructions

SteamVection Steamhead

- SteamVection steam head

- Silicone

- Lubricant

- Installation manual

- Warranty
