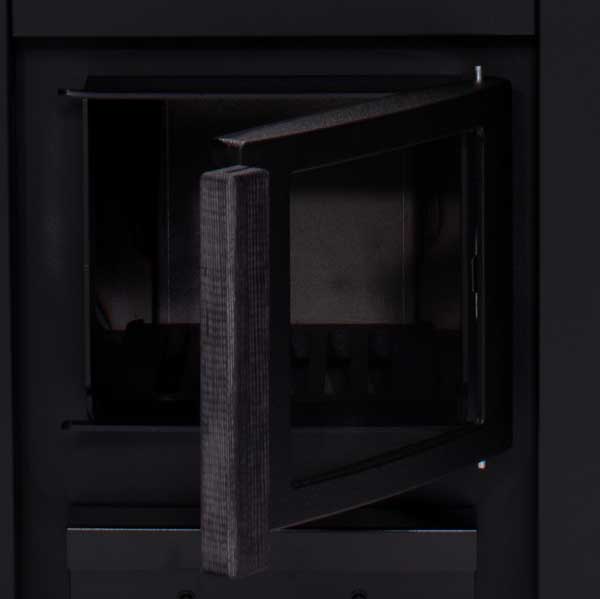

Narvi Kaamos Stove Door Only

Narvi Kaamos Stove Door Replacement Guide

Product ID: 152267

1. Door Specifications

• Material: 5mm cast iron with ceramic glass insert

• Standard Size: 320mm × 280mm (varies by model year)

• Glass Size: Typically 190mm × 168mm (4mm ceramic)

• Gasket Type: 8mm fiberglass rope (black)

3. Critical Compatibility Notes

• Hinge Alignment:
  Kaamos doors use asymmetric hinges (top/bottom differ)

• Air Control:
  Later models (post-2018) have dual air vents

• Glass Retention:
  Uses spring-loaded clamps (not screw-on)

4. Installation Steps

1. Remove Old Door

   • Lift straight up to disengage hinges

   • Preserve hinge pins for reuse

2. Prepare New Door

   • Season cast iron with stove polish

   • Install new gasket (pre-stretch 10%)

3. Hang New Door

   • Align bottom hinge first

   • Test closure with dollar bill test

5. Alternative Solutions

• Custom Fabrication:
  Local foundries can replicate if OEM unavailable (~€400-600)

• Temporary Repair:
  Use Rutland stove putty for minor cracks

6. Price Range

• Complete door assembly: €280-420

• Door only (no glass/gaskets): €180-250

Need exact verification? Provide:

1. Serial number (backplate)

2. Photo of your current door

3. Hinge close-up

I'll confirm the correct replacement! 🔥
