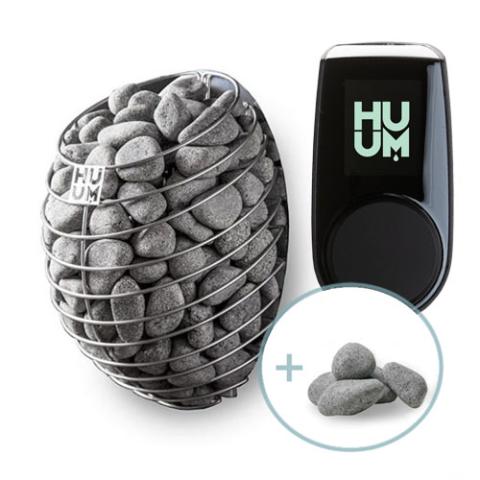

DROP Series 7.5kW Sauna Heater Package

Model: DROP 7.5STU Pkg

DROP 7.5:
- Kilowatt Rating: 7.5 kW
- Minimum Cubic Feet: 247 CF
- Maximum Cubic Feet: 424 CF
- Heater Weight: 25 lbs
- Shipping Weight with Sauna Stones: 157 lbs
- 240V, Single Phase Amperage: --
- Circuit Breaker Amperage: --
- Wire Size: --
- Width: 15" (390 mm)
- Depth: 13" (335 mm)
- Height: 23" (590 mm)

UKU:
- Minimum Temperature Setting: 104°F
- Maximum Temperature Setting: 230°F
- Shipping Weight: 20 lbs

Console Dimensions:
- Width: 2.2" (55 mm)
- Depth: 0.9" (22 mm)
- Height: 4.1" (105 mm)

Main Module Dimensions:
- Width: 3.5" (90 mm)
- Depth: 2.3" (58 mm)
- Height: 5.6" (142 mm)

Display Panel Cable:
- Length: 9.8 ft
- AWG: 22

Temperature Sensor Cable:
- Length: 16.4 ft
- AWG: 24

Door Sensor Cable:
- Length: 16.4 ft
- AWG: 24

DROP 7.5kW Sauna Heater

• Unique water drop design
• 240V/1PH operation
• For sauna rooms from 247 to 424 cu. ft.
• Works with UKU controls (sold separately)
• 122 pound stone capacity (required 4 boxes sold separately)
• Direct contact between stones and heating elements

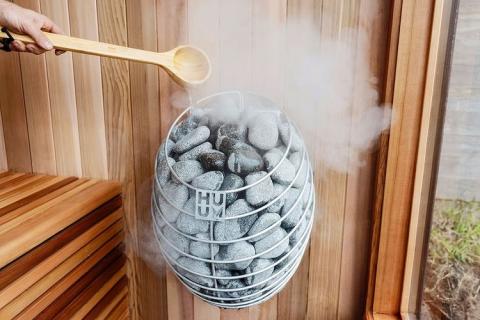

• More exposed stones create a longer and milder heat
• Stainless steel construction
• Stainless steel, industrial quality heating elements​

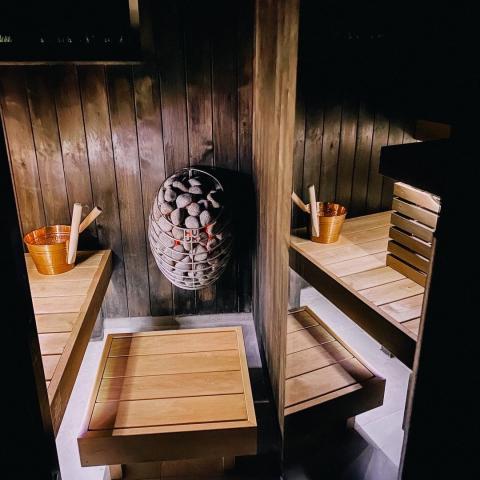

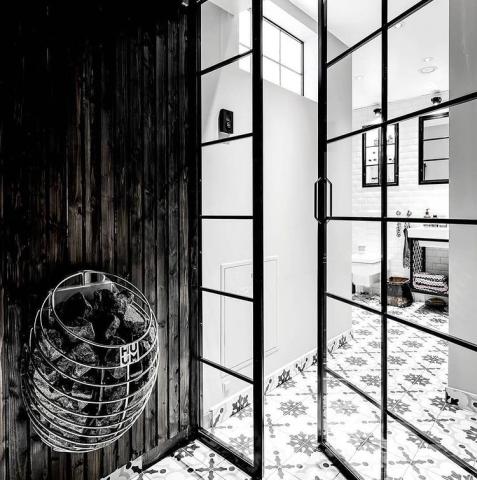

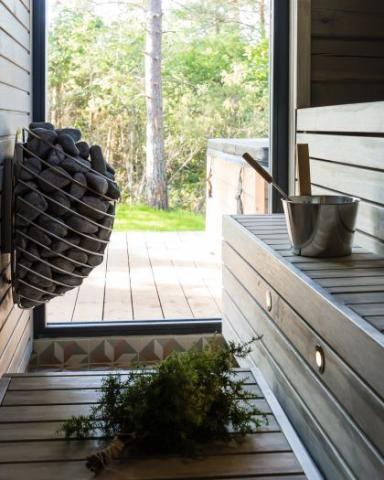

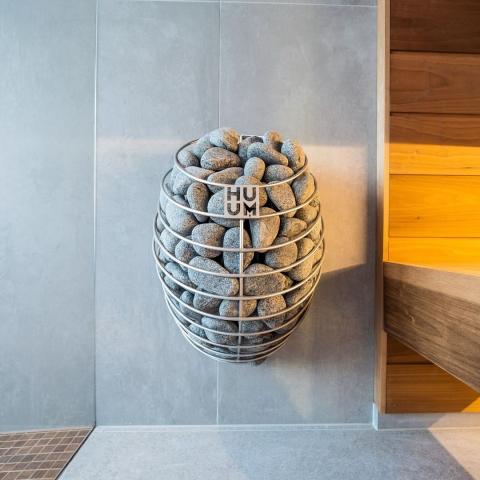

• Wall-mounted design
• Designed, engineered, and made in Estonia
• Dimensions: 15"W (390mm) x 13"D (335mm) x 23"H (590mm)
• SGS Listed
• Limited 5-year warranty (excluding elements)

UKU

• Sleek Black control display panel

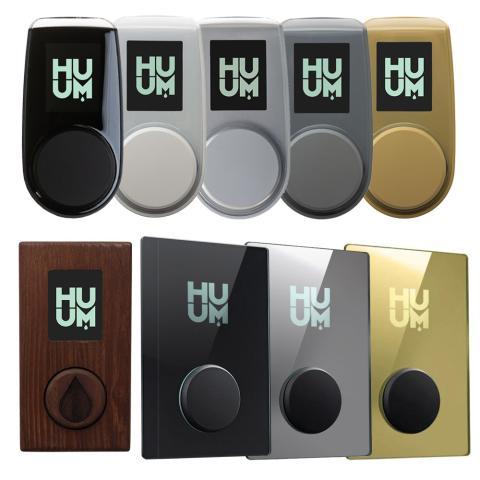

• Multiple Color Options available (additional charges apply)
• Settable on/off, time, temperature, and delay
• Settable temperature range of 104-230F
• Delayed start up to 48hrs in advance
• Optional Built-in Wi-Fi interface for HUUM mobile app (additional charges apply)
• 8 Language options: English, German, Russian, Italian, Finnish, Estonian, Polish and French
• Inside/outside sauna room installation
• Optional smart heating setting
• Available decorative control display panels
• Displays set temperature and room temperature
• Temperature sensor
• Door sensor to keep the heat inside the room
• Remotely located main control module
• Connects to lights and ventilation
• Overheat protection
• Child safety lock
• Control Console Dimensions: 2.2"W (55mm) x 0.9"D (22mm) x 4.1"H (105mm)
• Main Control Module Dimensions: 3.5"W (90mm) x 2.3"D (58mm) x 5.6"H (142mm)

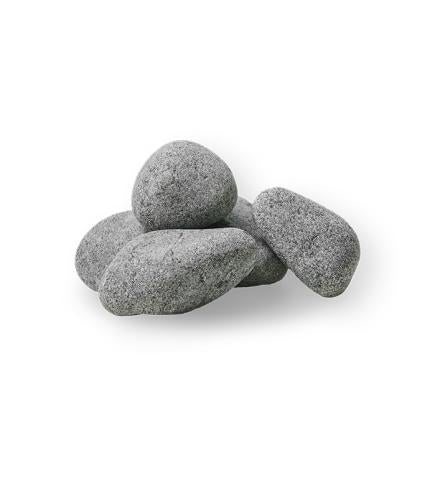

Stones 24

• Olivine diabase sauna stones
• Rounded shape to complement heater design
• Durable with high-heat capacity
• Stones range from 2" to 4" (5-10 cm)

DROP 7.5kW Sauna Heater

• 7.5kW Sauna heater
• Wall-mount bracket
• Installation and operation manual
• 5-Year limited warranty

UKU

• Black Control console
• Main control module
• Temperature sensor
• Door sensor
• Control display panel cable
• Temperature sensor cable
• Door sensor cable
• Installation and operation manual
• 5-Year limited warranty

Stones 24

• 132 lbs of 2" - 4" (5-10 cm) round Olivine sauna stones
