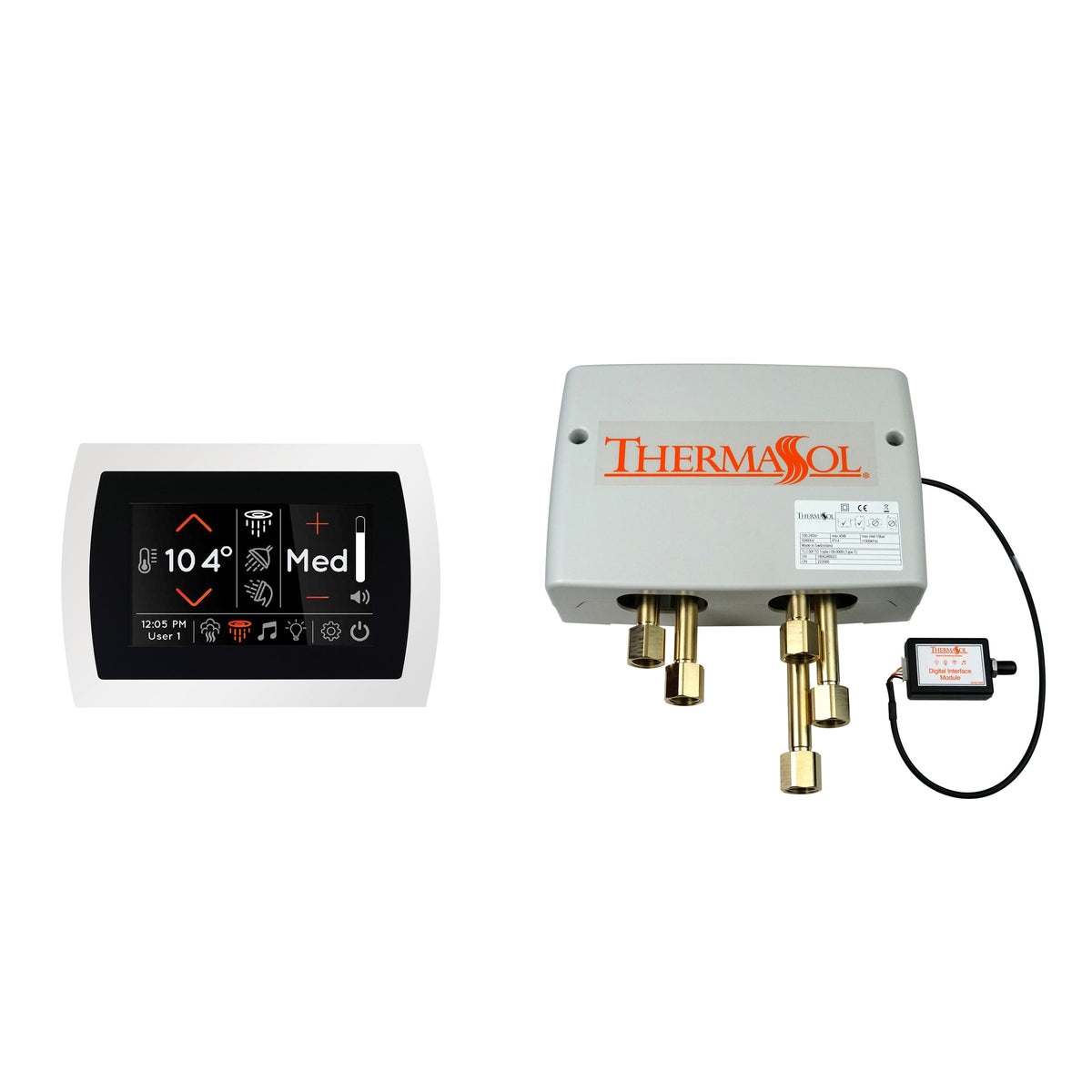

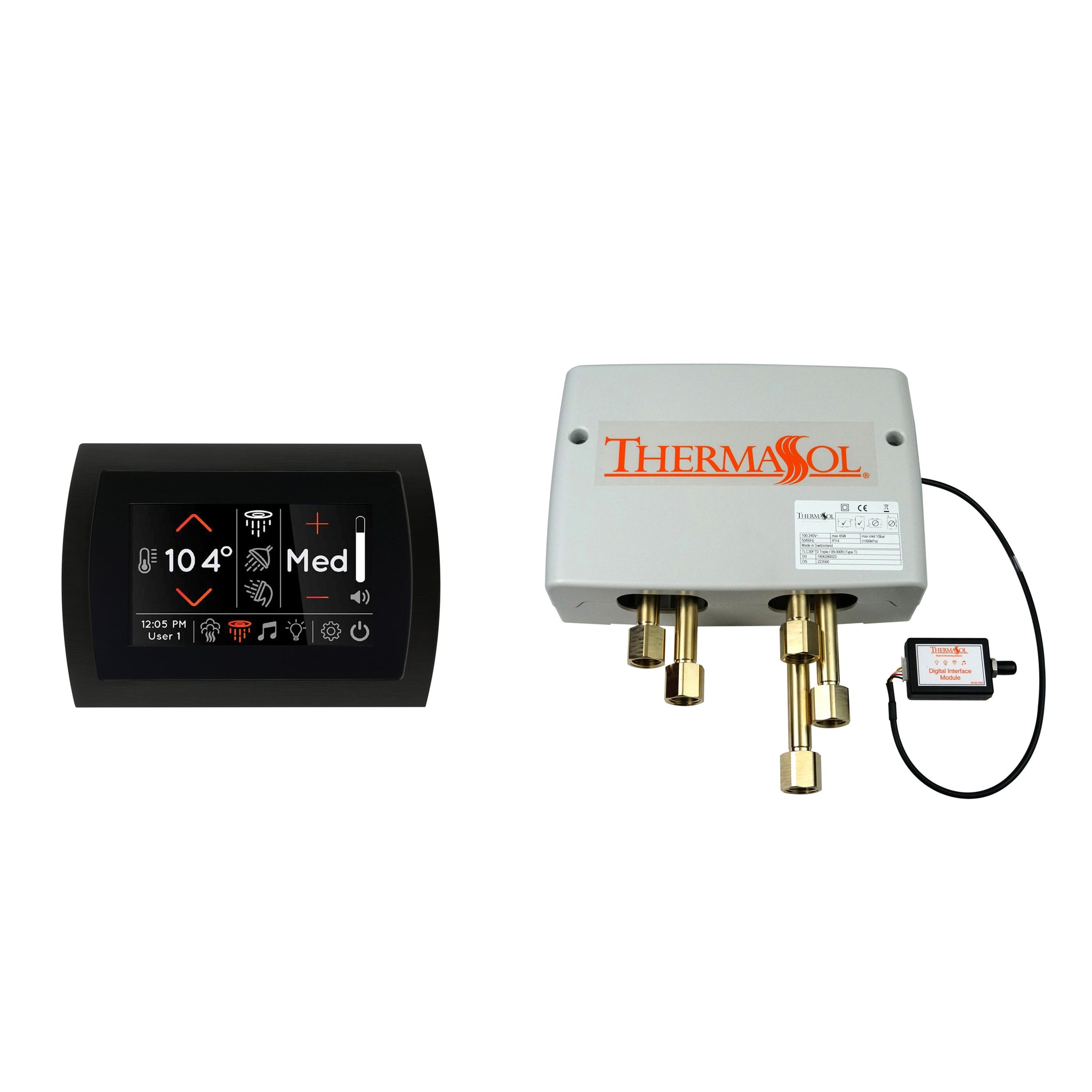

The ThermaSol DSP-SIG is a shower package including SignaTouch 5" LCD Control and a Digital Shower Valve. Customizable for up to two different user settings. Control trim available in black or white.
Steam generator not inlcuded.
Model: DSP-SIG
Model: STC
Construction: Black Acrylic
Display: 5" Capacitive Touch Screen
Display Full Color: 16.7M
Display resolution: 480 x 800
Interface: Single Touch
Shipping Weight: 1.25lbs
Width: 5.7"
Depth: 1.25"
Height: 4.8"
Installation: In Shower
Model: Digital Shower Valve
2 Inputs: 1/2" FNPT
3 Outputs: 1/2" FNPT
Power Supply:
Input: 11VAC, 0.5 Amps
Output: 15VDC, 3 Amps required
Shipping Weight: 10.65 lbs
Width: 11"
Depth: 3"
Height: 7"
SignaTouch Control
- Modern Square (recessed into the wall)
- Flexible installation (vertical and horizontal)
- Steam Shower Control
- Operates Smart Shower Valve
- Operates HydroVive
- Operates Serenity Rainhead
- Touchscreen Control
- Steam time control
- Steam temperature control
- Memory Settings
- 2 Customizable User Settings
- Date display
- Time display
- Fahrenheit or Celsius Settings
- Designed, engineered, and crafted in the U.S.A
- Dimensions: 5.7" W x 1.25" D x 4.8"H
- Lifetime Warranty (Parts and Labor - 2 years
Digital Shower Valve
- Precise temperature control
- Precise water volume control
- Eliminates exposed valves and trims
- Ceramic disc Fluhs
- 2 industrial grade stepper motors
- Solenoid valve systems
- Integrated diverter
- Three output valve
- IAPMO approved
- Designed, engineered, and crafted in the U.S.A
- Dimensions: 11"W x 3"D x 7"H
- 5 year warranty
SignaTouch Control
- SignaTouch control
- Silicone
- Mud ring
- Installation instructions
- Warning label
- Warranty
Digital Shower Valve
- Digital Shower Valve
- Screw set
- Connection nipple set
- CAN-bus cable 50ft'
- Digital interface
- Back up battery
- Installation manual
- Warranty
