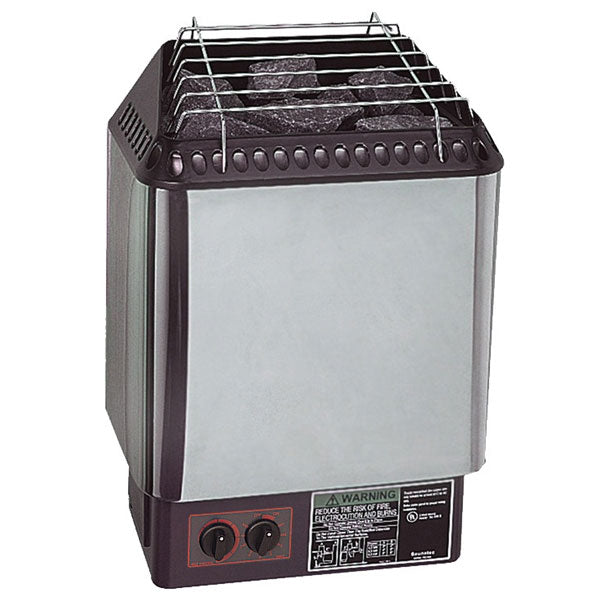

Designer B 4.5KW Sauna Heater with Rocks

Designer-B Sauna Heater - Technical Specifications

Professional-Grade Electric Heater with Built-In Controls

Product ID: 9053-202

🔥 HEATER PERFORMANCE

• Heat-Up Time: 30-45 mins (depending on room size)

• Stone Capacity: 50 lbs (22.7 kg) of olivine diabase

• Thermal Cutoff: Auto-reset at 194°F (90°C)

📐 PHYSICAL DIMENSIONS

• Size: 16.5" W × 23" H × 11" D (42×58×28 cm)

• Weight: 55 lbs (25 kg) empty / 105 lbs (48 kg) loaded

• Mounting: Wall-mounted (steel bracket included)

⏱️ CONTROL SYSTEM

• "9+1" Timer:

  • 9-hour delay start

  • 1-hour continuous increments (max 9 hours)

• Mounting Options:

  • Standard: Front-bottom

  • Alternate: Left/right side

• Safety Features:

  • Child lock

  • Overheat protection

⚡ ELECTRICAL REQUIREMENTS

• Circuit Needed:

  • 4.5 kW: 20A dedicated

  • 6.0 kW: 30A dedicated

  • 8.0 kW: 40A dedicated

• Wiring: 8 AWG copper (6 AWG for 8 kW over 50')

🛠️ INSTALLATION NOTES

1. Clearances:

   • 24" from benches

   • 18" from ceiling

   • 6" side/rear clearance

2. Venting:

   • Requires 4" air gap below door

   • No external ventilation needed

3. Stones:

   • Use only 1.5-3" diameter sauna stones

   • Stack loosely for optimal airflow

✅ INCLUDED COMPONENTS

1. Heater unit with controls

2. Wall mounting bracket

3. Stone guard

4. Installation manual

⚠️ CRITICAL WARNINGS

• Not for: Steam rooms or outdoor use

• Must be installed by licensed electrician

• Test before use: Verify no exposed wires contact stones

💡 PRO TIPS

✔ For cedar saunas: Set max temp to 185°F (85°C)
✔ Energy Saving: Use delay timer during off-peak hours
✔ Maintenance: Vacuum dust annually from heating elements

🛒 ORDERING INFORMATION

Models Available:

• Designer-B 4.5 (SKU: DB-45) - $899

• Designer-B 6.0 (SKU: DB-60) - $1,099

• Designer-B 8.0 (SKU: DB-80) - $1,299

Where to Buy:

• Specialty sauna retailers

• Electrical supply distributors

📞 Support: Includes free technical drawings for electricians.

"The preferred heater for custom home saunas - combines professional performance with residential convenience."
