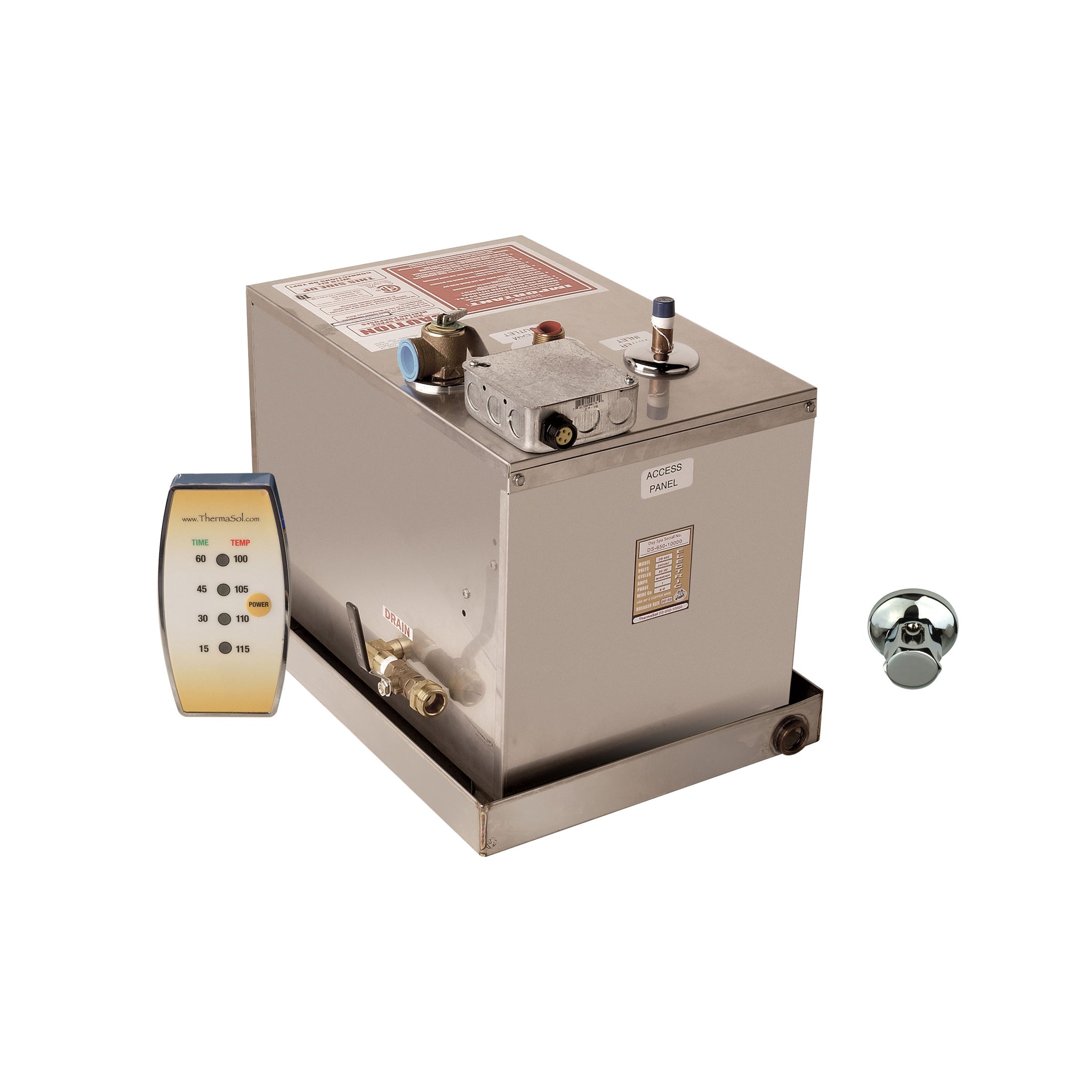

The ThermaSol DS-150 is a 10kW steam shower generator that is designed for day spa and hotel steam rooms and can service up to 4 steam shower enclosures with combined dimensions of up to 600 adjusted cubic feet (ACF).
Model: DS-150
Minimum Adjusted Cubic Feet: 90
Maximum Adjusted Cubic Feet: 600
Kilowatt Rating (KW): 10 KW
Shipping Weight: 46 lbs
Water Supply Connection: 3/8" NPT
Generator Steam Line Connection: 1/2" NPT
Steam Head Connection: 1/2" NPT
Safety Relief Valve Connection: 3/4" NPT
Safety Relief Valve PSIG: 15 PSIG
Control "Rough In" Cut Out: 1-1/16"
Generator Control Connection: 6 Pin, Snap-In Connector
Generator Control Cable: 50', 6 Conductor, 22 AWG, Shielded Cable
Width: 18-3/4"
Depth: 13-3/4"
Height: 16"
Number of Rooms: 2, 3, or 4 (DS-2-150=2 rooms, DS-3-150=3 rooms, DS-4-150=4 rooms)
- Industrial grade, serviceable heating element
- Non-pressurized vessel
- Operates two, three, or four steam room environments
- Integral drain pan with 3/4" NPT fitting
- Stainless steel design inside and out
- Durable electronic components
- Can be installed up to 50 feet from the room
- Hardware Kit provided
- Large capacity tank size
- CSA/CUL listed
- ASME safety valve
- 1 Generator
- In-Room Controls (2,3, or 4)
- Commercial Steamheads (2,3, or 4)
- Installation manual
- Limited Warranty
