$69.00
Industrial-Grade Protection for Critical Equipment
Absolute Rating: 20 microns (captures 99.7% of particles ≥20µ)
Media: Multi-layer synthetic fiber matrix with:
✓ Antimicrobial treatment – Inhibits bacterial growth
✓ Electrostatic charge – Enhances particle adhesion
Beta Ratio (βₐ₂₀): ≥200 (ISO 16889 certified)
✔ Equipment Safeguard – Prevents wear on pumps, valves, and heat exchangers
✔ Process Integrity – Maintains fluid purity in pharmaceutical/food-grade applications
✔ Energy Efficiency – Reduces system pressure drop by 30% vs standard filters
| Parameter | Specification |
|---|---|
| Max Pressure | 150 psi (10.3 bar) |
| Temp Range | -20°C to 120°C (-4°F to 248°F) |
| Flow Rate | 30 GPM @ 20 psi ΔP (113.5 L/min) |
| Dirt Holding Capacity | 28g (ISO 19438) |
| Feature | Premium 20µ Filter | Standard 50µ Filter |
|---|---|---|
| Particle Capture | 99.7% at 20µ | 90% at 50µ |
| Service Life | 2-3x longer | Requires frequent changes |
| Microbial Control | Built-in antimicrobial | None |

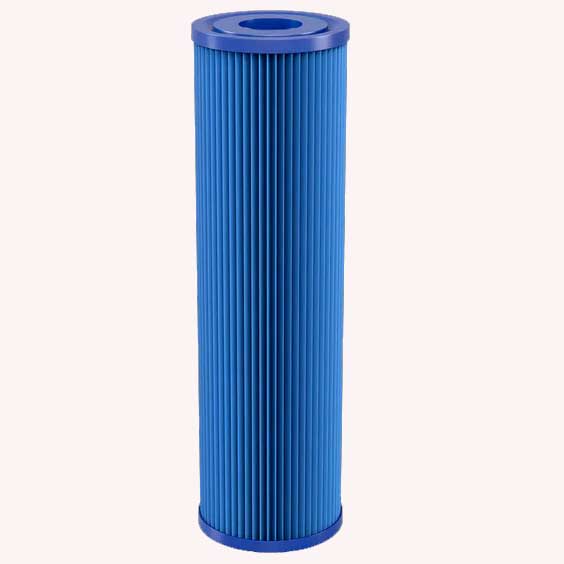

Cartridge Design: Quick-change twist-lock system
Replacement Indicator: Color-changing end cap when saturated
Cleaning: Backflush compatible (up to 5 cycles)
Industrial: Hydraulic systems, CNC coolant
Commercial: Pool pumps, HVAC chillers
Residential: Well water, spa equipment
| Model | Dimensions | Connection |
|---|---|---|
| PF-20A | 10"L x 2.5"Dia | 1" NPT |
| PF-20B | 20"L x 4.5"Dia | 1.5" Tri-clamp |
