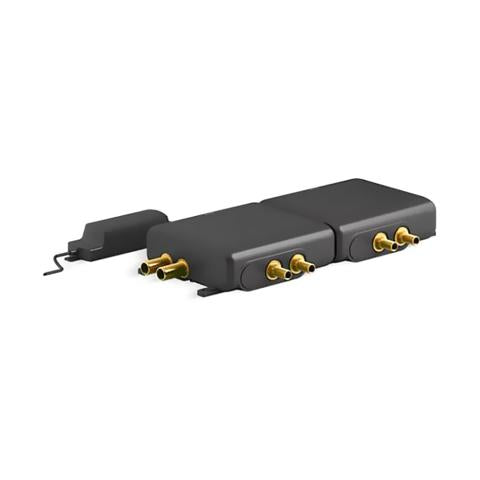

Anthem, 4-port Digital Thermostatic Valve

$2,204.00

Kohler Anthem Digital thermostatic technology gives precise, accurate, and consistent temperature and flow control for the perfect shower experience. Its easy plug-and-play design makes installation a breeze. Designed for use with the Anthem digital control it is precision-engineered, best-in-class digital thermostatic valve. As an extra safety feature this valve has antiscald protection.

Eco mode is an optional built-in feature that lets you use just one outlet at a time to conserve water. This valve is ideal for applications where four shower outlets are required, offering two different temperature and flow zones.

Required items sold separately

Model: K-28211-NA
Construction Material: Reinforced engineering-grade thermoplastic body
Mount: Wall
Voltage: 120
Amperage: 1.0 Amps
Hertz: 60Hz
UL Rated: Yes
NPT Inlet: 3/4"
NPT Outlet: 1/2"
Width: 20-3/8" (518mm)
Depth: 8-1/4" (210mm)
Height: 3" (76mm)

- Digitally controlled thermostatic mixing valve.

- Antiscald protection.

- Built-in temperature and flow control.

- Allows for two different temperature and flow zones in your shower.

- Conserve water by enabling built-in eco mode, which limits use to only one outlet at a time.

- Up to 22 gpm (83 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 9.5 gpm (36 lpm) from one outlet.

- Four independently controllable 1/2" outlets with brass tube connections.

- Reinforced engineering-grade thermoplastic body.

- Mounts within standard 2" x 4" (38 x 102 mm) walls.

- Install valve approximately 32' (9754 mm) away from the digital control (cable supplied with control).

- Prewired with two-prong plug for connection to 120v GFCI receptacle.

- Anthem Digital Control

- Filter Screens (Qty 2)

- Jumper

- Mounting Hardware

- Power Supply Unit

Anthem, 4-port Digital Thermostatic Valve
