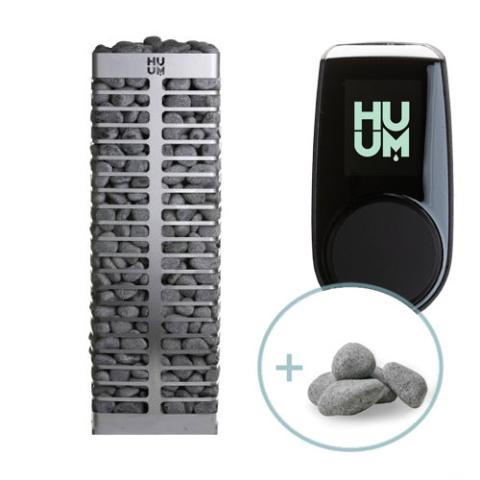

STEEL Series 10.5kW Sauna Heater Package

Model: STEEL 10.5STU Pkg

STEEL 10.5:
- Kilowatt Rating: 10.5 kW
- Minimum Cubic Feet: 353 CF
- Maximum Cubic Feet: 600 CF
- Heater Weight: 35 lbs
- Shipping Weight with Sauna Stones: 366 lbs
- 240V, Single Phase Amperage: --

- Width: 12.6" (320 mm)
- Depth: 12.6" (320 mm)
- Height: 38.4" (975 mm)

UKU Control:
- Minimum Temperature Setting: 104°F
- Maximum Temperature Setting: 230°F
- Shipping Weight: 20 lbs

Console Dimensions:
- Width: 2.2" (55 mm)
- Depth: 0.9" (22 mm)
- Height: 4.1" (105 mm)

Main Module Dimensions:
- Width: 3.5" (90 mm)
- Depth: 2.3" (58 mm)
- Height: 5.6" (142 mm)

Display Panel Cable:
- Length: 9.8 ft
- AWG: 22

Temperature Sensor Cable:
- Length: 16.4 ft
- AWG: 24

Door Sensor Cable:
- Length: 16.4 ft
- AWG: 24

STEEL 10.5kW Sauna Heater

• Sleek design
• Suitable for use in saunas with limited space
• Small safety distances
• Heats up to 25% faster due to internal air duct
• For sauna rooms from 353 to 600 cu. ft.
• Works with UKU controls (sold separately)
• Works with UKU extension box (sold separately)
• 331 pound stone capacity (required 10 boxes sold separately)
• Direct contact between stones and heating elements
• More exposed stones create a longer and milder heat
• Stainless steel construction
• Stainless steel, industrial quality heating elements​
• Floor model
• Designed, engineered, and made in Estonia
• Dimensions: 12.6" W (320mm) x 12.6" W (320mm) x 38.4" H (975mm)
• Limited 5-year warranty (excluding elements)

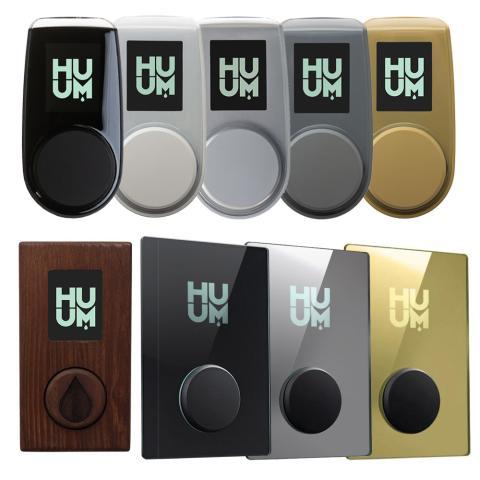

UKU

• Sleek Black control display panel
• Multiple Color Options available (additional charges apply)
• Settable on/off, time, temperature, and delay
• Settable temperature range of 104-230F
• Delayed start up to 48hrs in advance
• Optional Built-in Wi-Fi interface for HUUM mobile app (additional charges apply)
• 8 Language options: English, German, Russian, Italian, Finnish, Estonian, Polish and French
• Inside/outside sauna room installation
• Optional smart heating setting
• Available decorative control display panels
• Displays set temperature and room temperature
• Temperature sensor
• Door sensor to keep the heat inside the room
• Remotely located main control module
• Connects to lights and ventilation
• Overheat protection
• Child safety lock
• Control Console Dimensions: 2.2"W (55mm) x 0.9"D (22mm) x 4.1"H (105mm)
• Main Control Module Dimensions: 3.5"W (90mm) x 2.3"D (58mm) x 5.6"H (142mm)

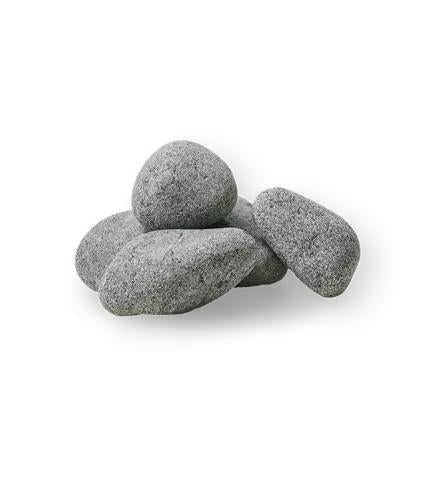

Stones 12

• Olivine diabase sauna stones
• Rounded shape to complement heater design
• Durable with high-heat capacity
• Stones range from 1" to 2" (3-5 cm)

STEEL 10.5kW Sauna Heater

• 10.5kW sauna heater
• Installation and operation manual
• 5-Year limited warranty (excluding elements)

UKU

• Black Control console
• Main control module
• Temperature sensor
• Door sensor
• Control display panel cable
• Temperature sensor cable
• Door sensor cable
• Installation and operation manual
• 5-Year limited warranty

Stones 12

• 330 lbs of 1" to 2" (3-5 cm) round Olivine sauna stones

The weight or packaging of this product requires delivery by special appointment, and on a wooden pallet. 

The driver is responsible for curbside delivery “only” and will lower the items to ground level. 

Prior to shipping this product, we contact customers to share shipment details and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses. 

Our goal is to ensure your project's success.
