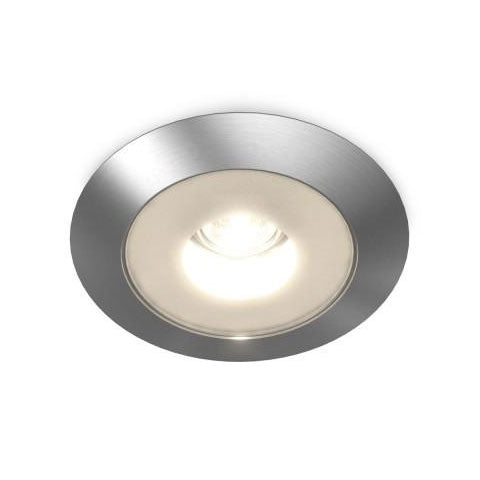

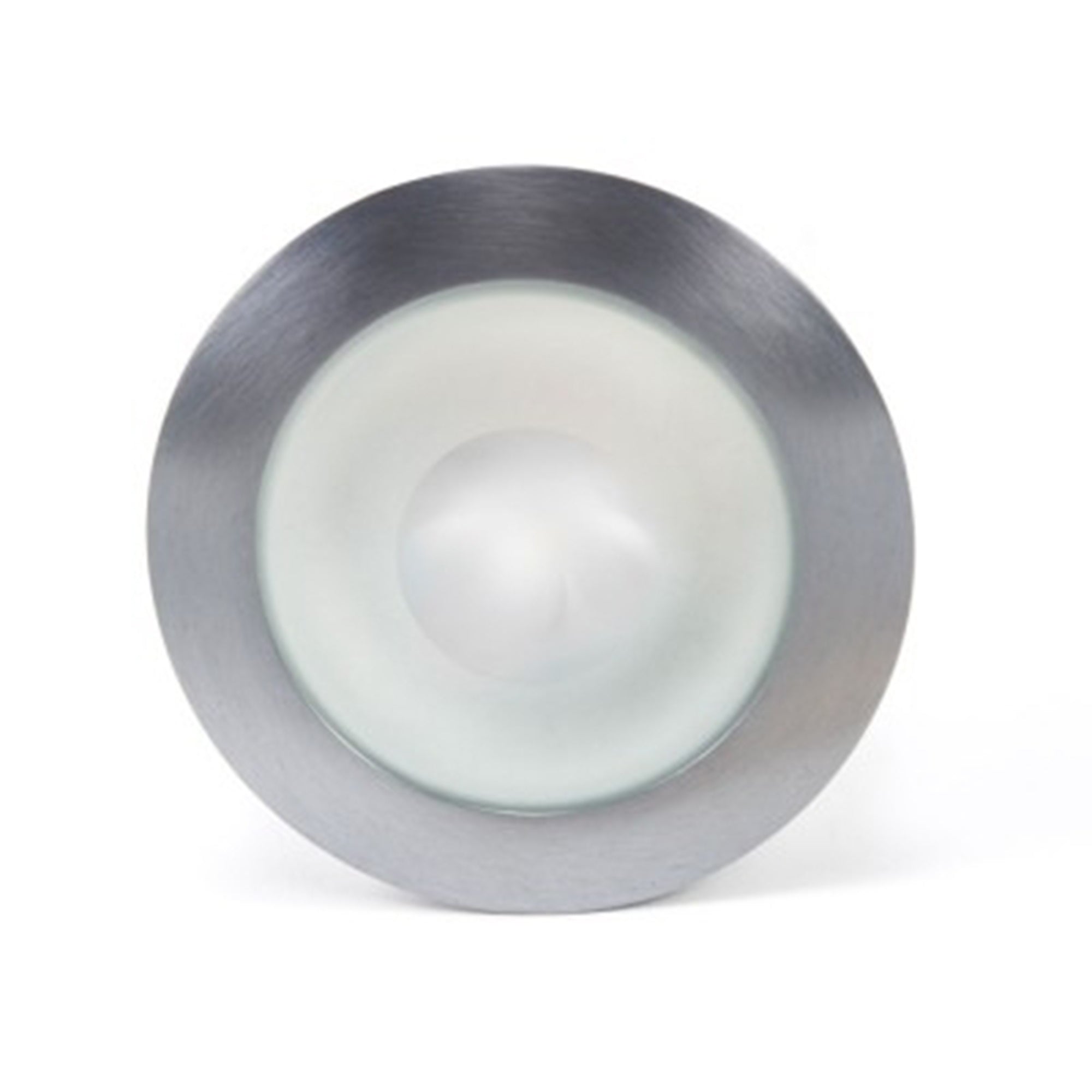

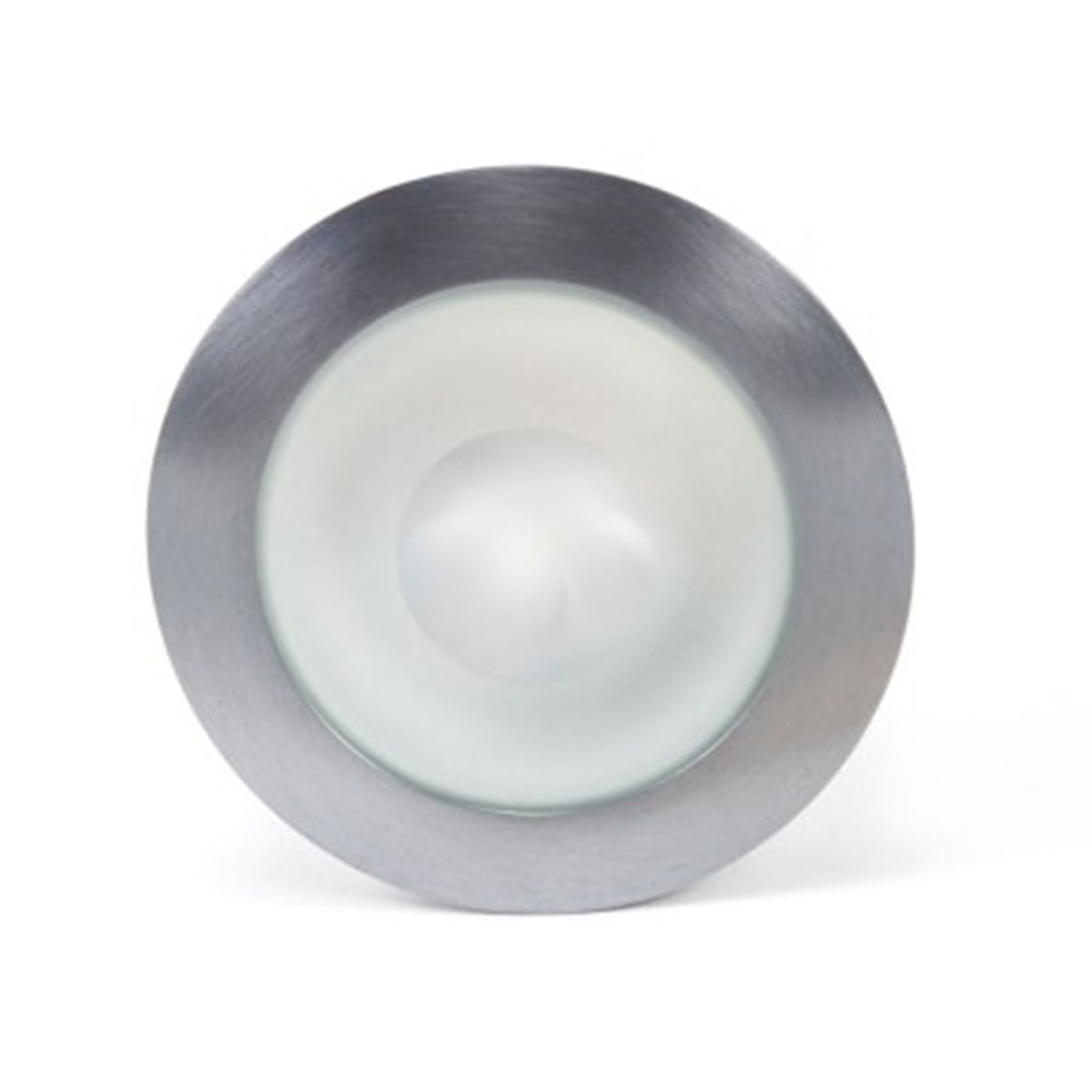

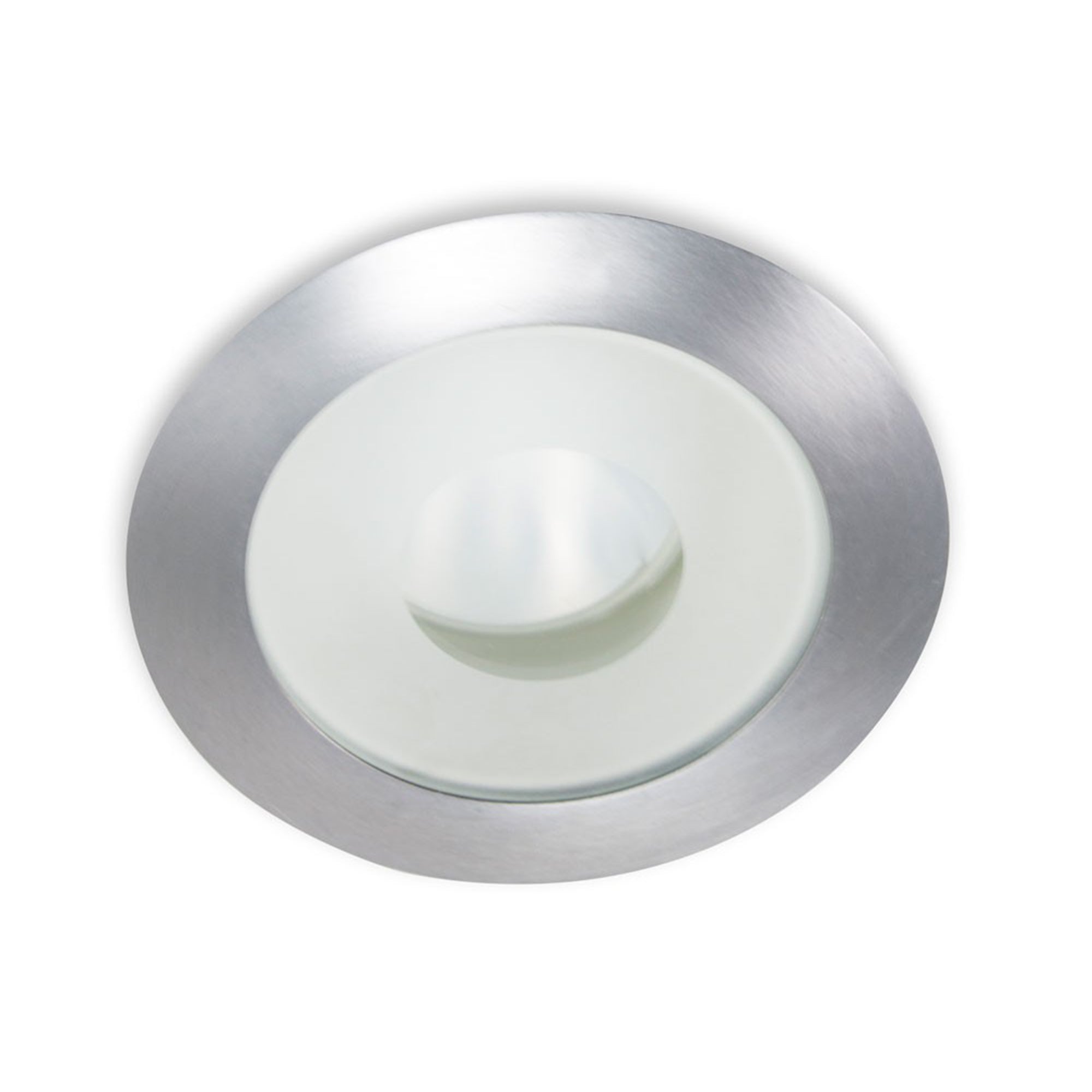

Spectrum 321 is a low-voltage recessed, ceiling-mounted light that is U.L. listed for wet locations. Its IC rated design utilizes a unique leaf spring mounting mechanism and near-flush trim containing a frosted glass lens with a clear center to cast the ideal downward shine. The incorporated LED engine operates at 14Watts and 4100K, and has a life of 50,0000 hours. Expect superior light quality, longevity, less heat output, and energy savings.
Consider the pre-wired Spectrum 321 for new construction or remodeling projects where IC or Non-IC ratings are required, the maximum ceiling thickness does not exceed 1-1/4", and there exists 6" of installation height. The ready-to-install electronic low-voltage transformer (120VAC/12VAC) is conveniently located atop the housing with an integral junction box.

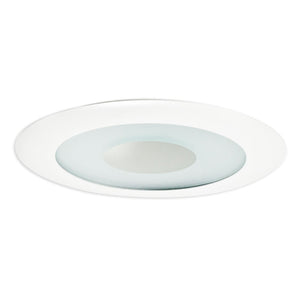

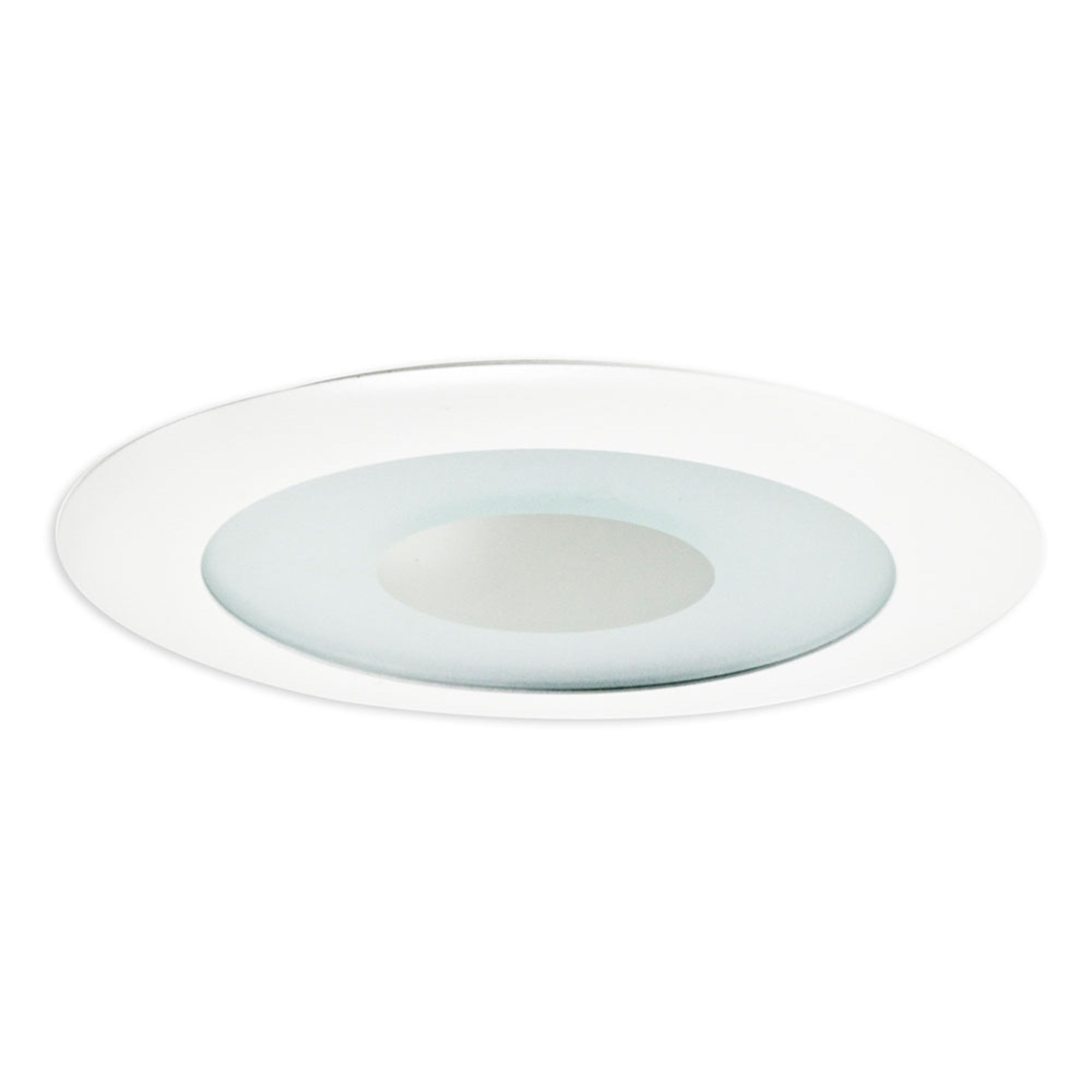

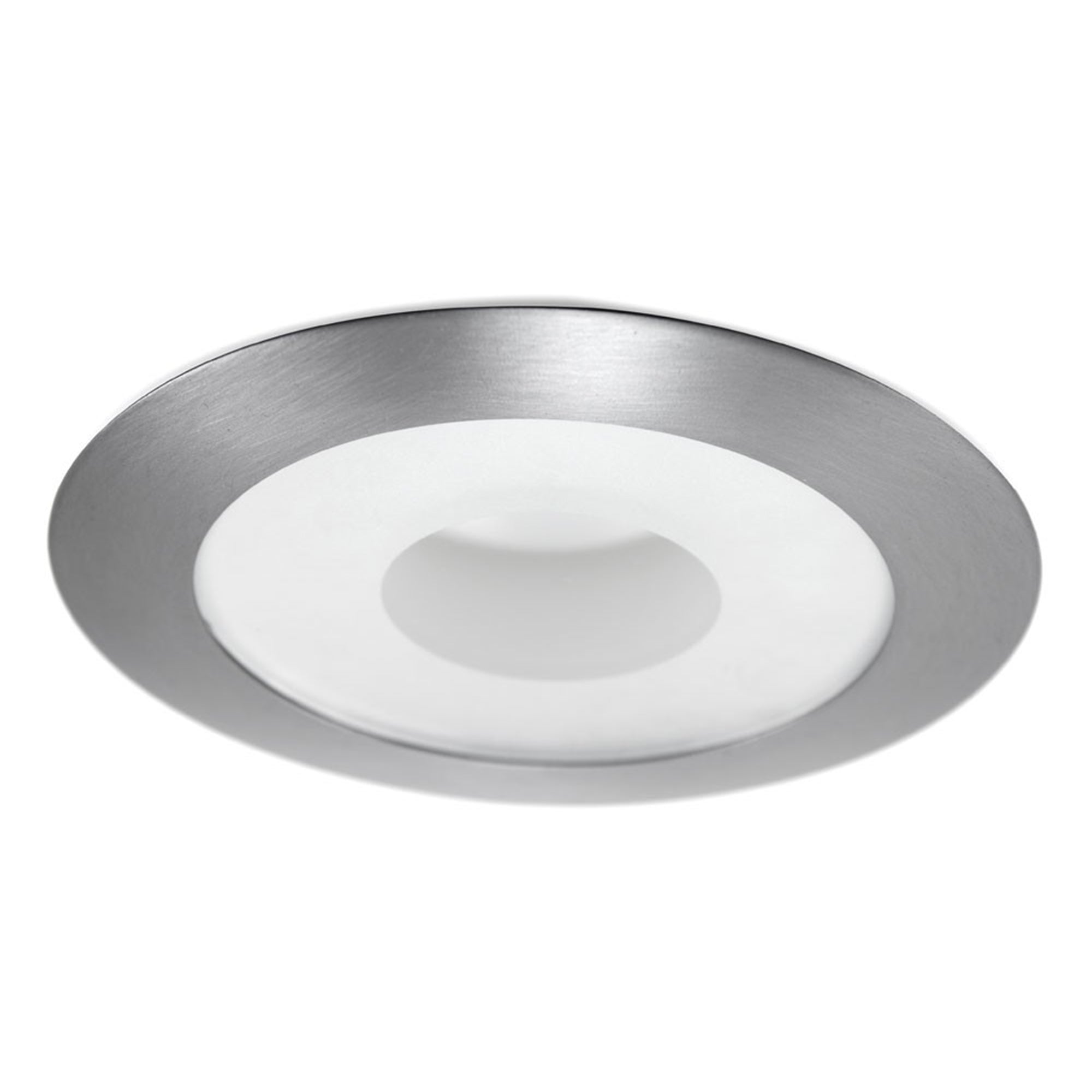

Available in both Satin Nickel and White finishes.
Model: Spectrum 321
Fixture Type: Recessed Ceiling Downlight, LED
Dimming: With the use of most incandescent, magnetic low voltage and electronic low voltage wall box dimmer
Insulation Contact: IC Rated
Minimum Installation Height: 5-1/4”
Maximum Ceiling Thickness: 1-1/2”
Rough-In Cut-Out: 4-3/8”
Housing Length: 14-1/8”
Housing Width: 7-3/8”
Housing Height: 4-3/8”
Housing Composition: Aluminum
Shipping Weight: 6 lbs
Testing: U.L. Listed, CSA, Suitable for Wet Locations
Trim: Steel, Electrostatic Powder Paint
Trim Profile: 1/8”
Trim Diameter: 5”
Light Engine: LED, Input Power 14Watt (+/-5%), Input Current - Max 0.125A
Light Driver: 120VAC, Power factor > 0.9, Minimum starting temp -20°C
Light Engine Life: 50,000 hours at 70% lumen maintenance
Optic: LED-optimized reflector
Color Temperature: 4100K
Color Rendering Index: 83 CRI typical
Beam Angle: 46° Degree
Lumen: 600
