Bathology Atmospheric 330

Model: Atmospheric 330

Fan:
Type: In-Line
Dimensions: 11-3/8" Diameter x 8" Length
Housing_Composition: Galvanized Steel
Air_Volume: CFM: 190 @ .20" W.G.
AC_Voltage: 120VAC
Power_Consumption: 60W
Nominal_Amperage: 0.52 Amps
Lubrication: Permanently Lubricated, Sealed Ball Bearings
Protection: Thermal Overload, Automatic Reset
Speed_Control: 100% Speed Controllable
Testing: U.L. Listed; CSA Certified
Airstream_Tolerance: Up To 140° F

Damper:
Dimensions: 6" Diameter x 6" Length
Body_Composition: Galvanized Steel, 28 Gauge
Blade_Composition: Aluminum Blades
Seal_Composition: Foam

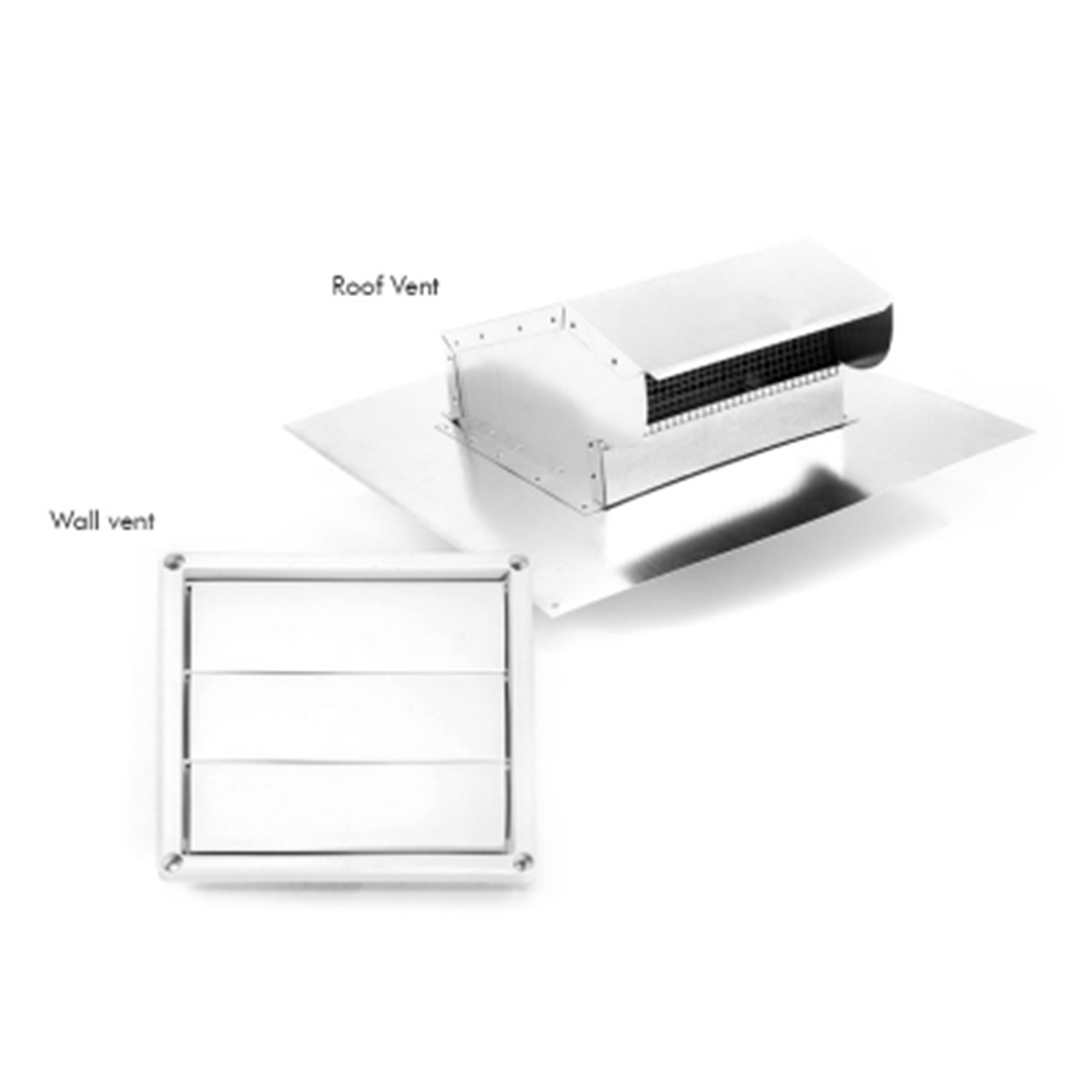

Roof_Cap:
Type: Removable Screen, Duct Extension
Cap_Dimensions: 10-3/4"L x 8-1/4"W x 5-1/4"H
Composition: Galvanized Steel, 28 Gauge
Rough-In_Cut-Out: 6-1/8"
Duct_Connection: 6"

Wall_Vent:
Type: Duct Extension
Vent_Extensions: 8-1/8"L x 8-1/8"W x 7/16"H
Duct_Extensions: 6" Diameter x 12' Length
Grille_Composition: Polyethylene Plastic, UV Resistant, Brittleness Temperature of -99° F
Extension_Composition: Galvanized Steel, 28 Gauge
Rough-In_Cut-Out: 6-1/8"
Duct_Connection: 6"

Flex_Duct:
Dimensions: 6" Diameter x 25' Length
Composition: Reinforced Grey Polyester, Fiberglass Insulation
Testing: UL-181
R-Value: 4.2
Operating_Temperatures: Max -20° F To 140° F

Duct_Tie:
Composition: Nylon
Operating_Temperatures: Max 185° F
Tensile_Strength: 175 lbs
Testing: UL-181-B-C

Mastic:
Composition: Liquid Sealant, Water-Based, UV Resistant, Grey
Use: Indoor / Outdoor
Testing: UL-181-B, USDA, FDA, EPA Approved

Control:
Type: Electronic Timer
Operating_Voltage: 120VAC, 60Hz
Amperage_Rating: 20 Amps
Motorload: 1HP

Control_Option:
Type: Slide Speed
Operating_Voltage: 120VAC, 60Hz
Amperage_Rating: 5 Amps

• Super quiet performance
• High CFM/Watt efficiency
• Superior performance @ Higher Static
• Small 7” grille diameter
• May qualify for local utility rebate
• Simplified installation
• Inline backdraft damper
• Remote placement of fan motor
• Flex duct installation
• EBM motor assembly
• Variable speed control (sold separately)
• Uses 6” duct
• C-UL US listed
• UL listed for Wet Locations
• IC rated

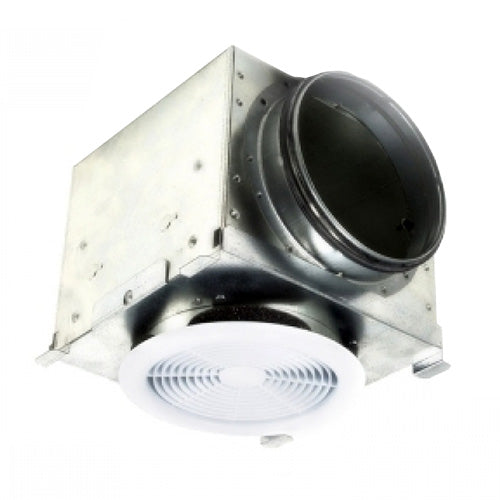

• Remote fan, 190 CFM with mounting bracket
• Damper, 6"
• Electronic Timer Control
• Flex Duct, 6"x25'

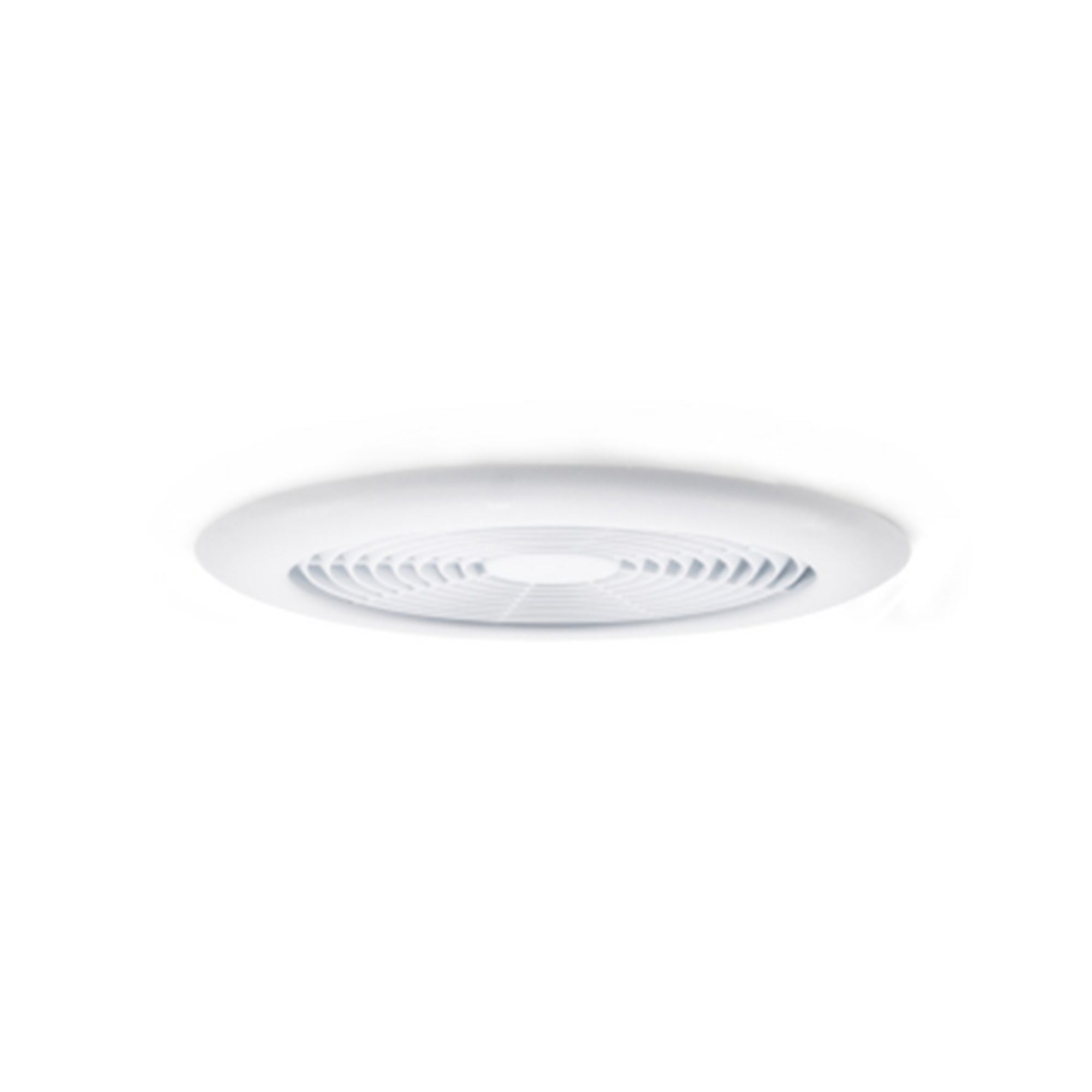

• Ceiling grille and housing measuring 7-3/16"Lx7-3/16"Wx5-5/16"H
• Mastic, 11oz tube
• (8) Duct Straps, 36"
• (3) Sheet Metal screws
• Manufacturer’s warranty
• Installation manual
