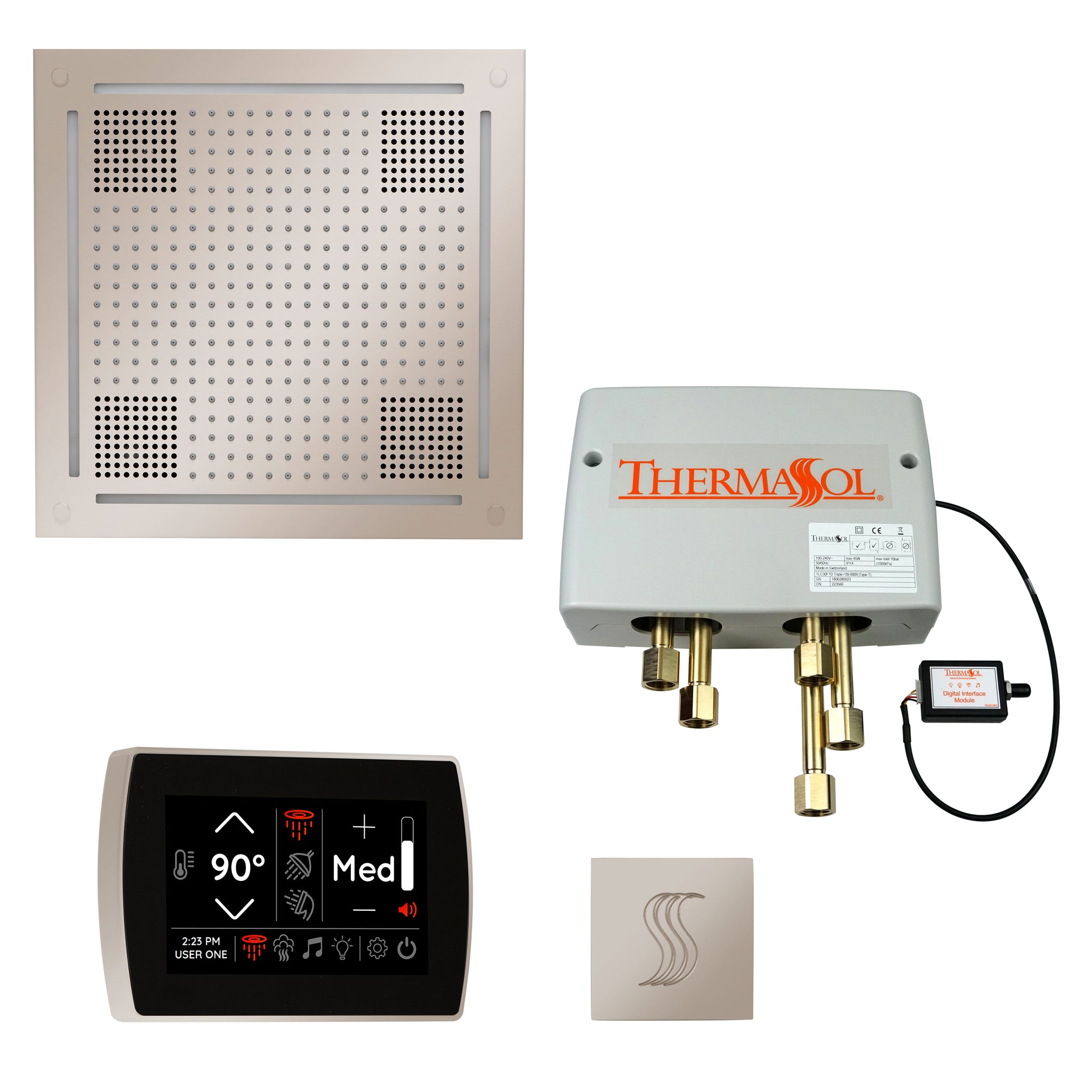

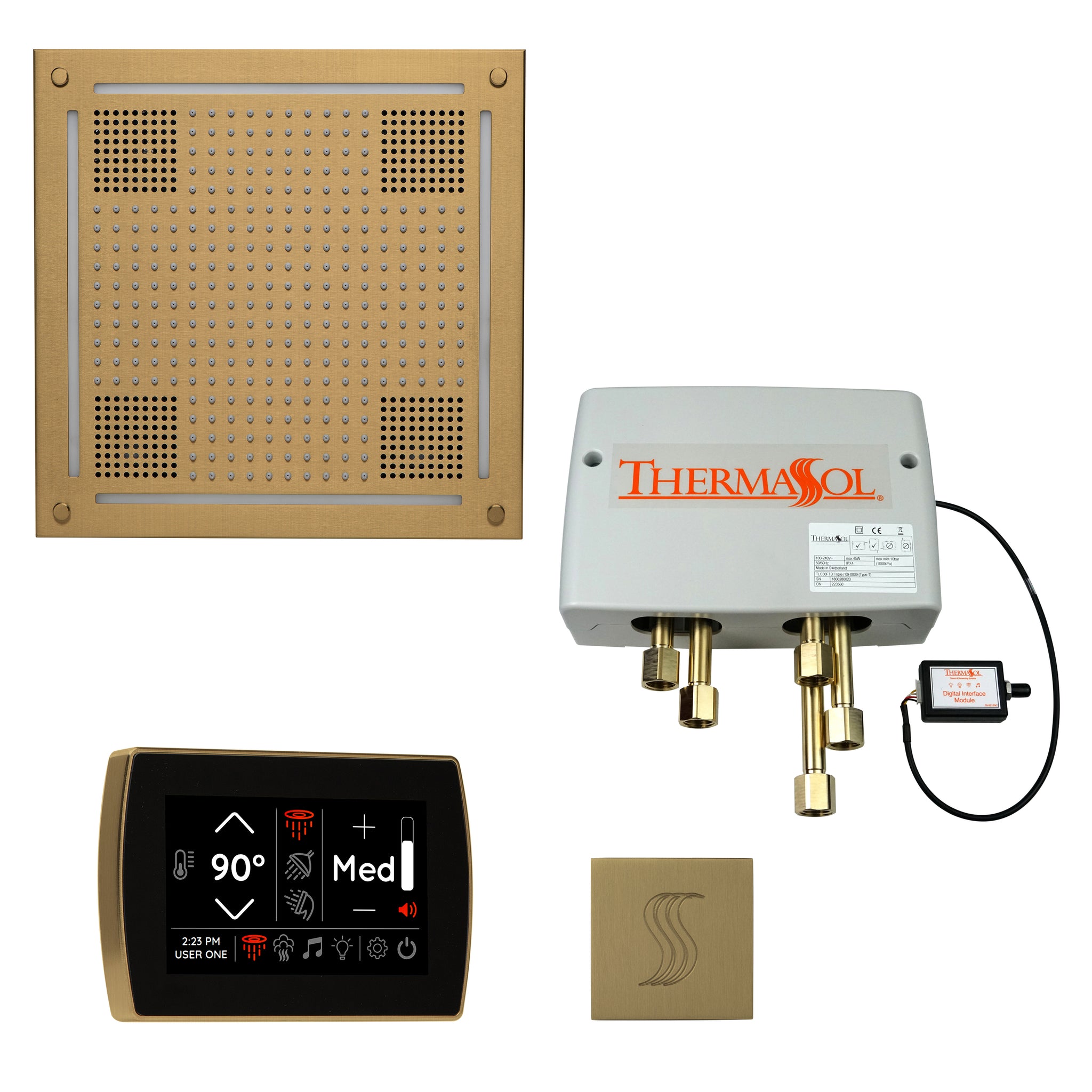

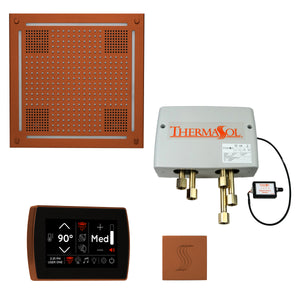

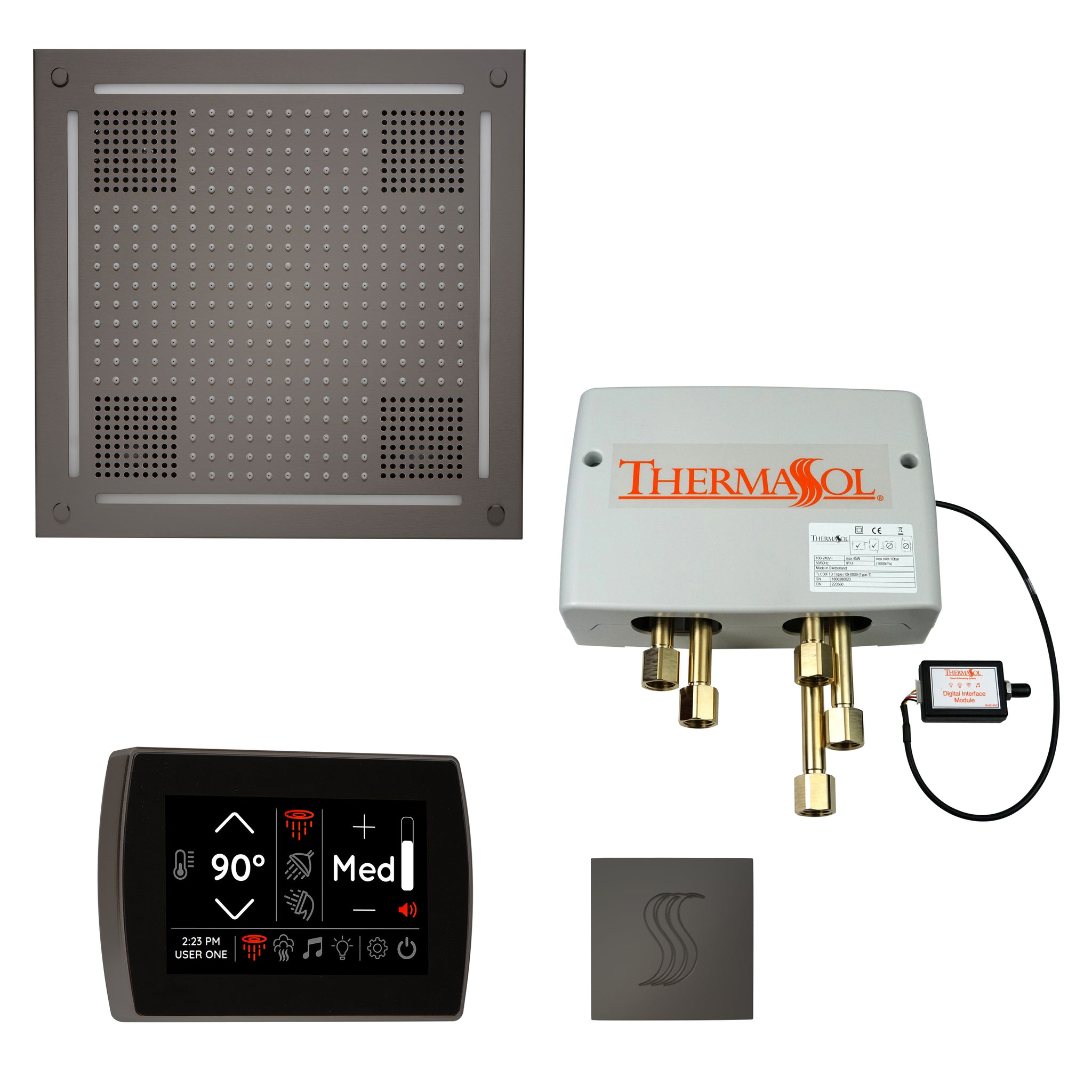

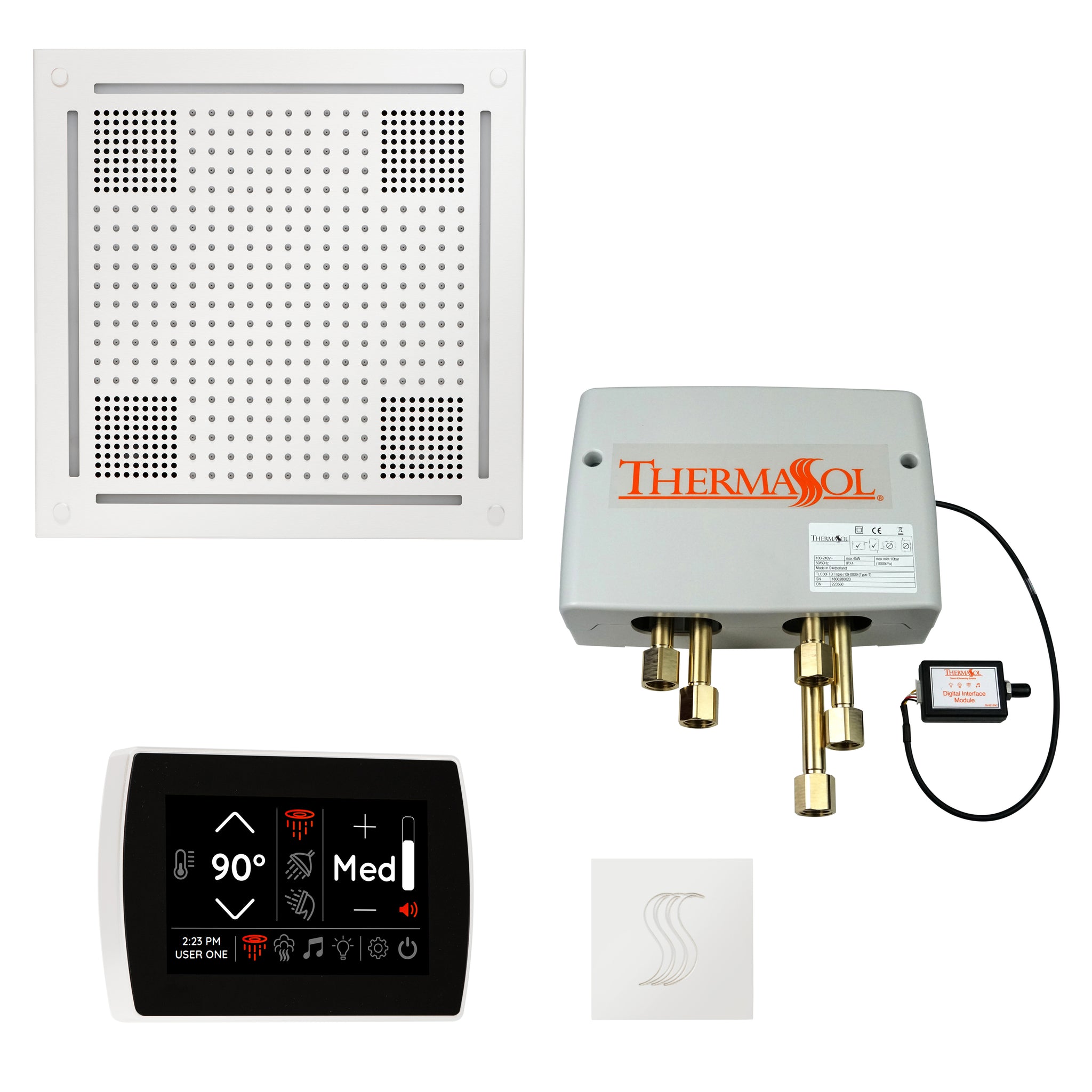

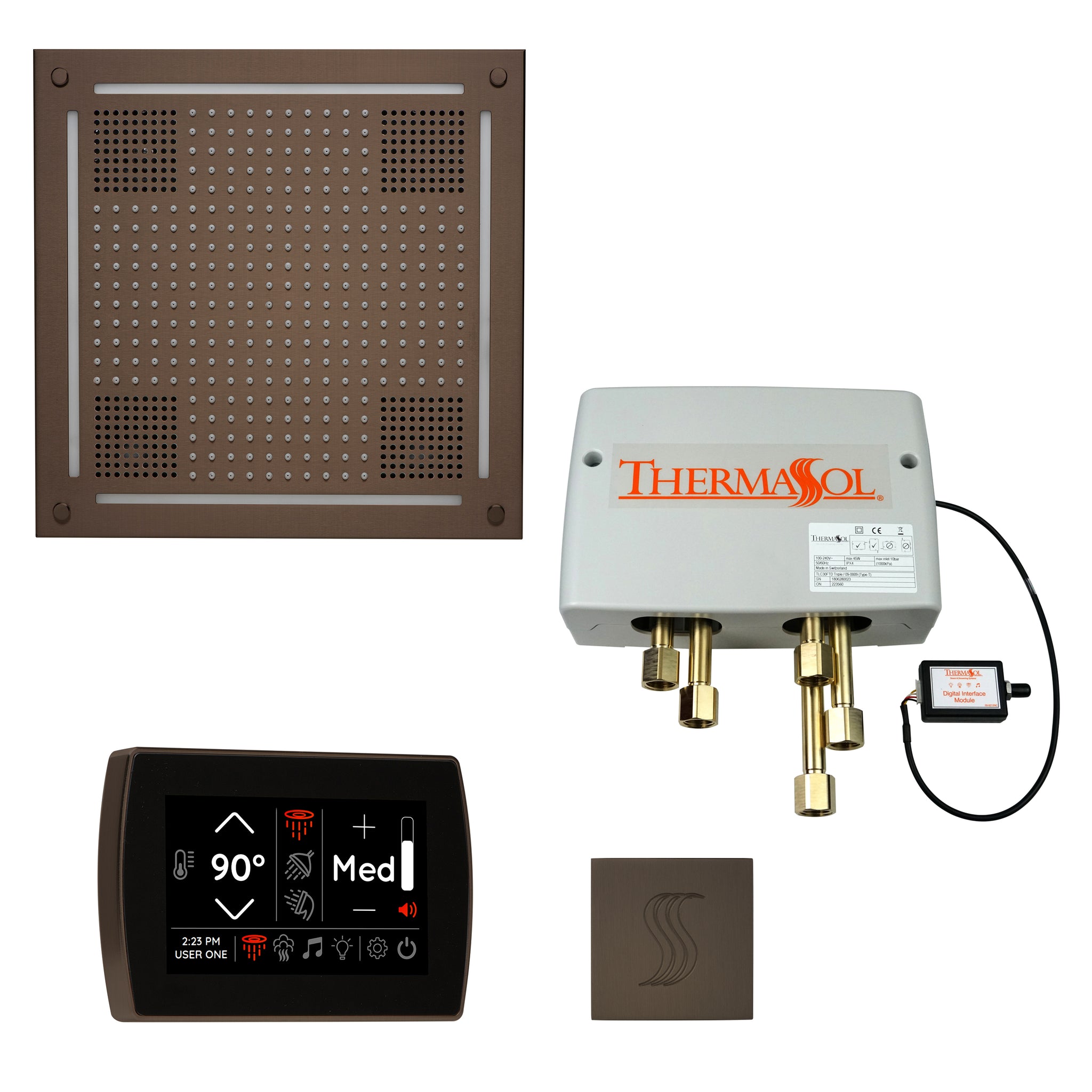

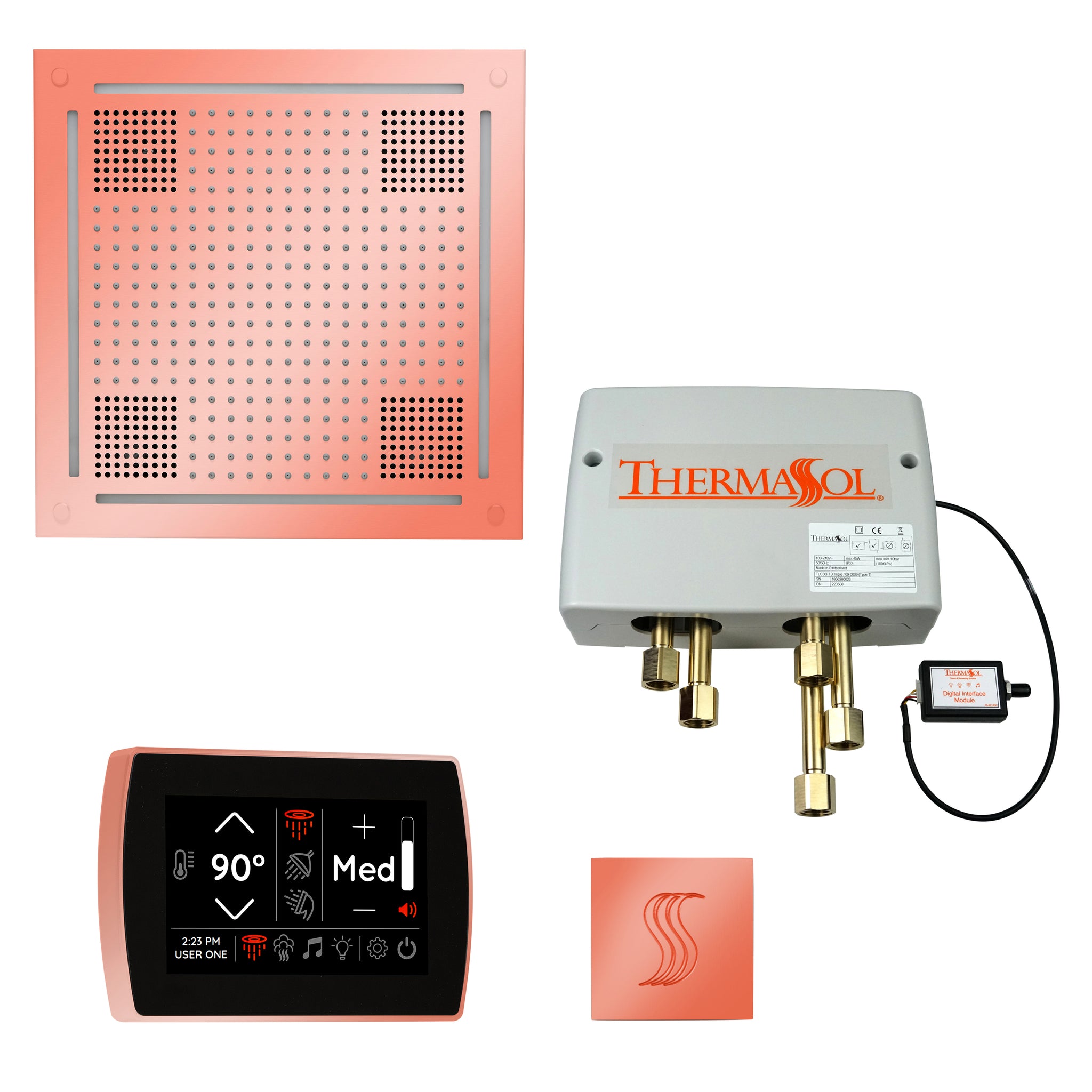

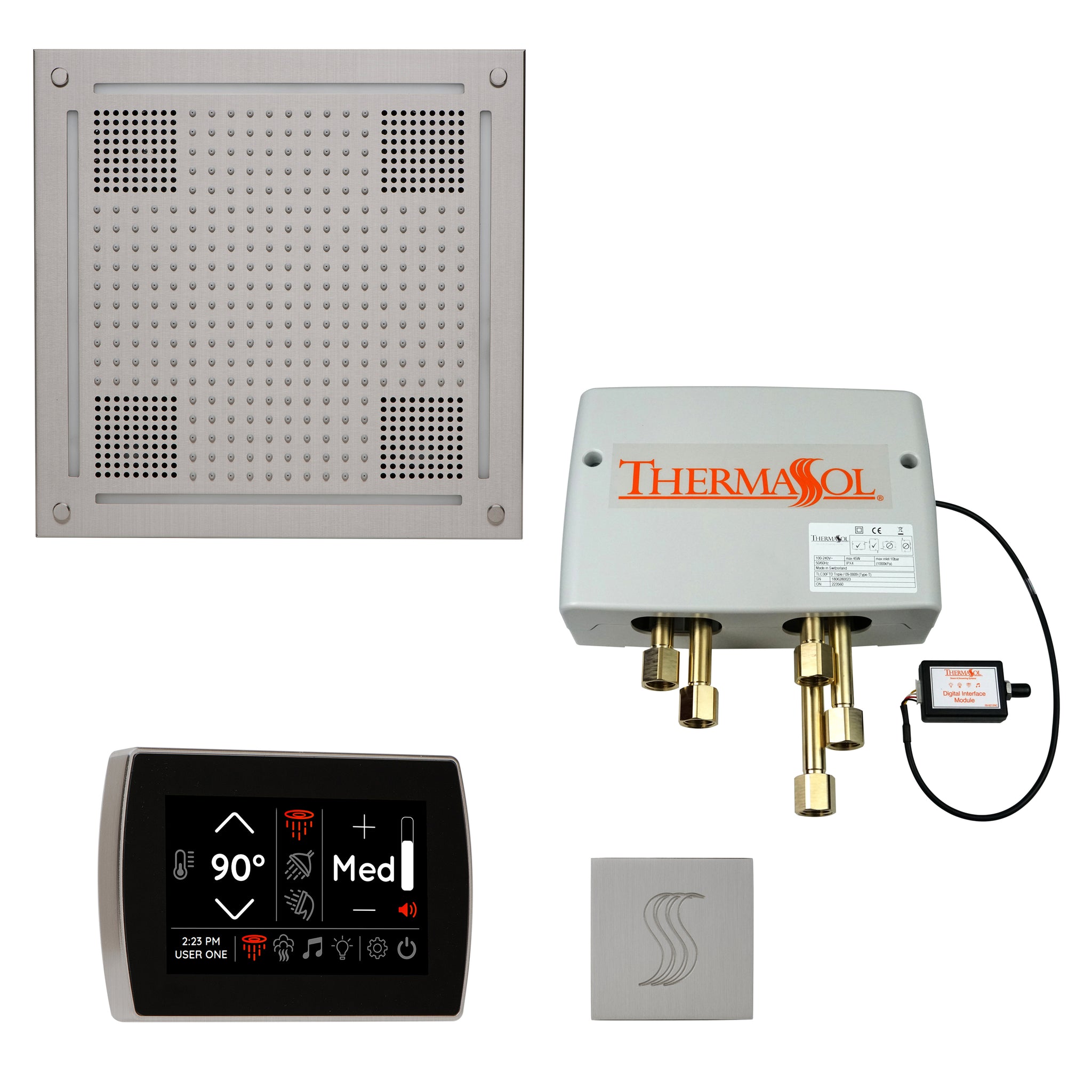

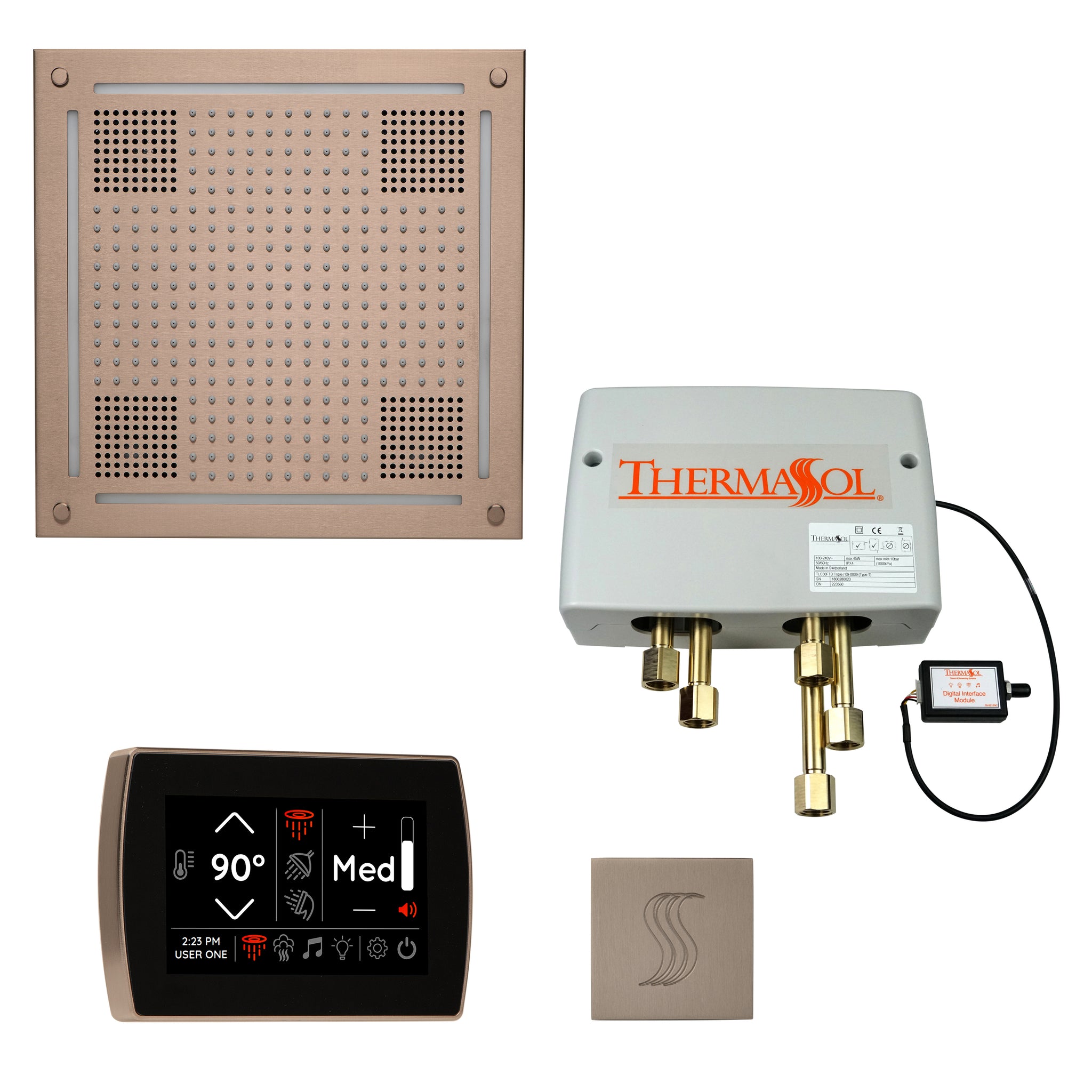

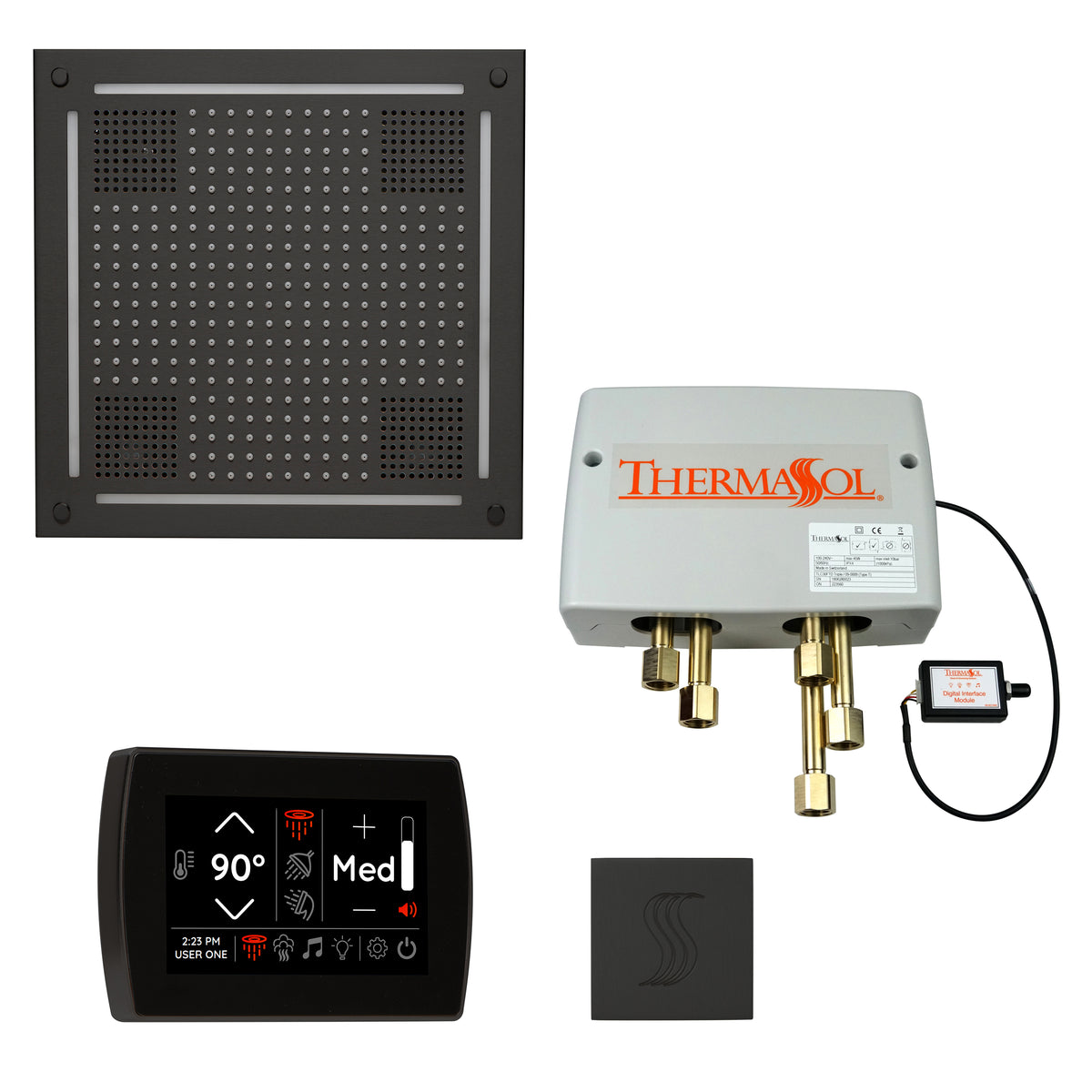

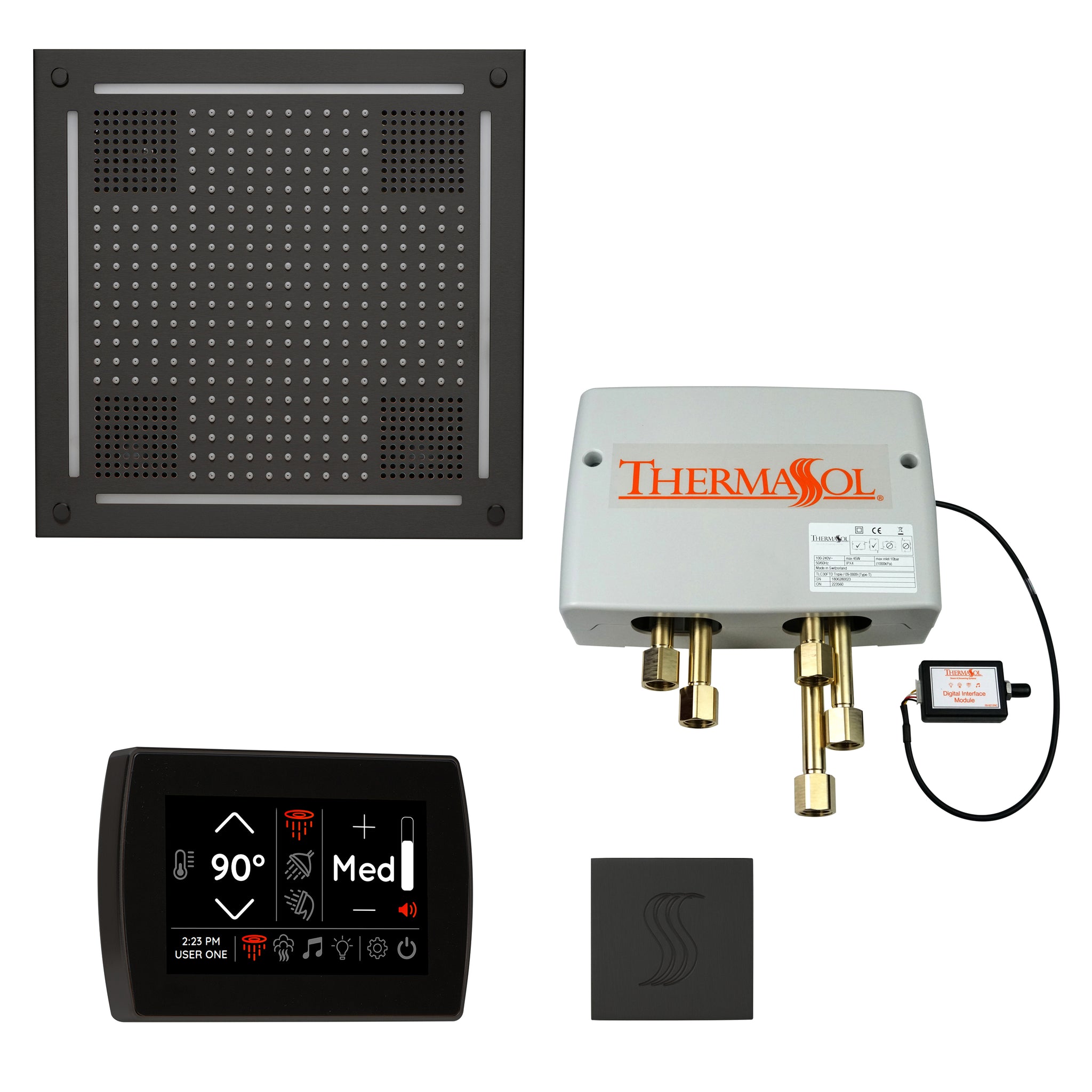

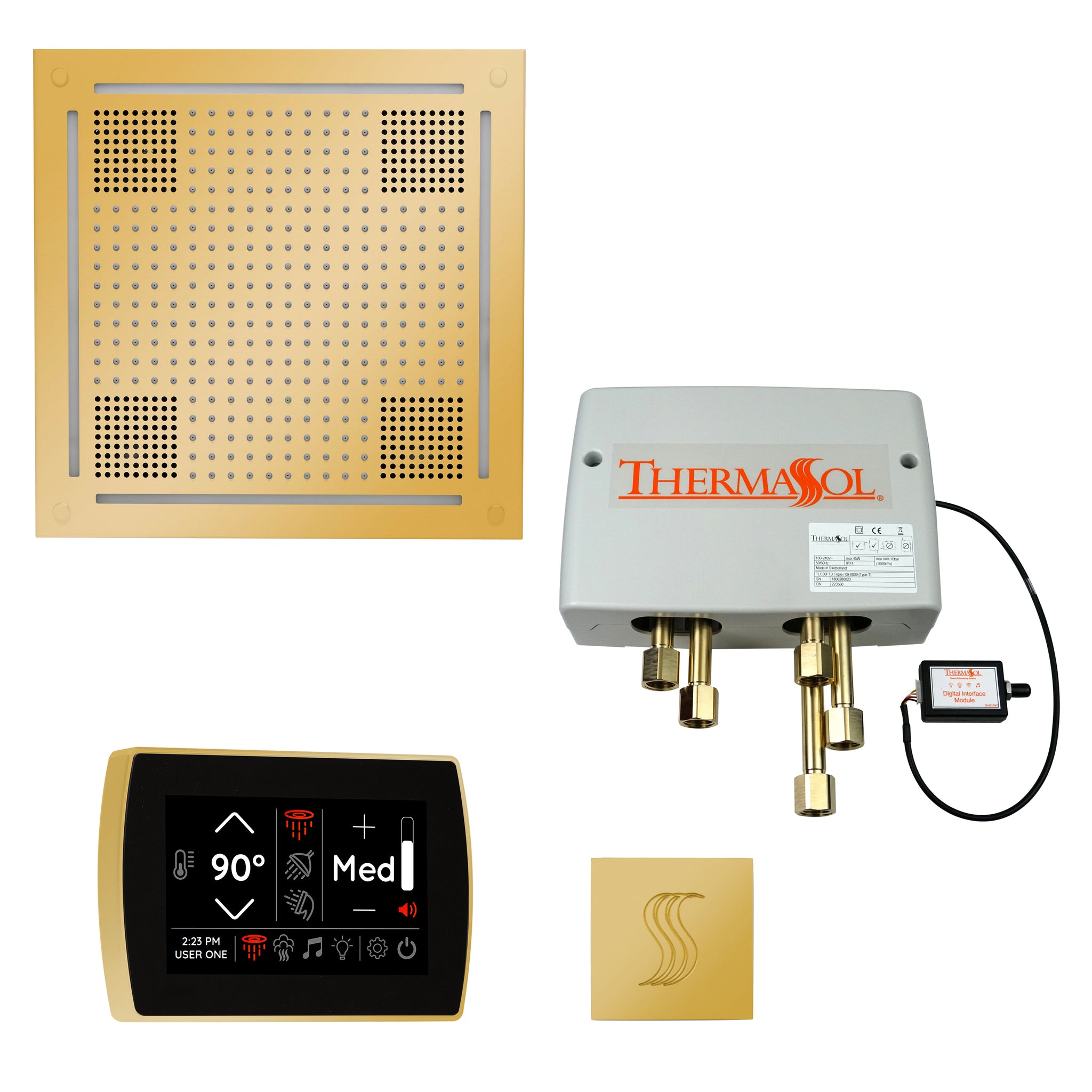

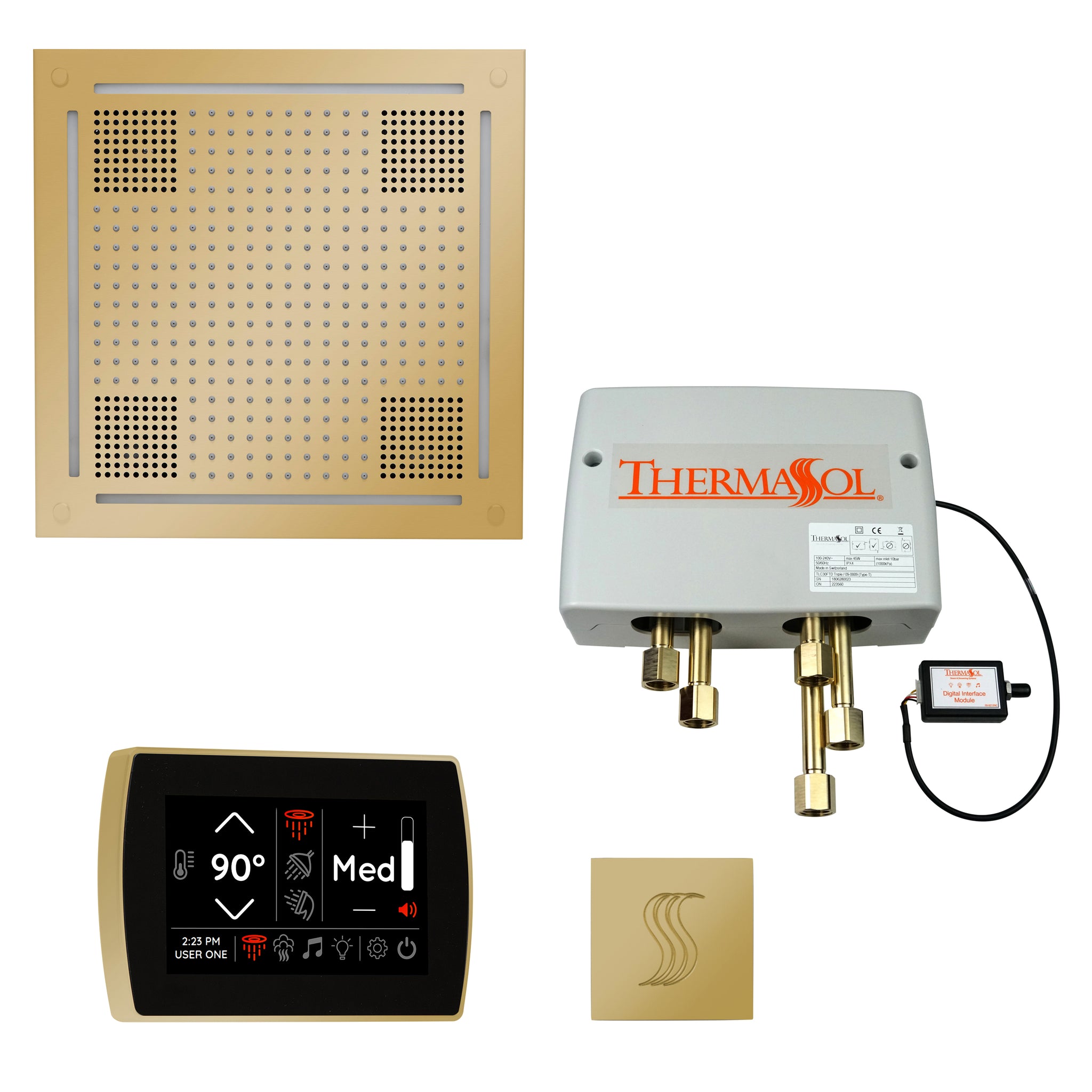

The Total Wellness Package Hydrovive with SignaTouch Square

Model: TWPHSS
SignaTouch 5 Control:
Construction: Acrylic
Display: 5" Capacitive Touch Screen
Display Full Color: 16.7M
Display resolution: 480 x 800
Interface: Single Touch
Shipping Weight: 1.25 lbs
Width: 5.7"
Depth: 1.25"
Height: 4.8"
Installation: In Shower
Digital Shower Valve:
2 Inputs: 1/2" FNPT
3 Outputs: 1/2" FNPT
Power Supply:
Input: 110VAC, 0.5 Amps
Output: 15VDC, 3 Amps required
Shipping Weight: 10.65lbs
Width: 11"
Depth: 3"
Height: 7"
HydroVive 18:
Construction Material: Machined Brass
Function Lights: 200 Full-color luminous LED
Water Supply: 3/8”, 40-80 PSI, 1.8GPM
Water Jets: 300
CEC Approved: Yes
Amplifier: 100Watt RMS
Digital Signal Processor: Built-In
Weight: 37 lbs
Width: 18"
Depth: 8"
Height: 18"
SteamVection:
Material: Brass Alloy
Connection: 1/2" NPT
Shipping Weight: 1 lb
Square Style Dimensions:
Width: 1.75"
Depth: 1.9"
Height: 1.75"
Round Style Dimensions:
Diameter: 1.75"
Depth: 1.9"

SignaTouch 5 Control

- Flexible installation (vertical and horizontal)

- 15 designer controls trims available

- Steam Shower Control

- Operates Smart Shower Valve

- Operates HydroVive

- Operates Serenity Rainhead

- Touchscreen Control

- Steam time control

- Steam temperature control

- Memory Settings

- 2 Customizable User Settings

- Date display

- Time display

- Fahrenheit or Celsius Settings

- Designed, engineered, and crafted in the U.S.A

- Dimensions: 5.7" W x 1.25" D x 4.8"H

- Lifetime Warranty (Parts and Labor - 2 years)

Digital Shower Valve

- Precise temperature control

- Precise water volume control

- Eliminates exposed valves and trims

- Ceramic disc Fluhs

- 2 industrial grade stepper motors

- Solenoid valve systems

- Integrated diverter

- Three output valve

- IAPMO approved

- Designed, engineered, and crafted in the U.S.A

- Dimensions: 11"W x 3"D x 7"H

- 5 year warranty

HydroVive 18

- Ceiling mounted light, sound and rainhead system - all in a single self-contained module

- 15 designers finishes available

- Lighting

- Full-spectrum LED Lighting

- 1600 lumens max

- 200 Full-color luminous LED (R,G,B,W)

- Color Changing “Mood Lighting”

- Preset Chromatherapy Chakras

- Custom user-programmable “any color”

- Audio

- Distortion-free sound

- Amplifier: 100Watt RMS,

- Built-in Digital Signal Processor

- Built-in Bluetooth v4.2

- 2-1” Titanium Dome Tweeter with Ferro fluid-cooled aluminum voice coil

- 1- 4” woofer

- 1-4” passive radiator

- Complete sound settings control

- volume

- treble

- mid-range

- bass

- Stereo RCA input

- Built-in Bluetooth

- 300 easy-clean neoprene jets

- 40-80 PSI

- 1.8GPM Water Jets

- 300 CEC Approved

- Powered by:

- 24V DC

- 30 Watts power supply (provided)

- Designed, engineered, and crafted in the U.S.A

- Dimension: 18"W x 8"D x 18"H

- 5 year replacement warranty (Limited Finish warranty)

SteamVection Steamhead

- Floor to ceiling consistent temperature

- Brass alloy material

- Square style

- 15 designer finishes available

- Whisper quiet

- Essential oil well for aromatherapy (sold separately)

- Designed, engineered, and crafted in the U.S.A

- Dimensions: 1.75"W x 1.9"D x 1.75"H (Square) 1.75"Diameter x 1.9"Depth (Round)

- 5 year warranty

SignaTouch 5 Control

- SignaTouch control

- Silicone

- Mud ring

- Installation instructions

- Warning label

- Warranty

Digital Shower Valve

- Digital Shower Valve

- Screw set

- Connection nipple set

- CAN-bus cable 50ft'

- Digital interface

- Back up battery

- Installation manual

- Warranty

HydroVive 18

- HydroVive 18

- Wood screws

- Silicone

- 25' Yellow M12 Cable

- 25' Audio Cable

- Installation instructions

- Warranty

SteamVection Steamhead

- SteamVection steam head

- Silicone

- Lubricant

- Installation manual

- Warranty
