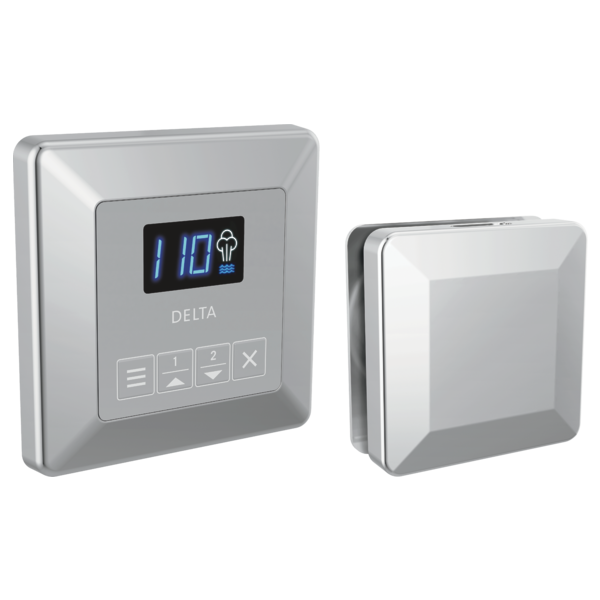

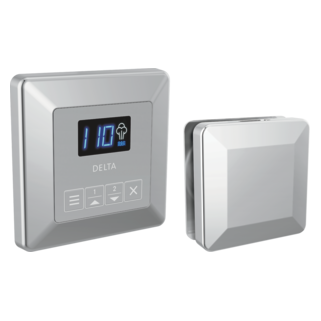

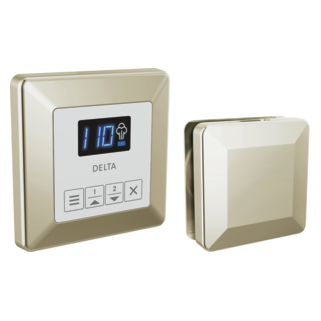

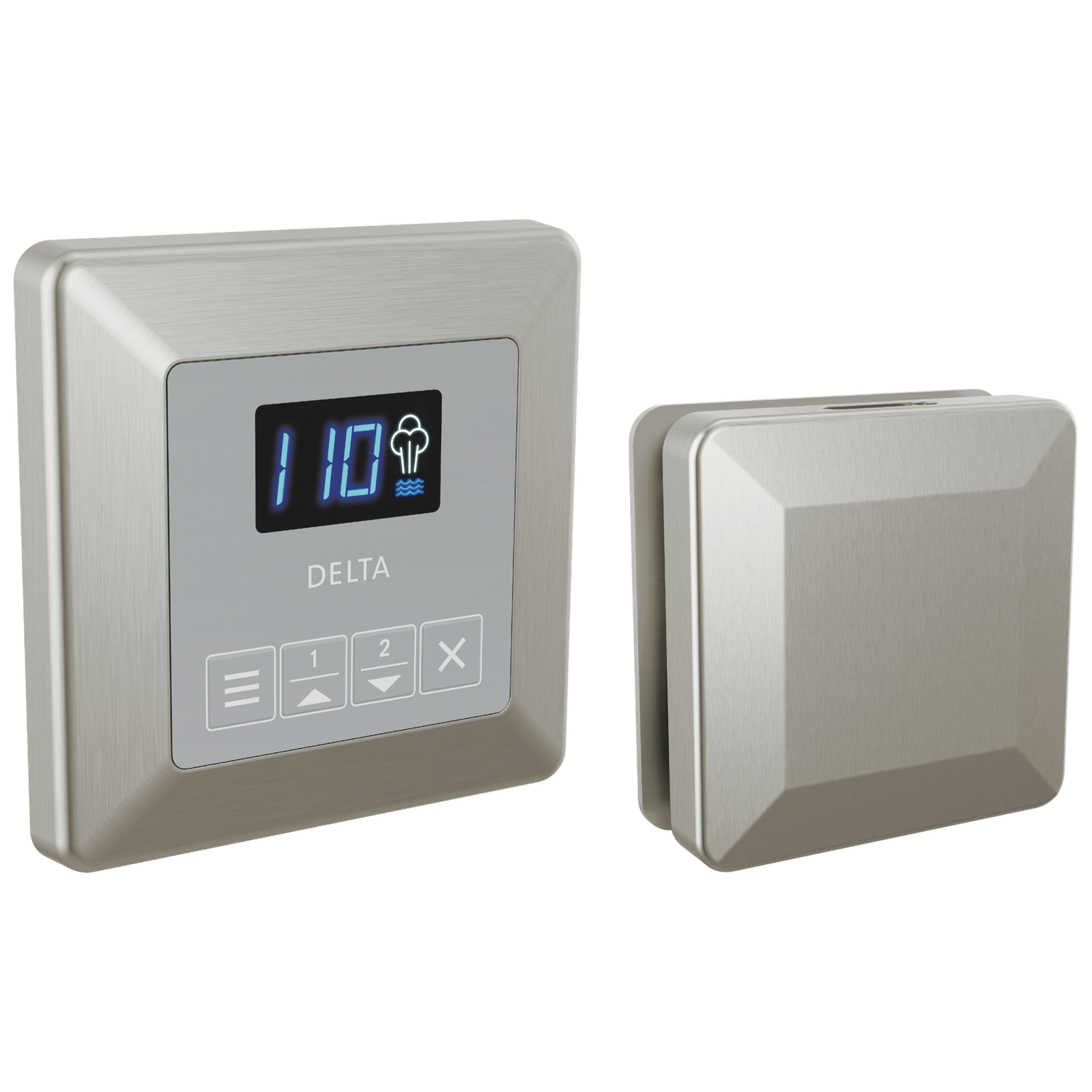

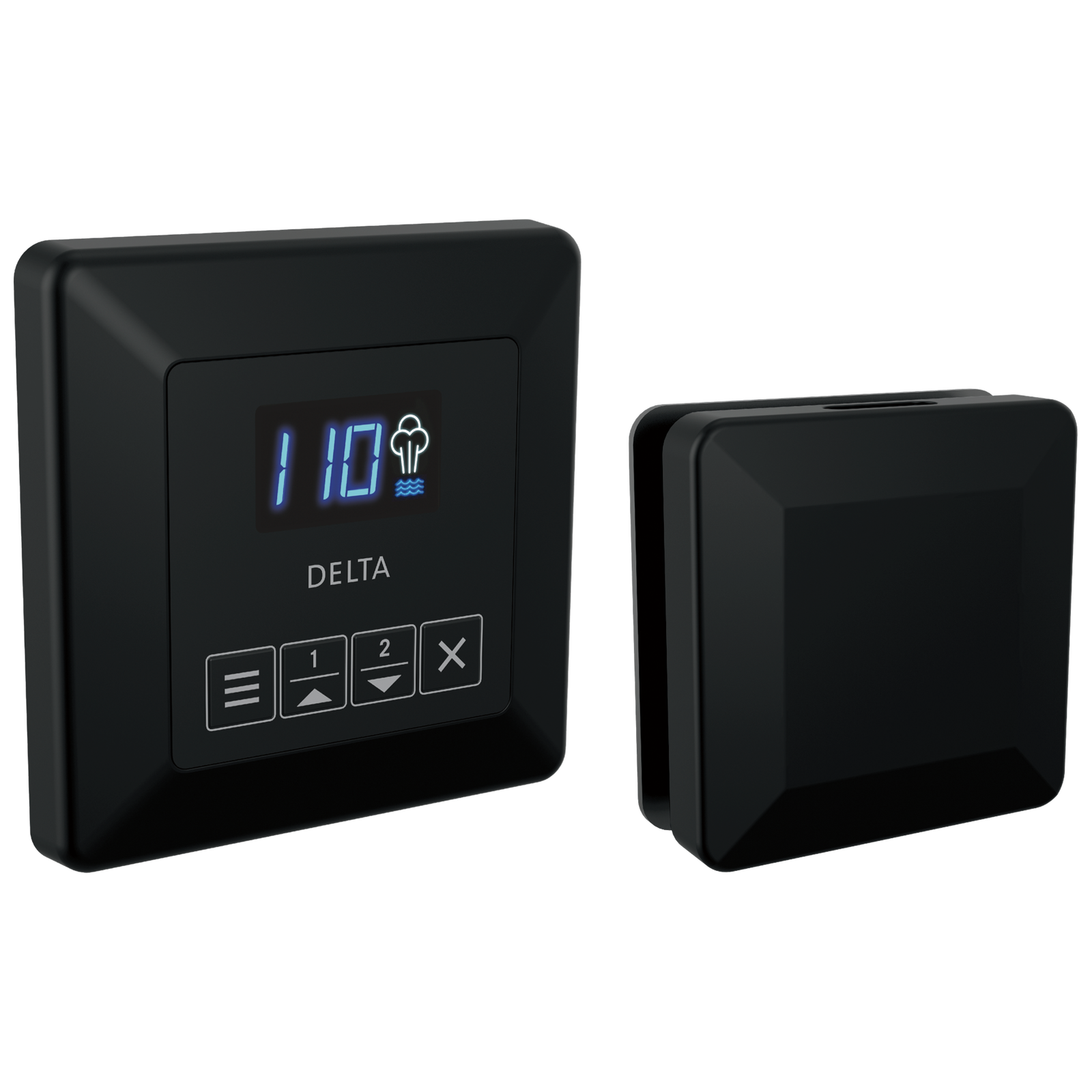

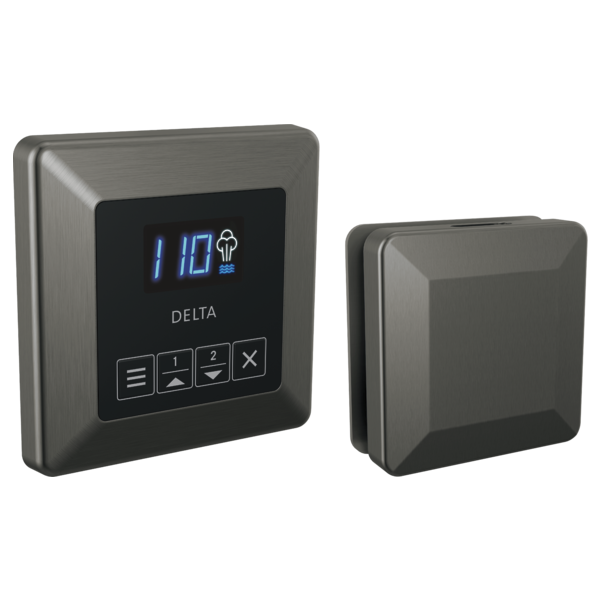

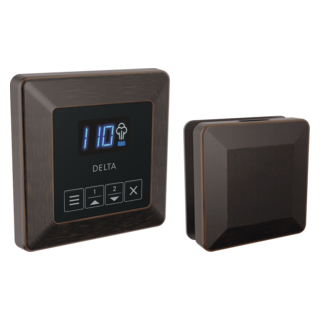

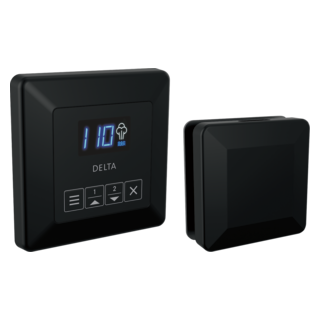

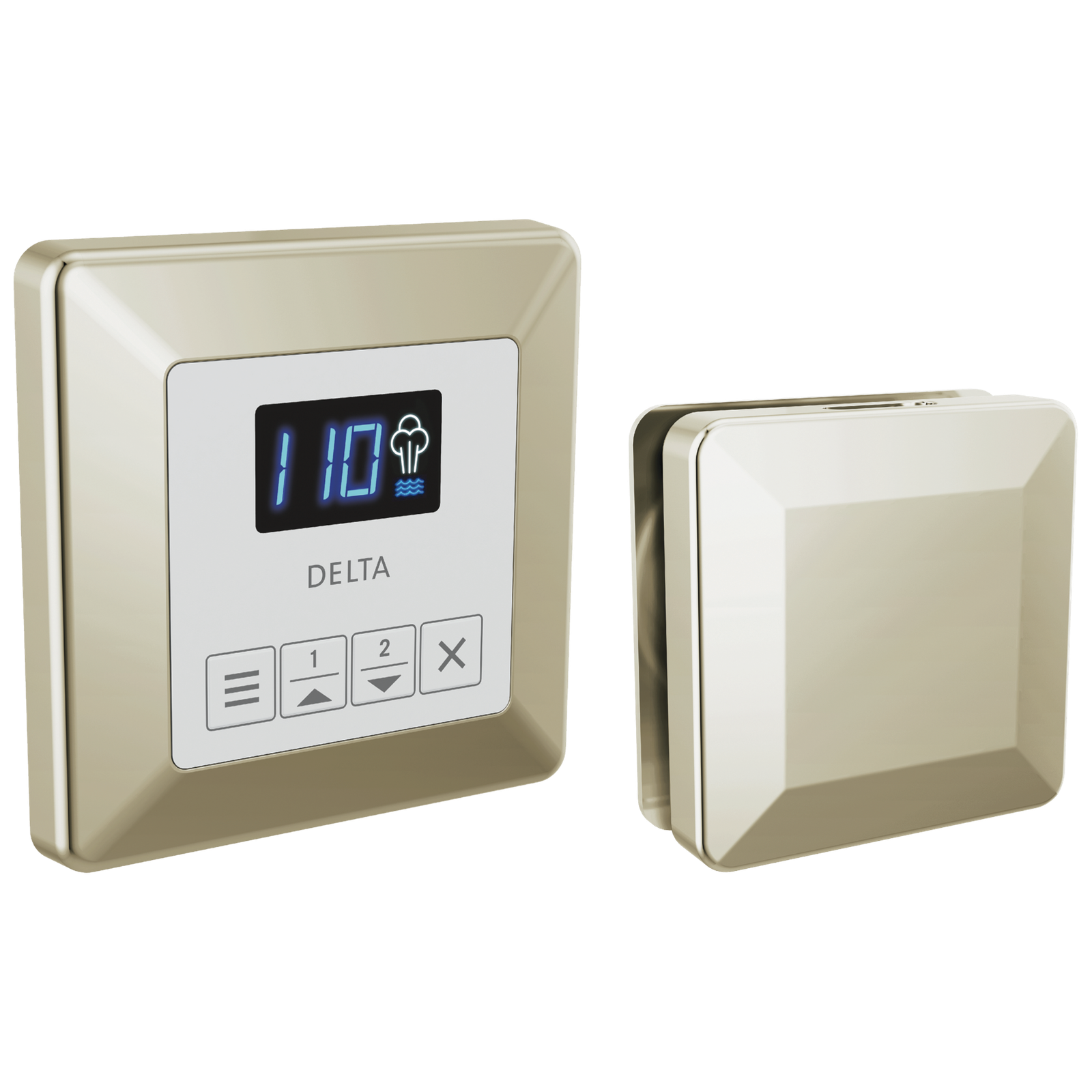

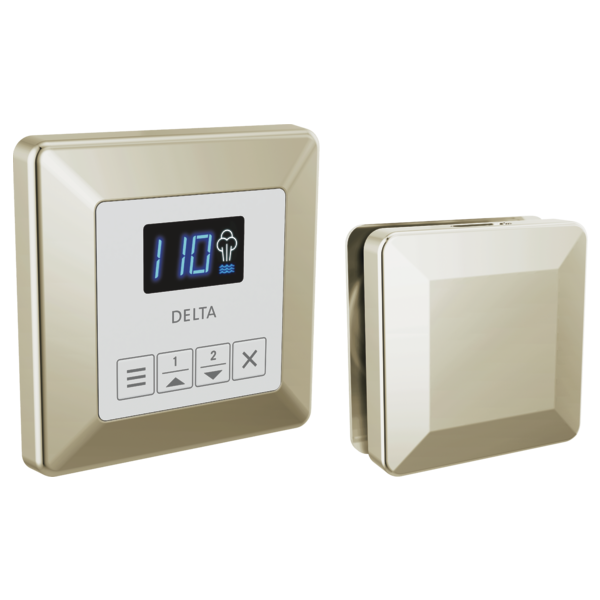

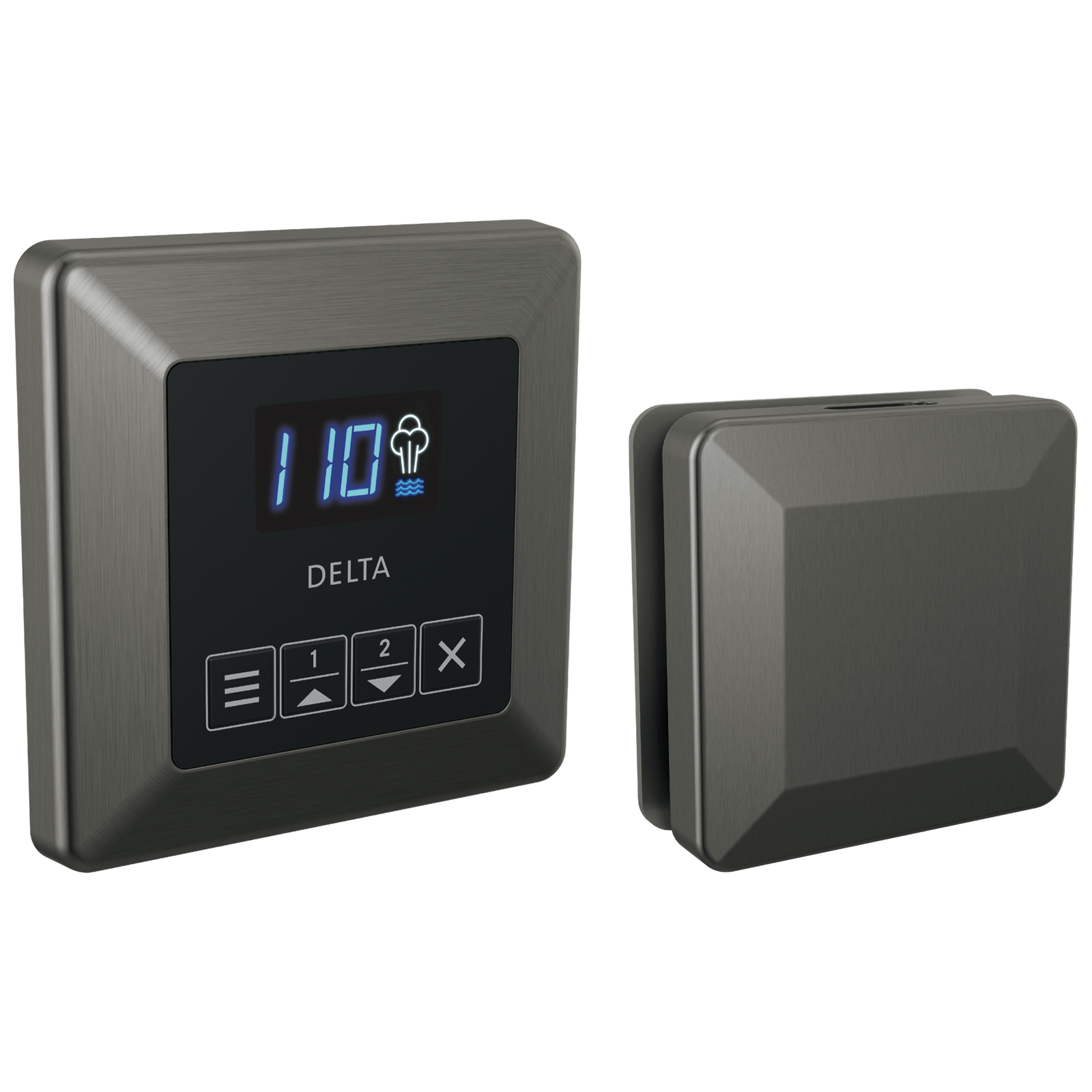

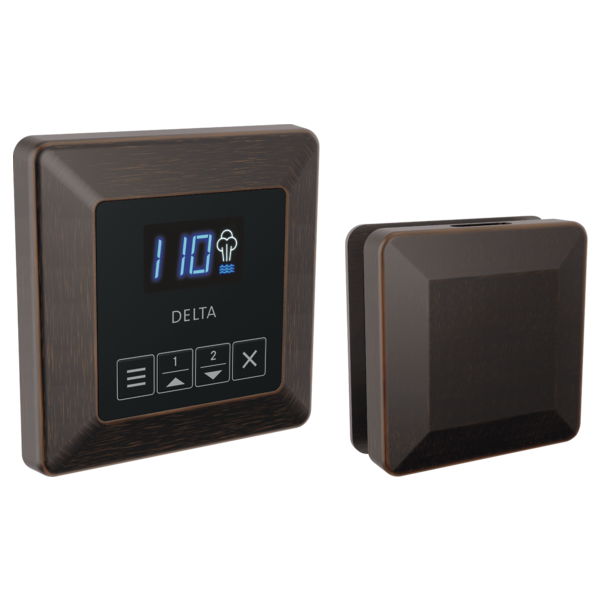

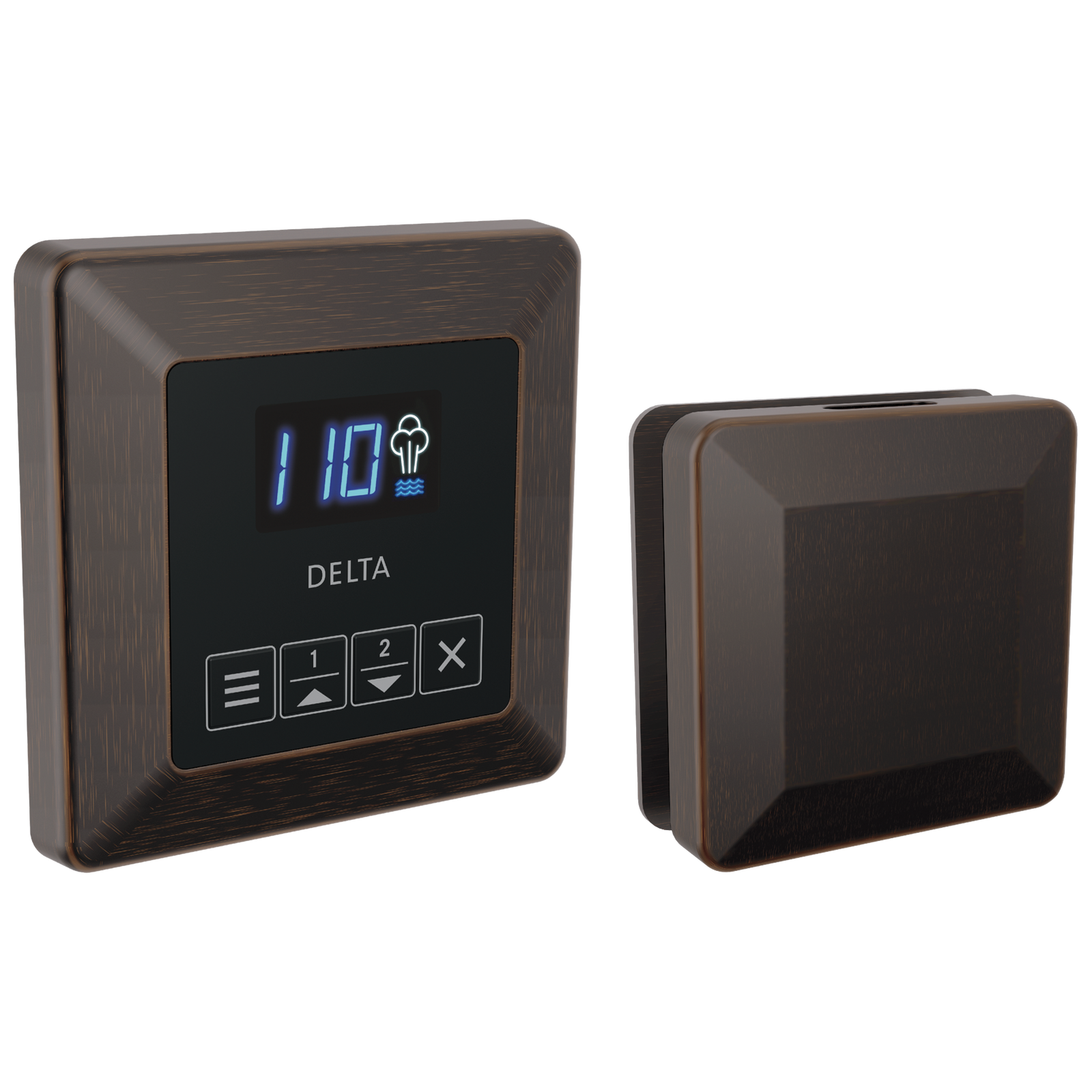

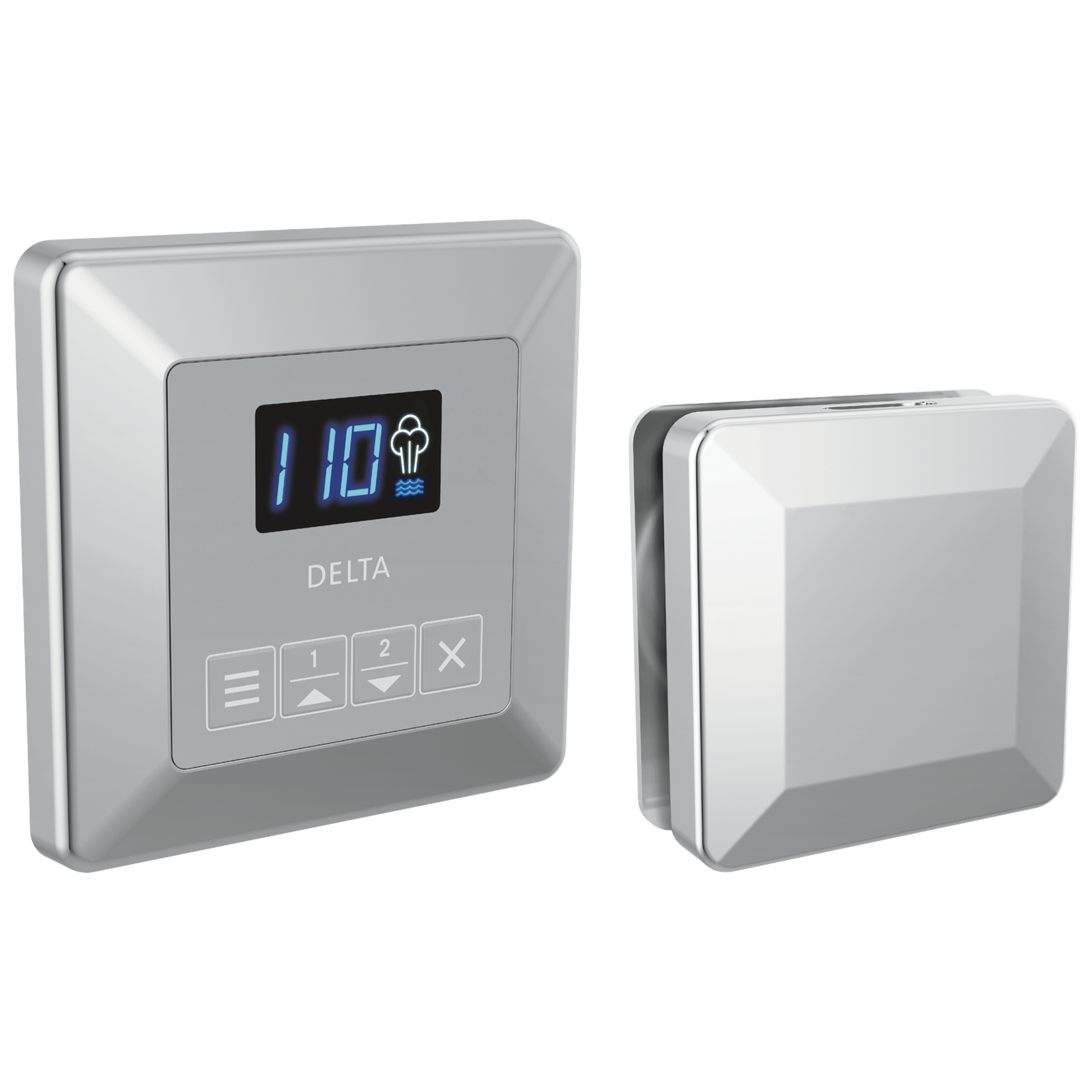

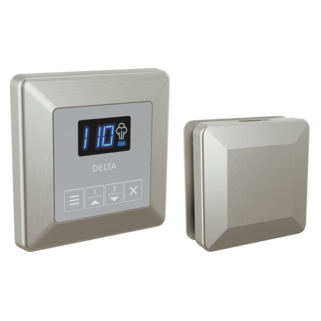

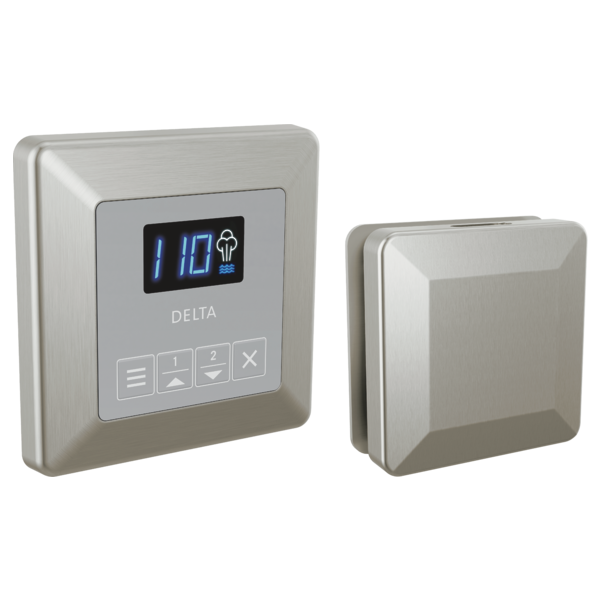

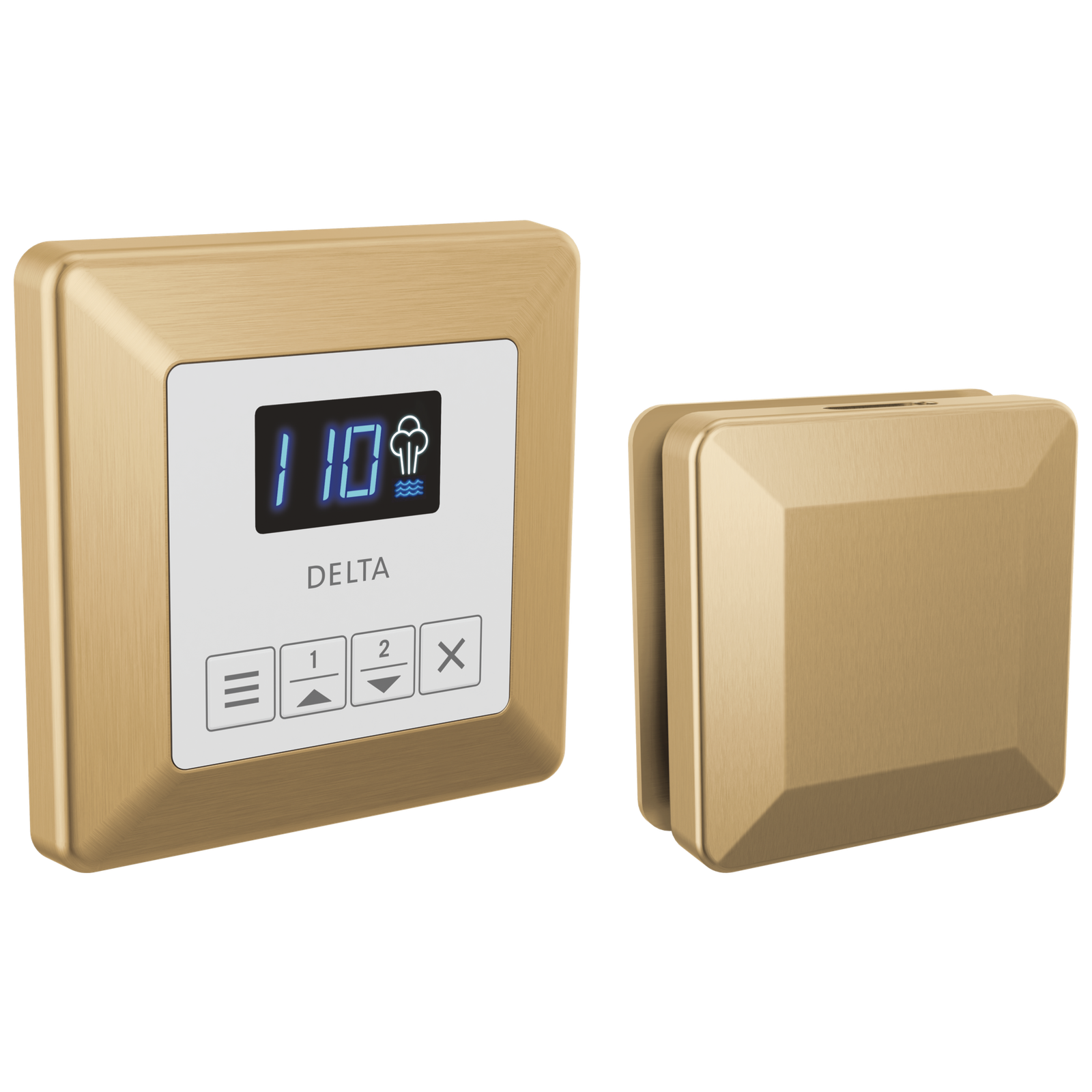

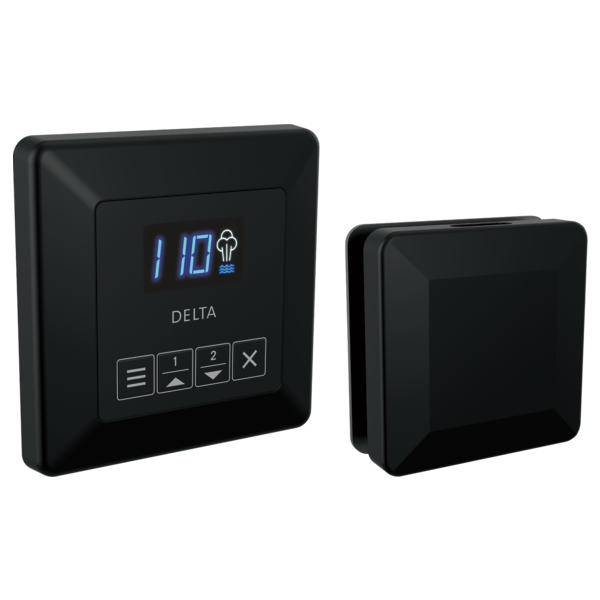

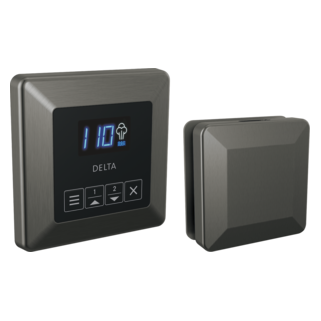

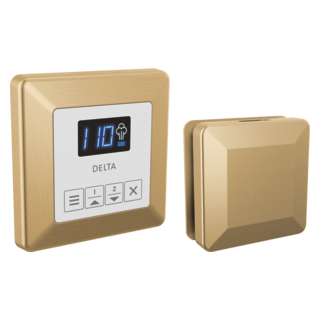

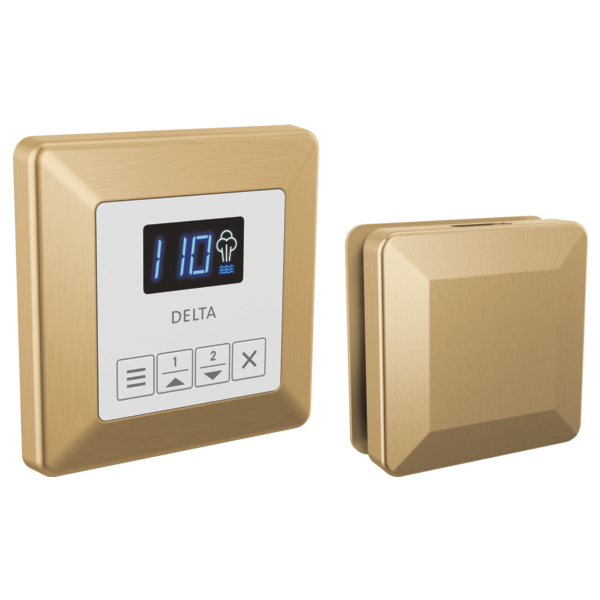

SteamScape™ Square Control and Square Steam Head

​​​​​​​SteamScape™ Square Control:

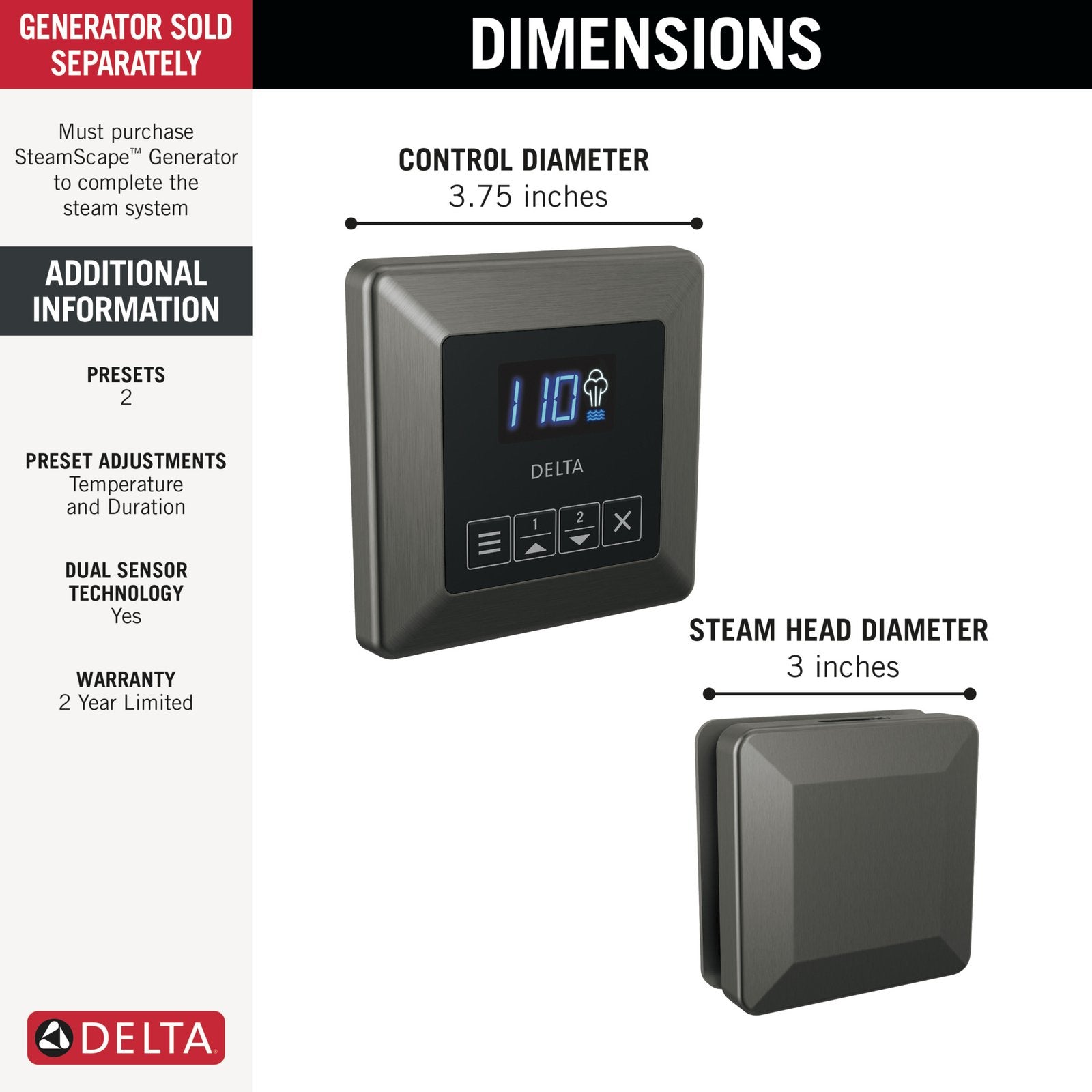

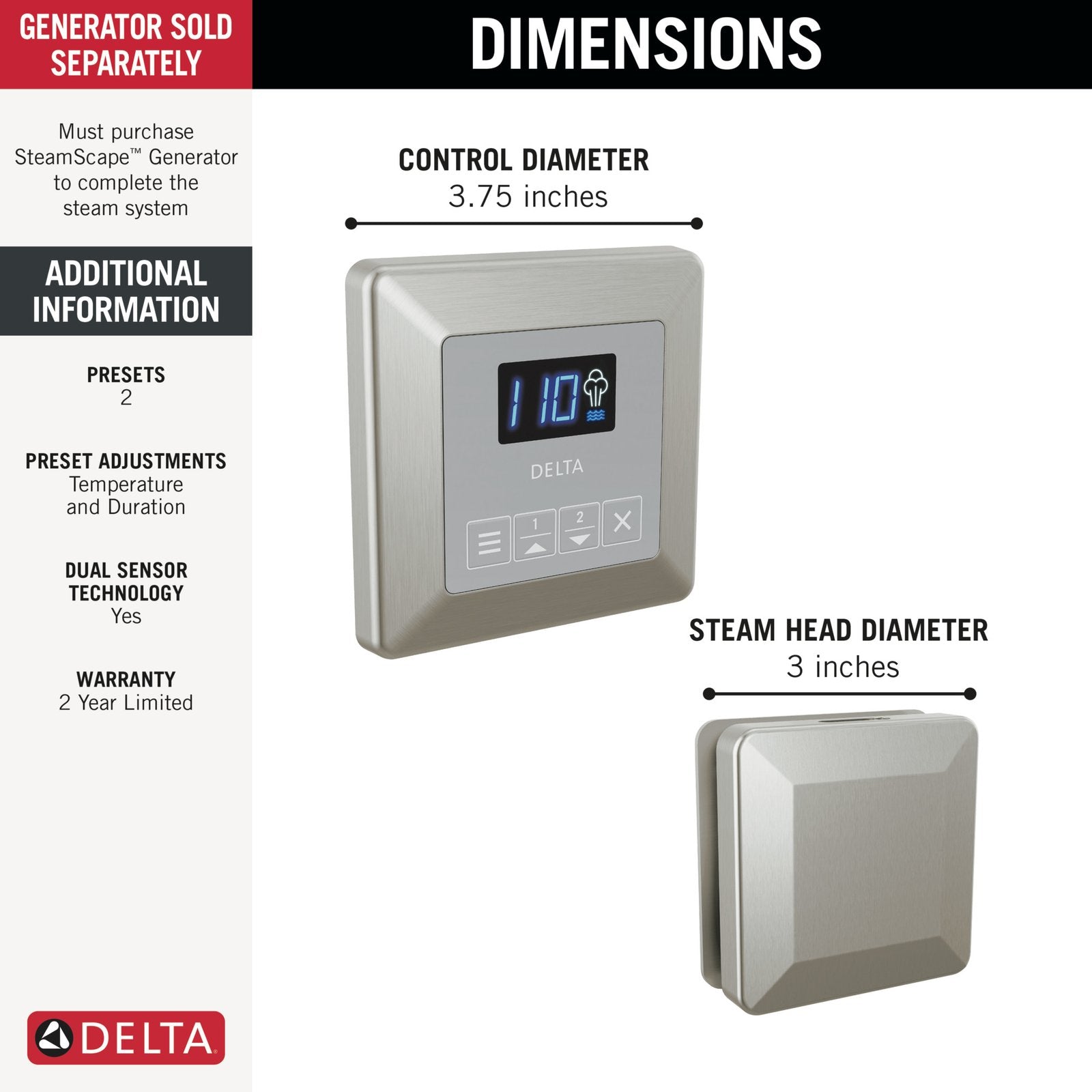

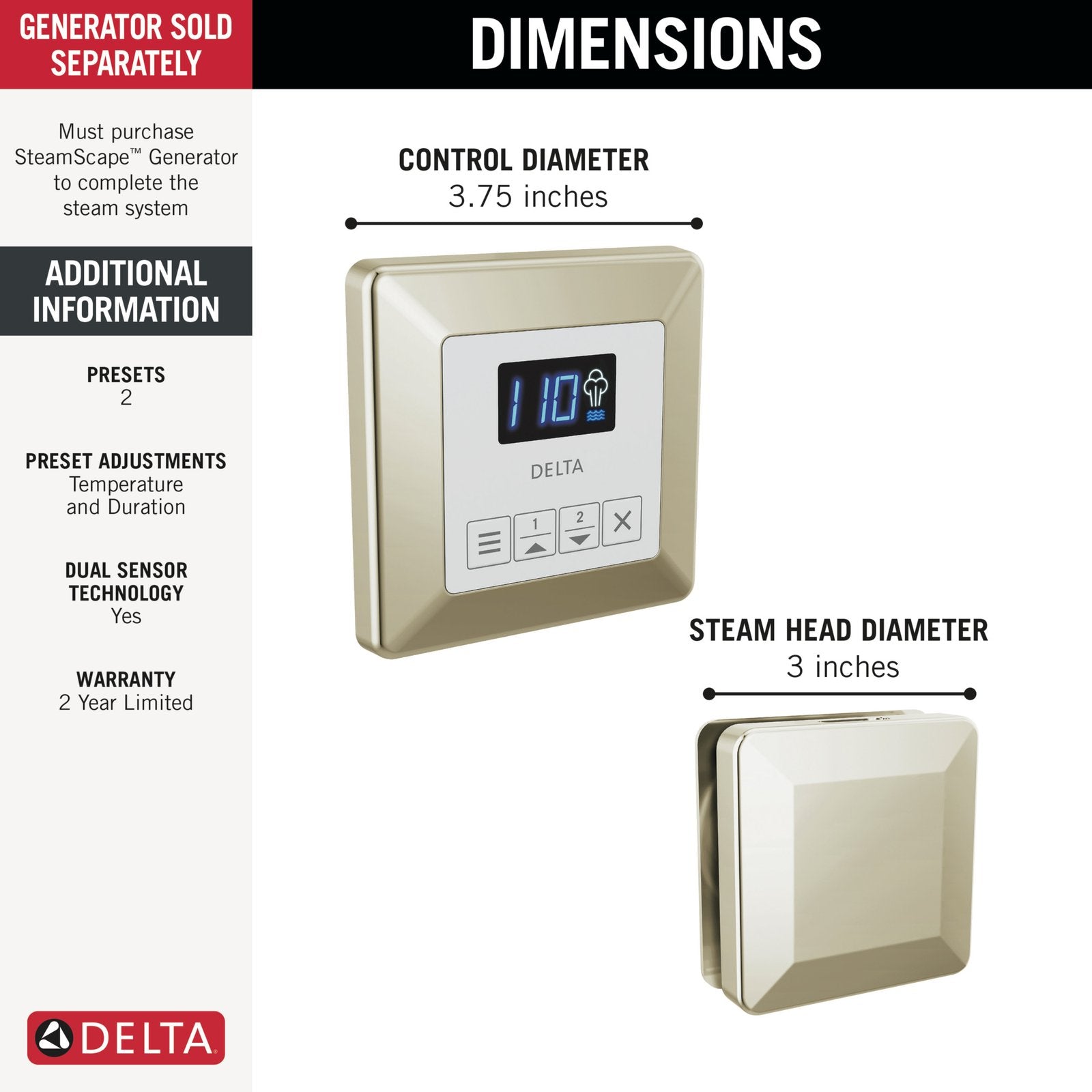

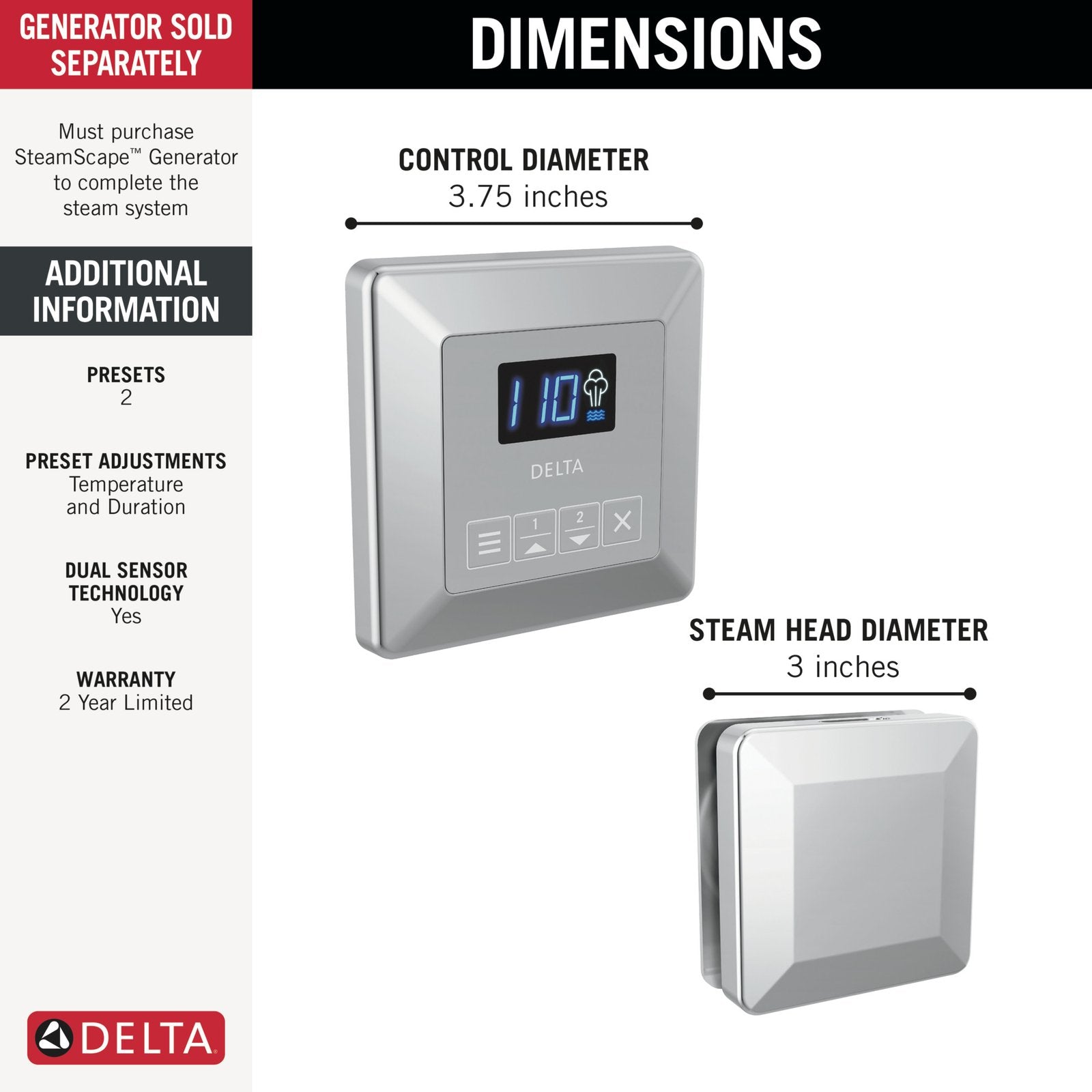

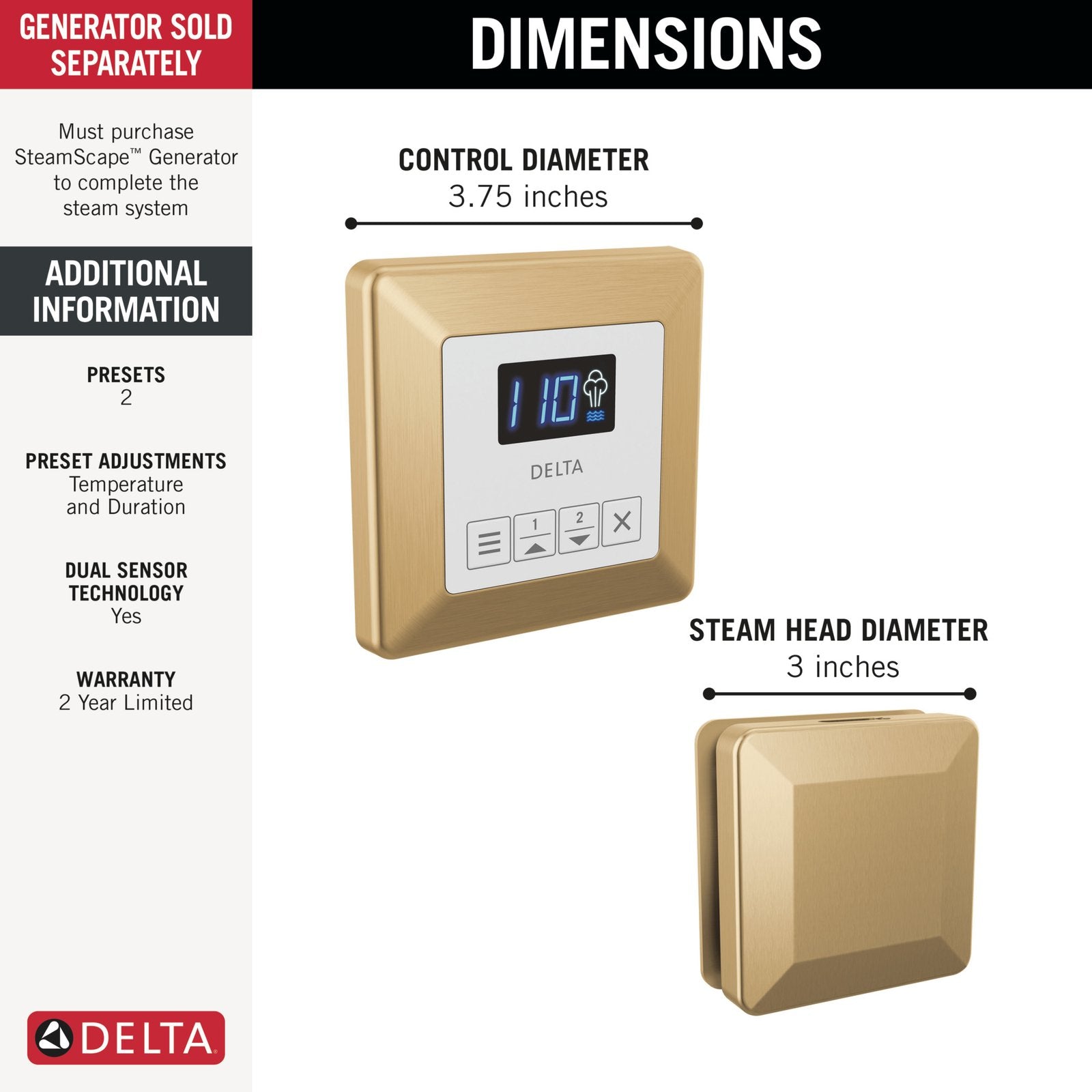

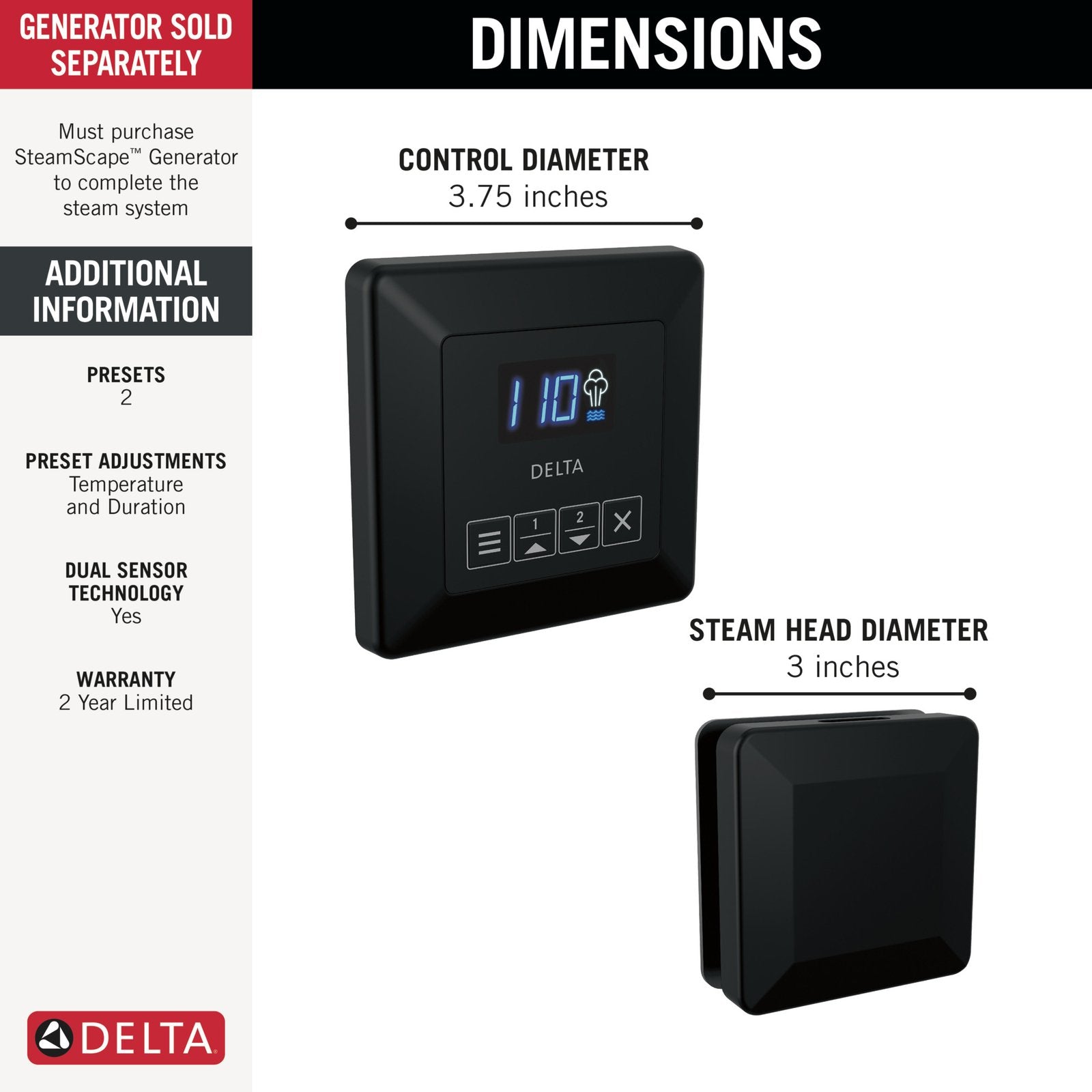

Product Dimensions: 3.75"H x 3.75"W x .63"D
Mounting Height: 48" Above the Floor
Temperature Range: 60°F - 125°F
Time Programmable: Up to 60 Minutes
Square Steam Head:
Product Dimensions: 2.81"W x .75"D x 2.81"H
Steam Head Mounting Height: 12"-18" Above the Floor, 6" Above Rim of Tub

SteamScape™ Square Control

- Control turns system off and on and adjusts temperature and duration

- Temperature digital display of ambient temperature, set point and cycle time, system status, and diagnostic error codes.

- Steam and water cycle icon is illuminated while steam bath cycles are running.

- Water cycle icon indicates when water is boiling inside in steam generator.

- Use the Menu Button to change cycle time, and switch between ºF and ºC. Toggle between cycles when steam is off by pressing menu button.

- 2 User Buttons: Pressing these buttons during a cycle will change the temperature and remaining time left on that cycle.

- Control included in the SimpleSteam™ Kit

- Lumicoat™ Finishes are guaranteed to resist water spots and mineral buildup. Easily wipe clean without chemicals or cleaners.

- Control must be installed inside the shower area

- 2-Year (Consumers Use) Warranty

Square Steam Head

- Steam Head features 360° dispersion

- Essential oil reserve on top of steam head

- Lumicoat™ Finishes are guaranteed to resist water spots and mineral buildup and easily wipe clean without chemicals or cleaners

- 2-Year (Consumers Use) Warranty

- Square Control

- 35-Ft. Multi-Conductor Cable

- Strain Relief Clamp

- Silicone Sealant

- 6-Pin Coupler

- SimpleSteam™ Square Steamhead

- Silicone Cover
