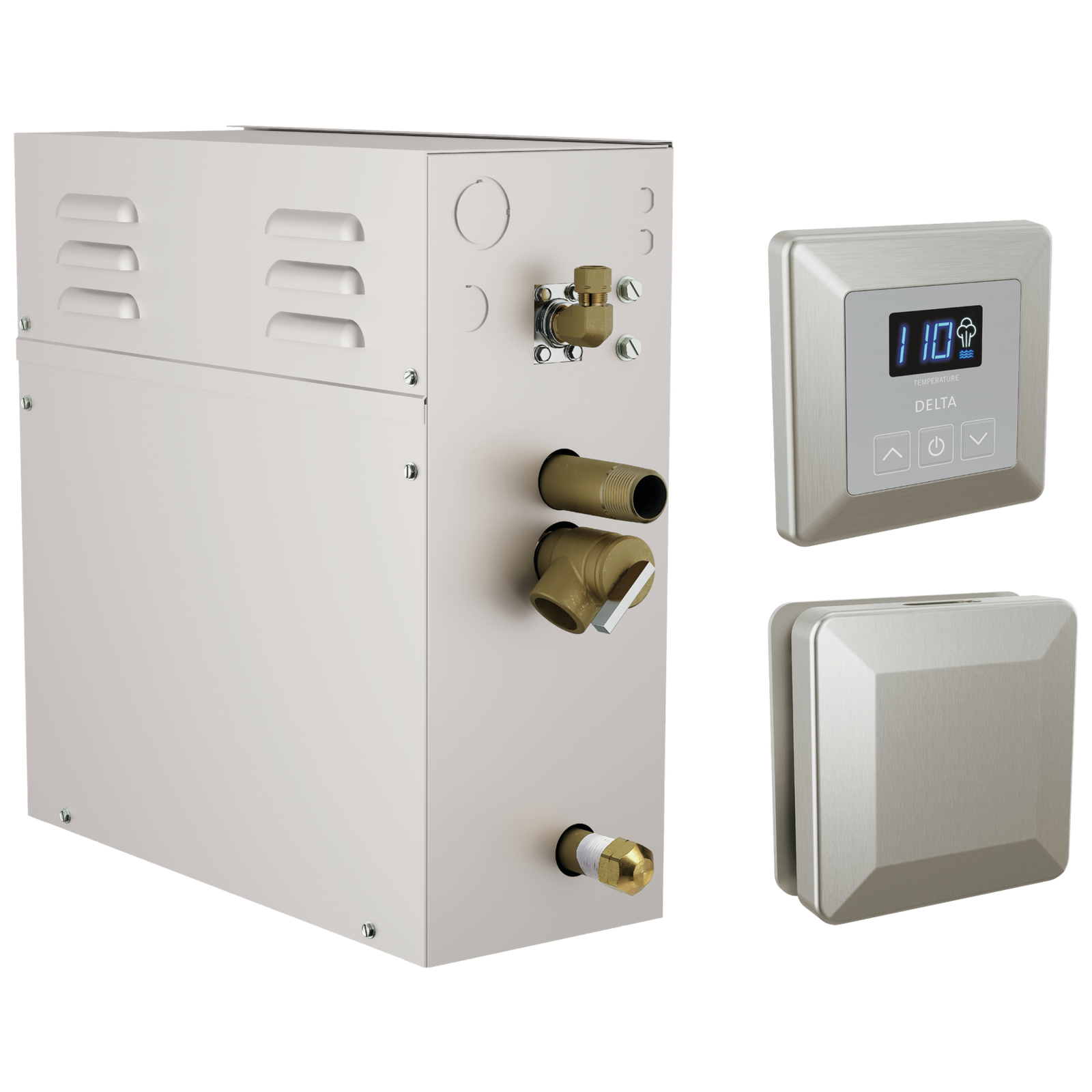

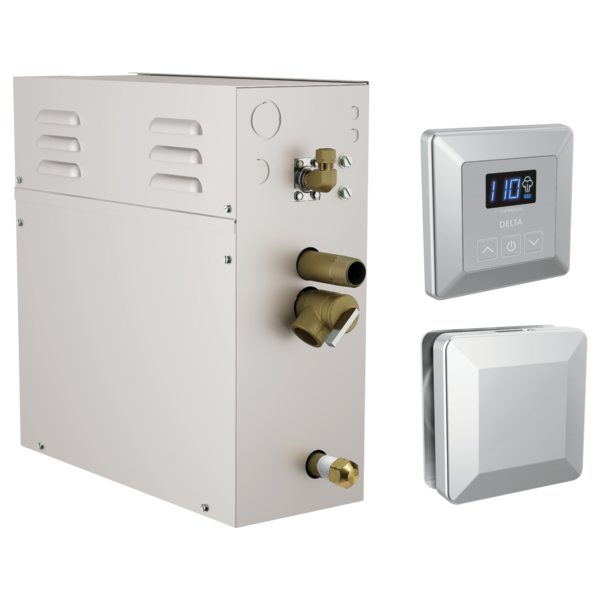

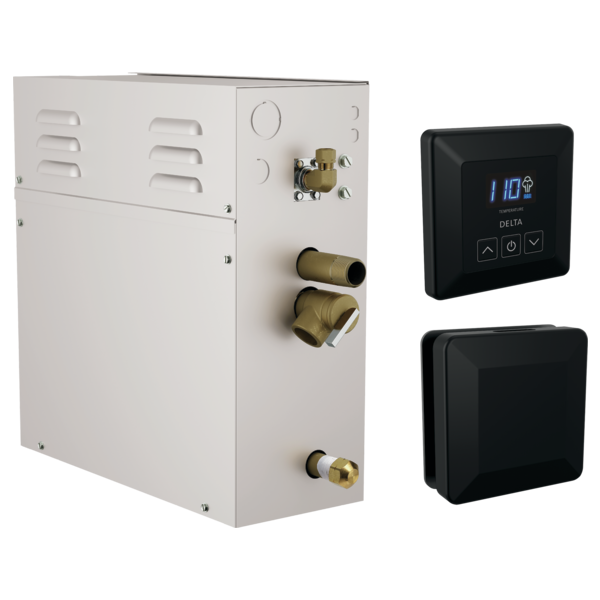

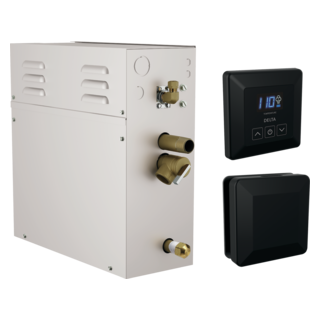

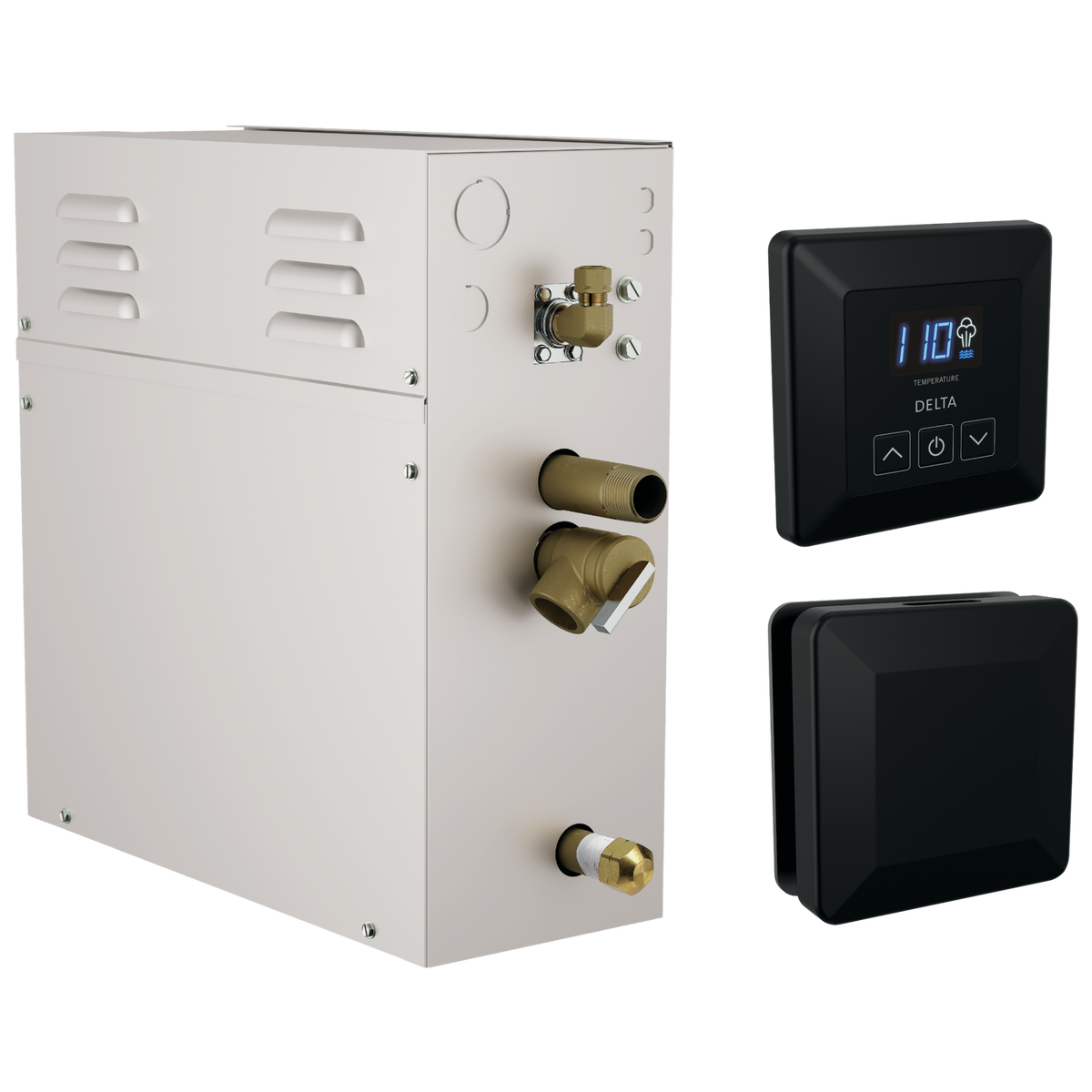

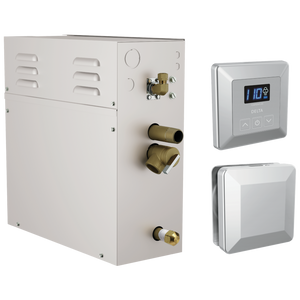

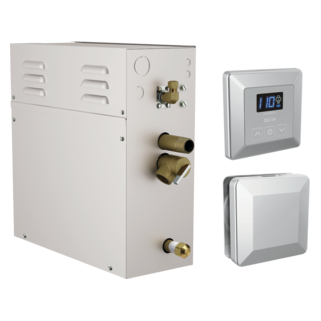

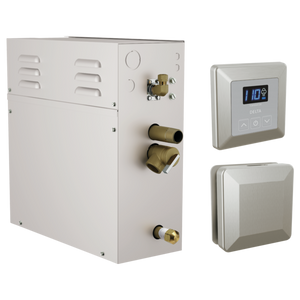

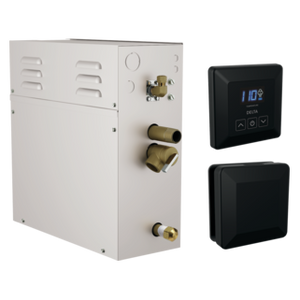

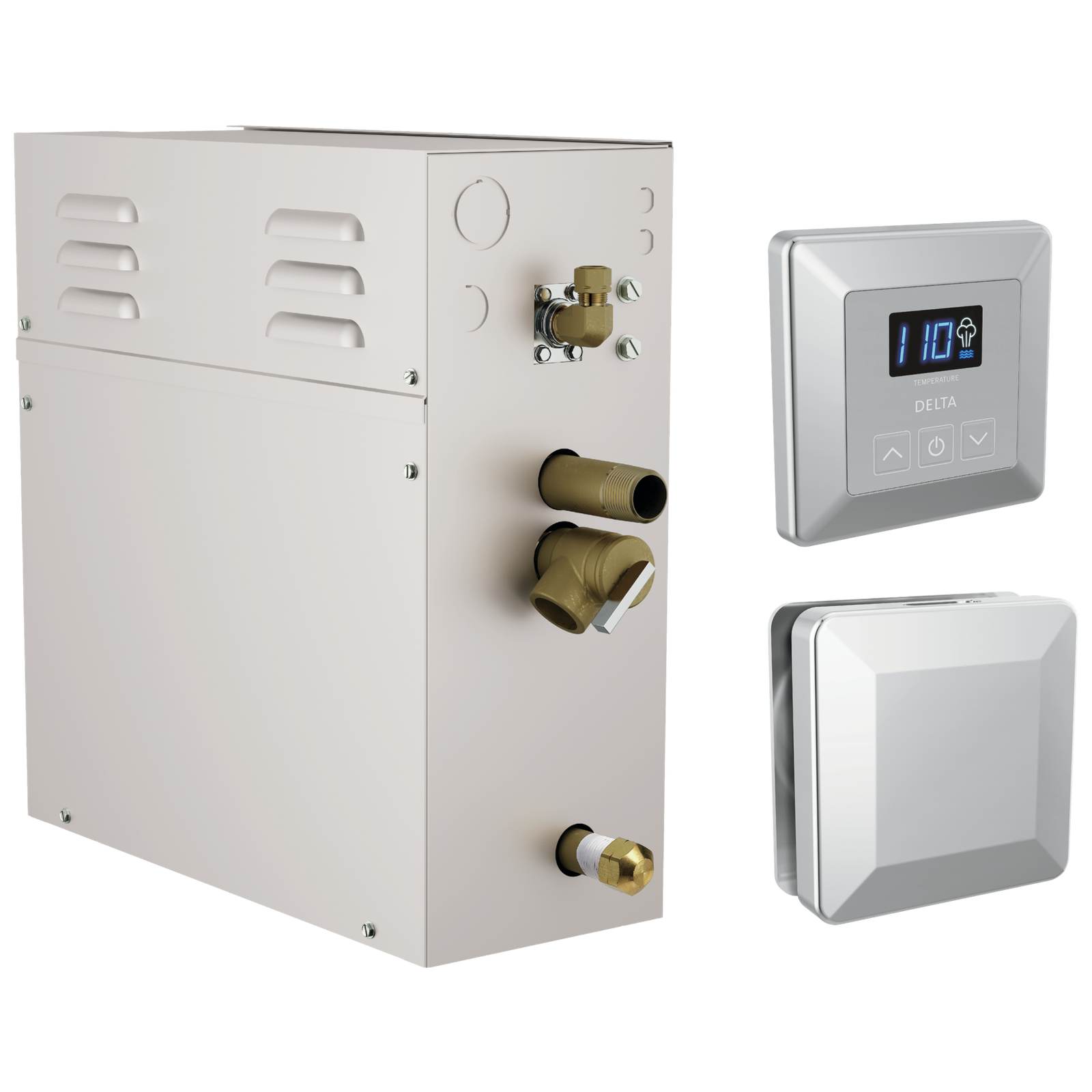

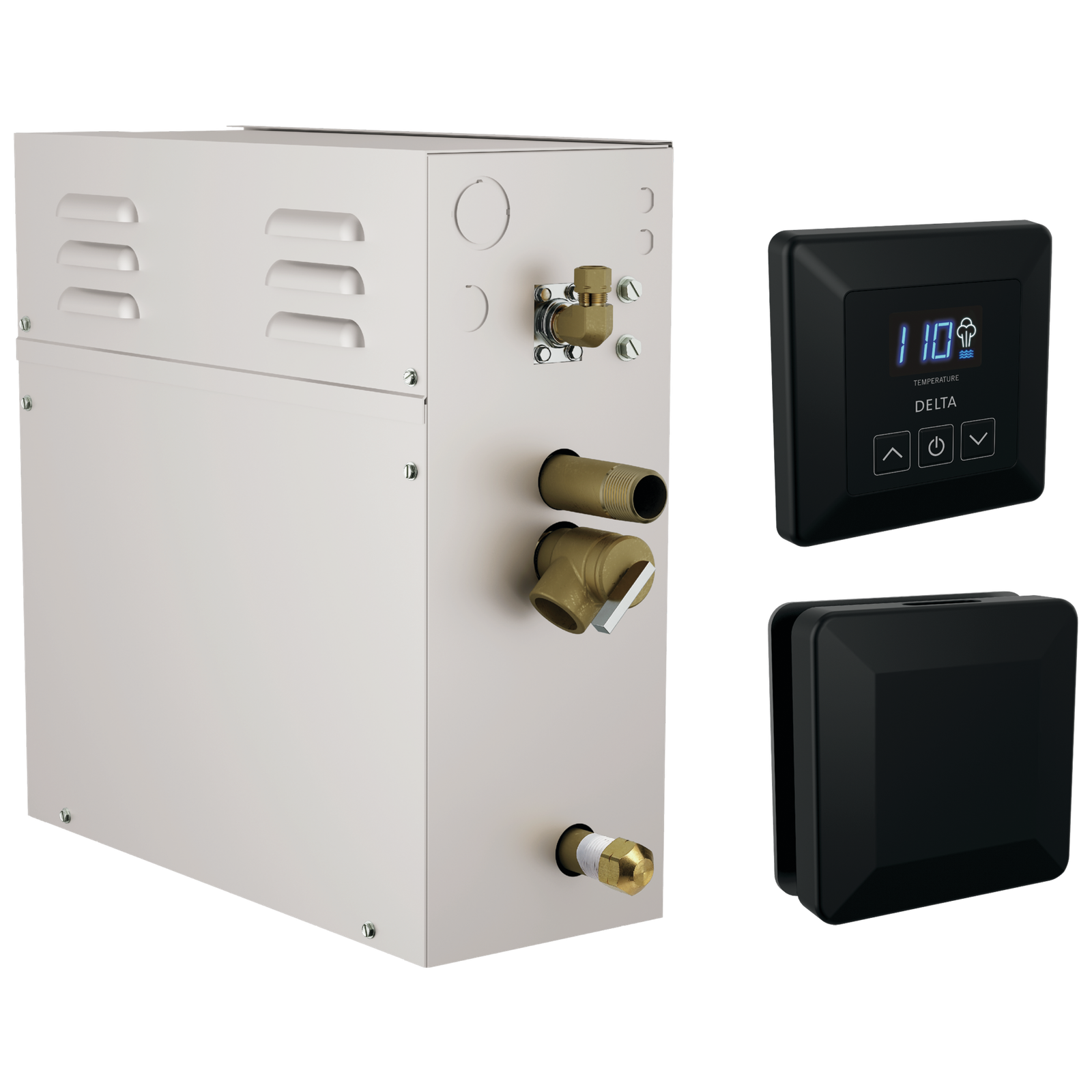

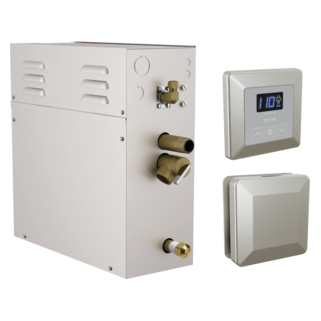

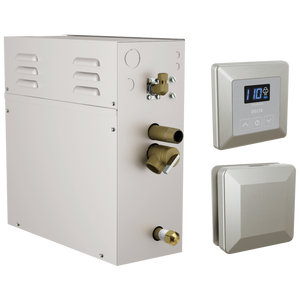

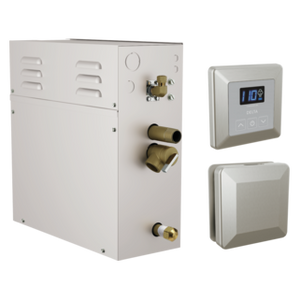

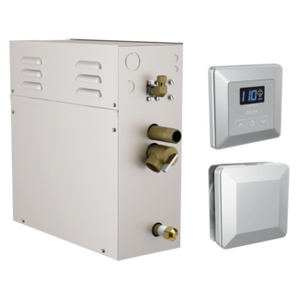

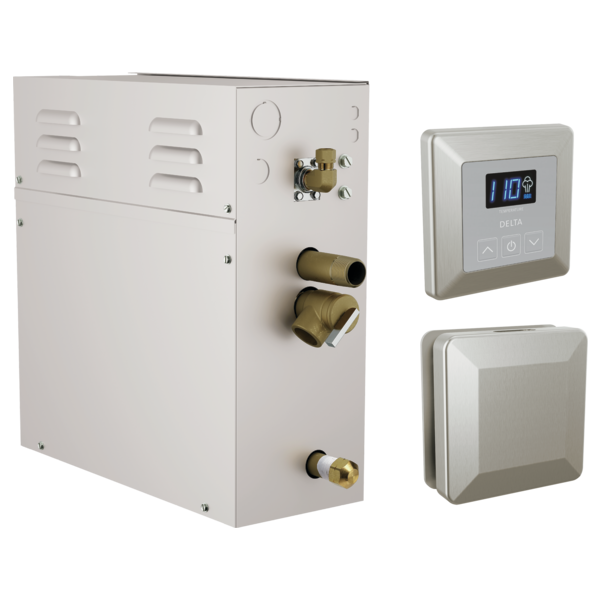

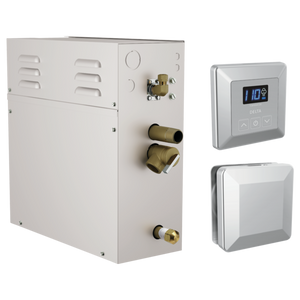

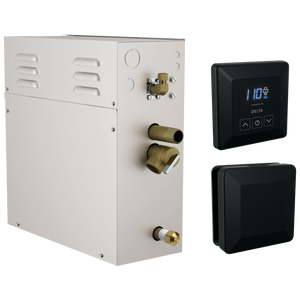

Delta SimpleSteam™ 7.5kW Kit

Model: 5P-EST07

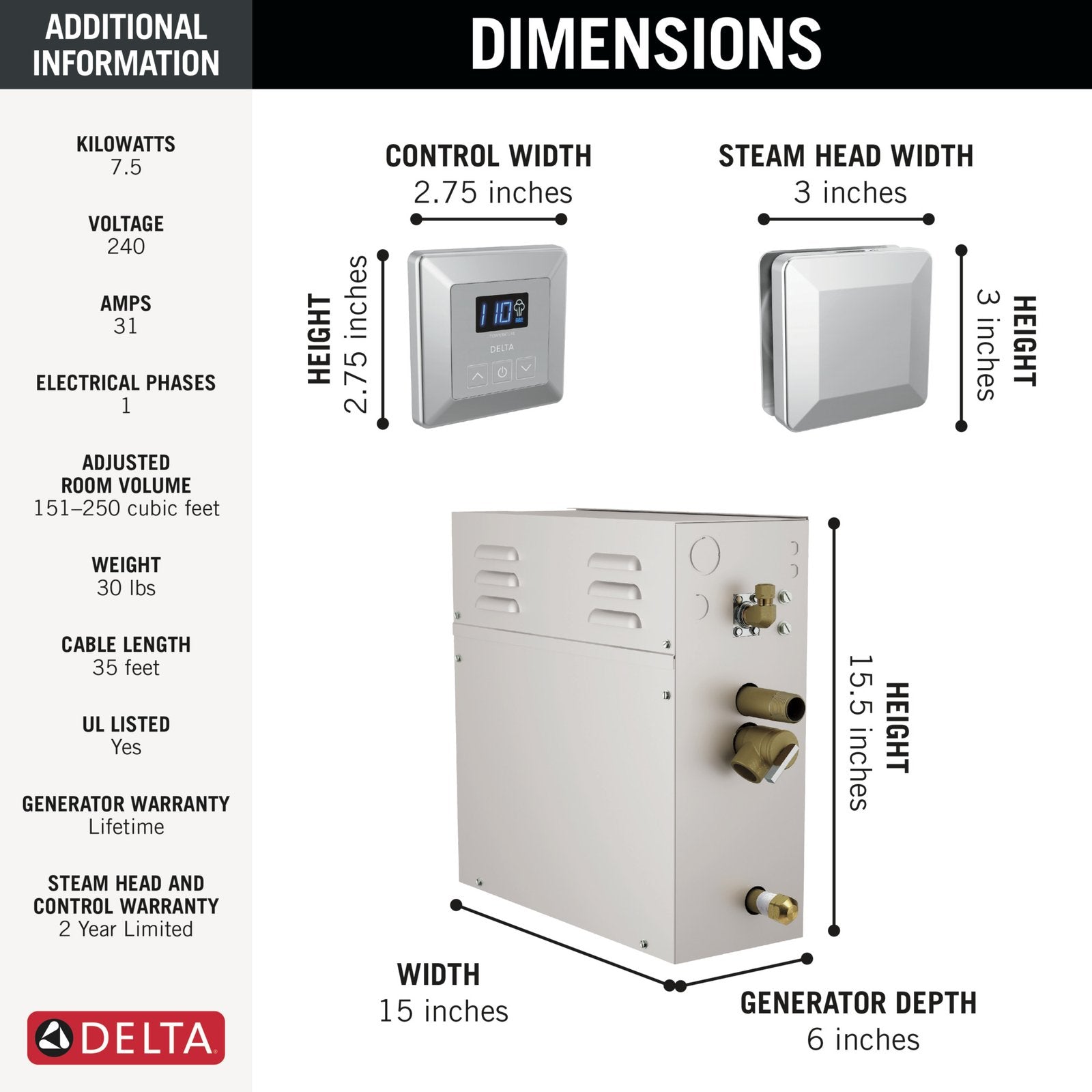

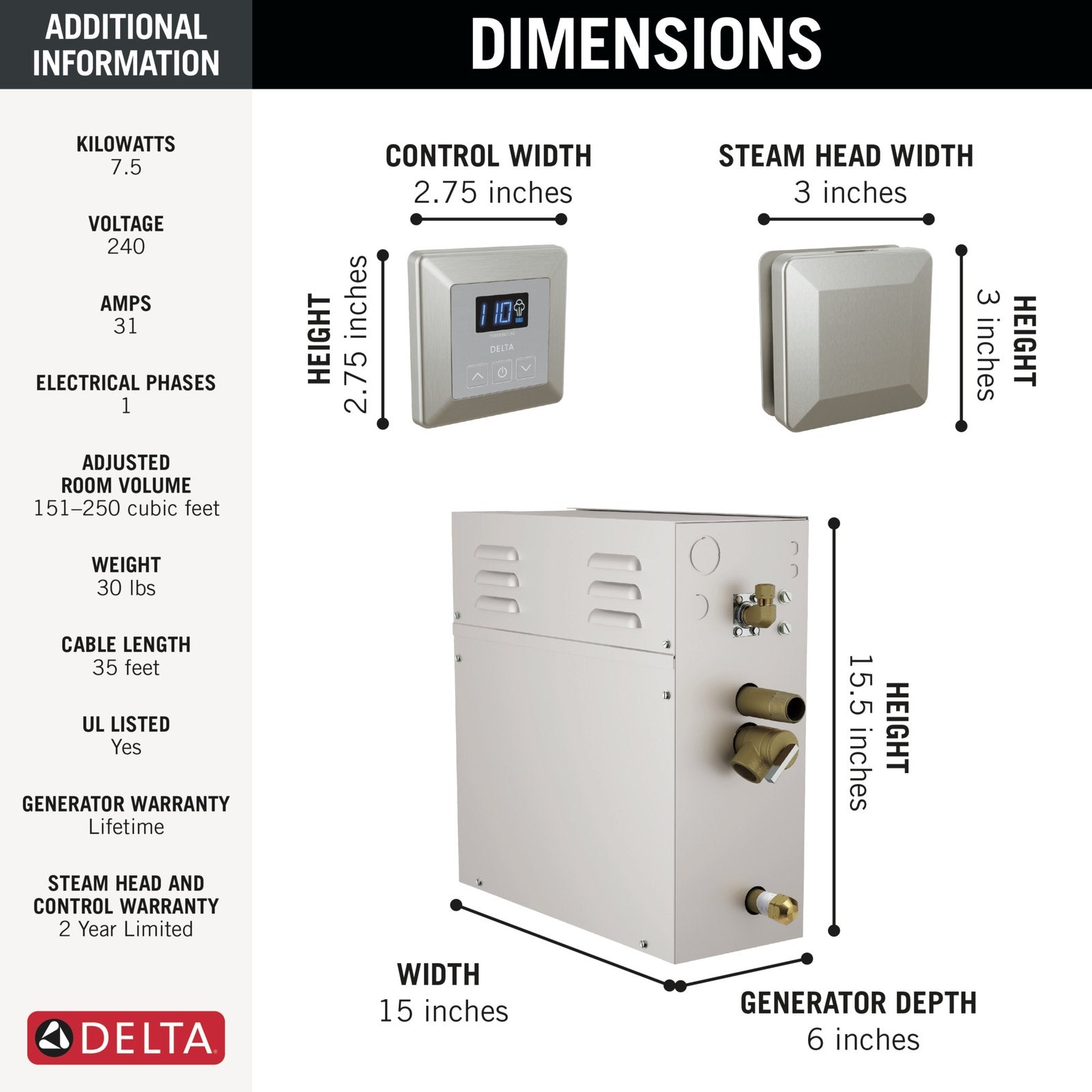

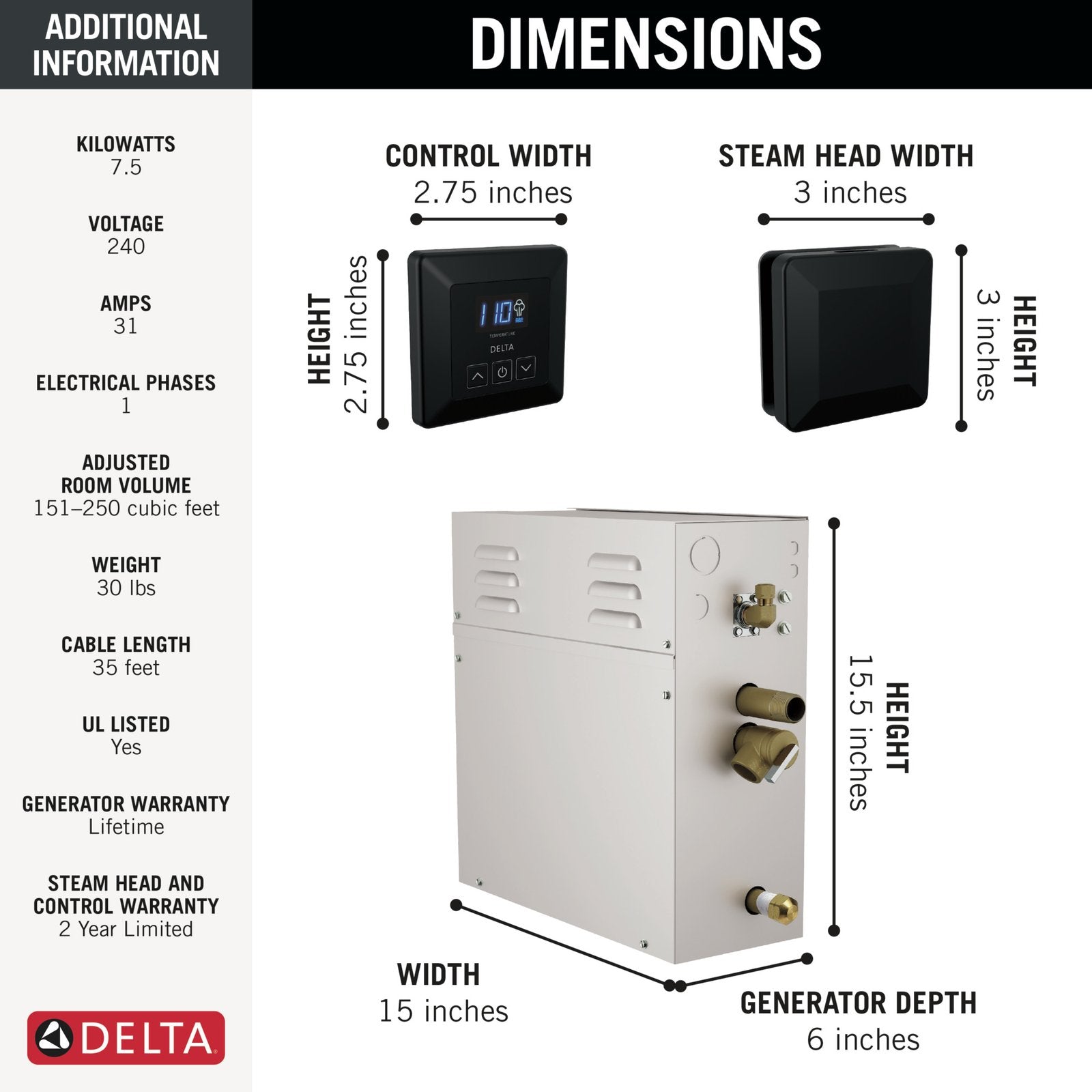

Product Dimensions: 15"L x 6"W x 15.5"H
Kilowatt Rating: 7.5kW
Max Cu. Ft. Range: 250
Voltage: 240
Phase: 1
Amps: 31
Line Fuse: 40
Frequency: 60
Wattage: 7500
Prop 65 WARNING: Lead
SimpleSteam™ Square Steamhead:
Product Dimensions: 3.19"W x 1.25"D x 3.19"H
SimpleSteam™ Square Control:
Product Dimensions: 2.75"W x .63"D x 2.75"H

Delta SimpleSteam™ Generator

- Proportional steam ensures a consistent temperature in the shower with no temperature spikes

- Compact design permits generator installation in a vanity, closet, or insulated attic or basement

- Recommended generator pan and auto drain 5GA-PAD-240 available for purchase separately

- Microprocessor based diagnostics and LED indication

- Stainless steel tank

- Generator is UL Listed

- Limited Lifetime Warranty

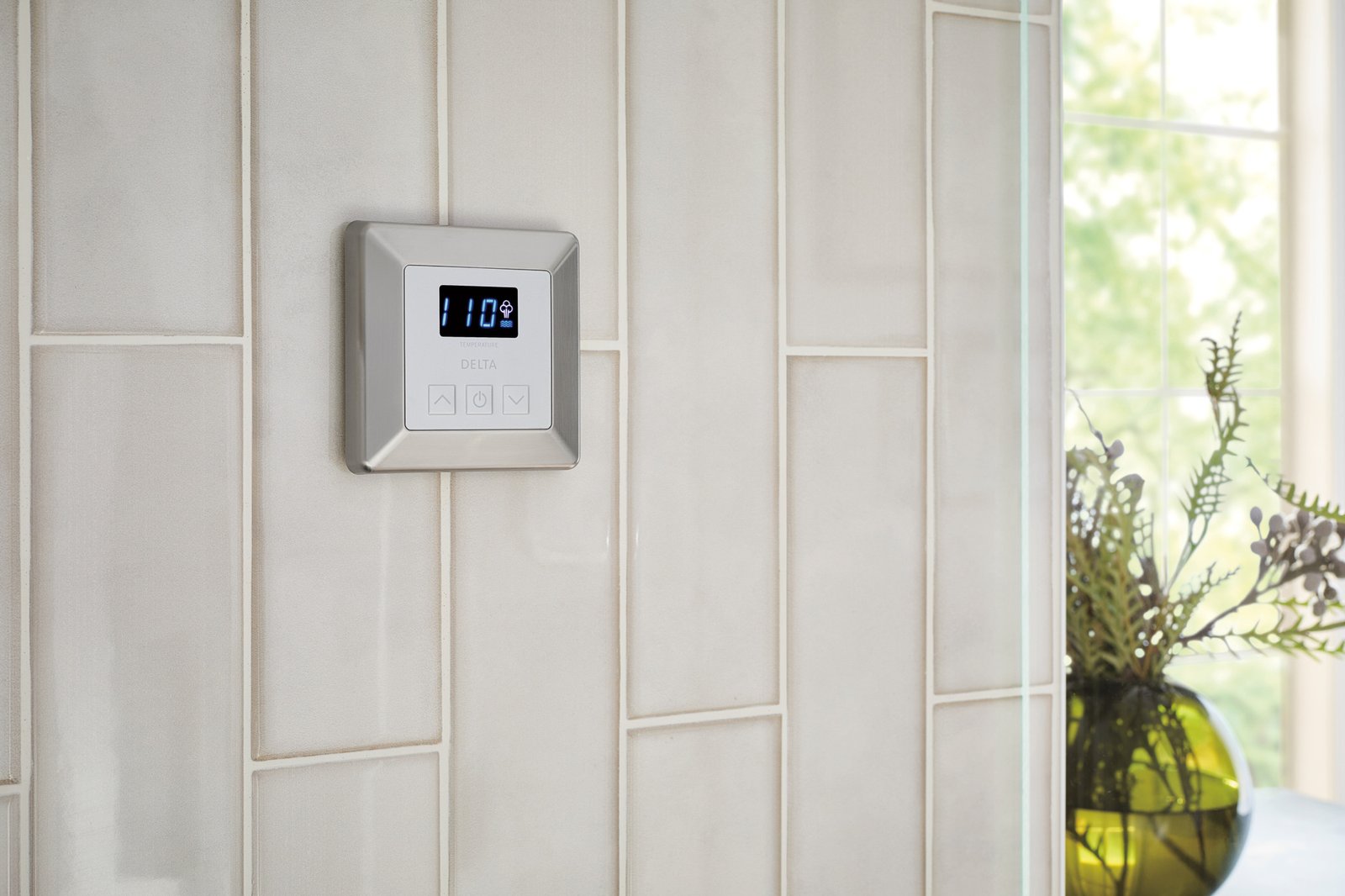

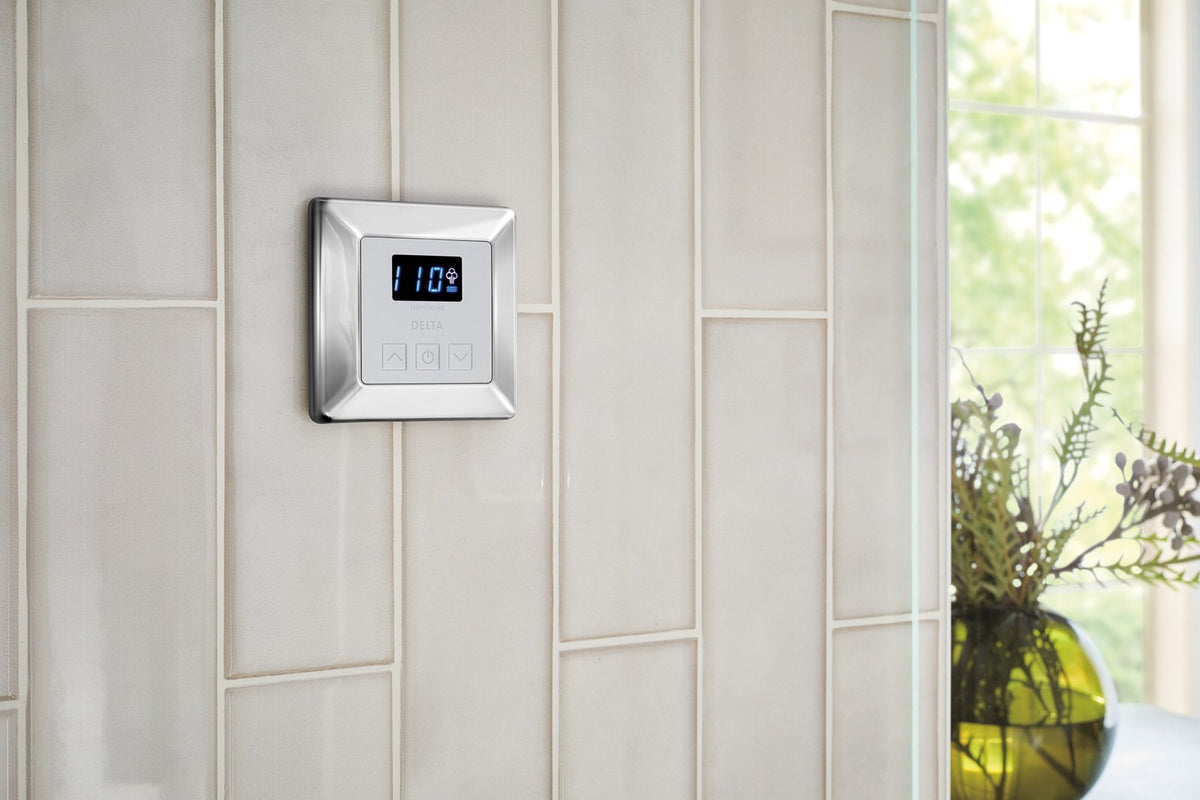

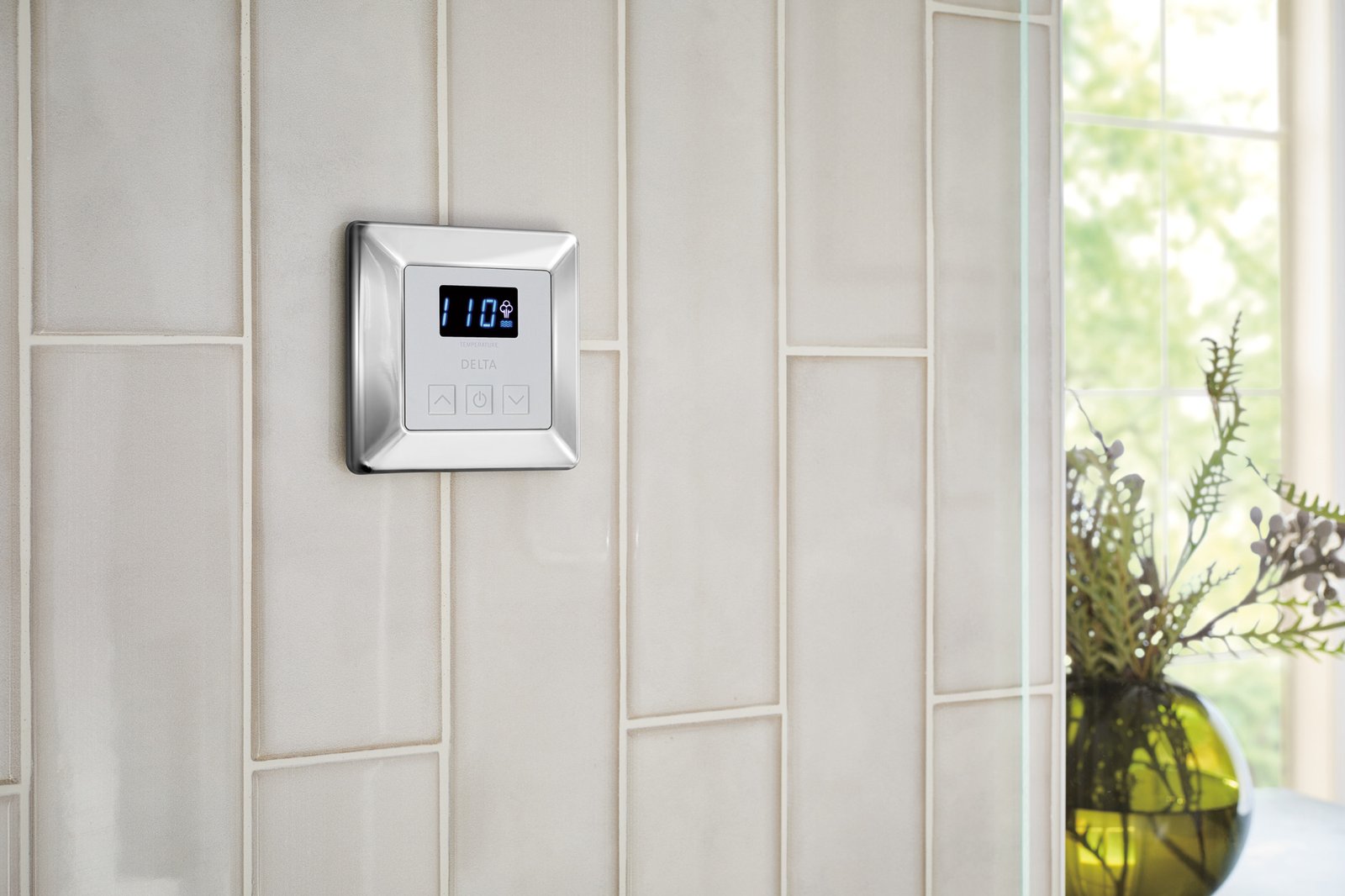

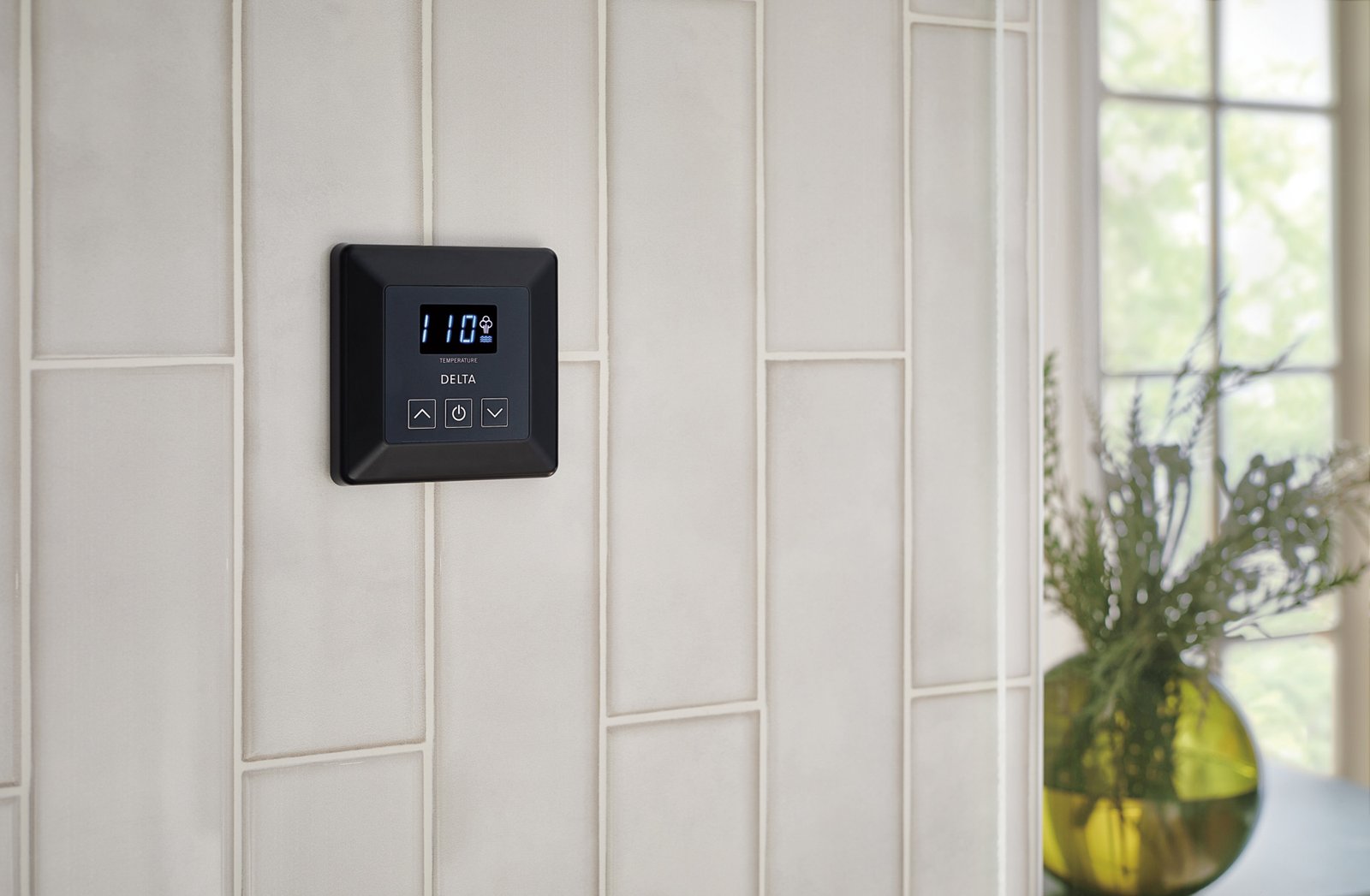

Delta SimpleSteam™ Square Control

- Control turns system off and on and adjusts temperature and duration

- Temperature digital display of ambient temperature, set point and cycle time, system status, and diagnostic error codes.

- Steam and water cycle icon is illuminated while steam bath cycles are running.

- Water cycle icon indicates when water is boiling inside in steam generator.

- Use the Menu Button to change cycle time, and switch between ºF and ºC. Toggle between cycles when steam is off by pressing menu button.

- 2 User Buttons: Pressing these buttons during a cycle will change the temperature and remaining time left on that cycle.

- Control included in the SimpleSteam™ Kit

- Lumicoat™ Finishes are guaranteed to resist water spots and mineral buildup. Easily wipe clean without chemicals or cleaners.

- Control must be installed inside the shower area

- 2-Year (Consumers Use) Warranty

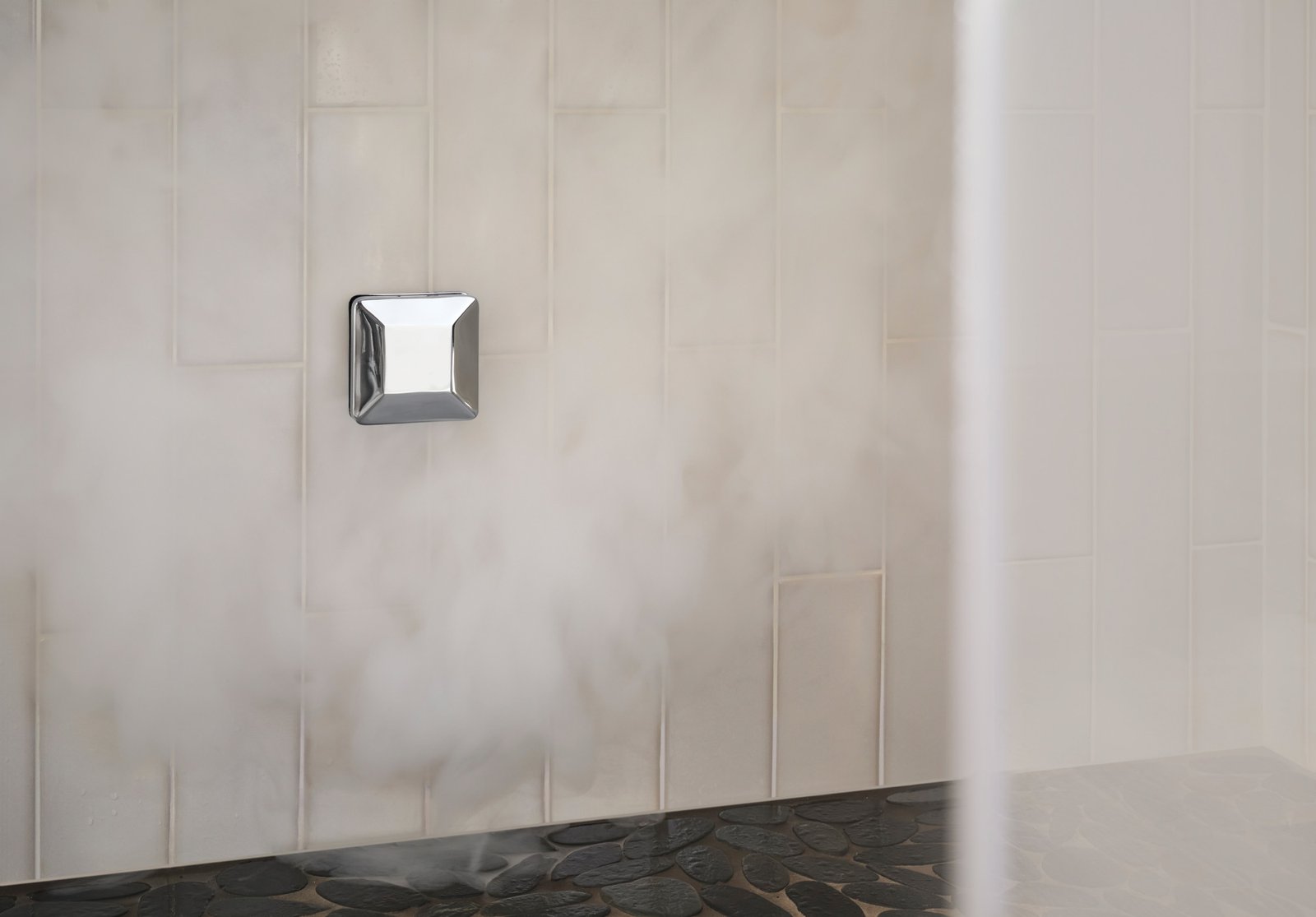

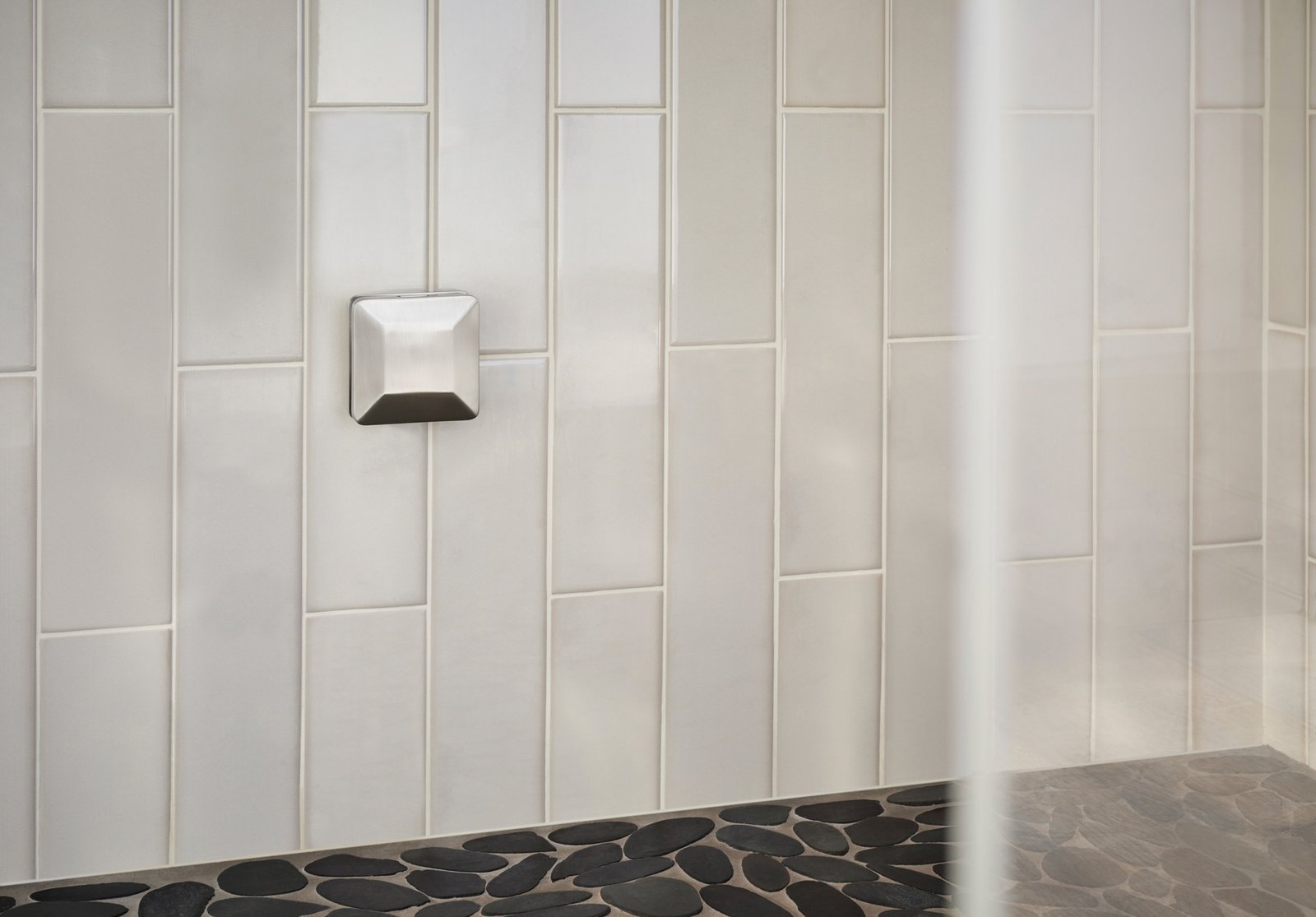

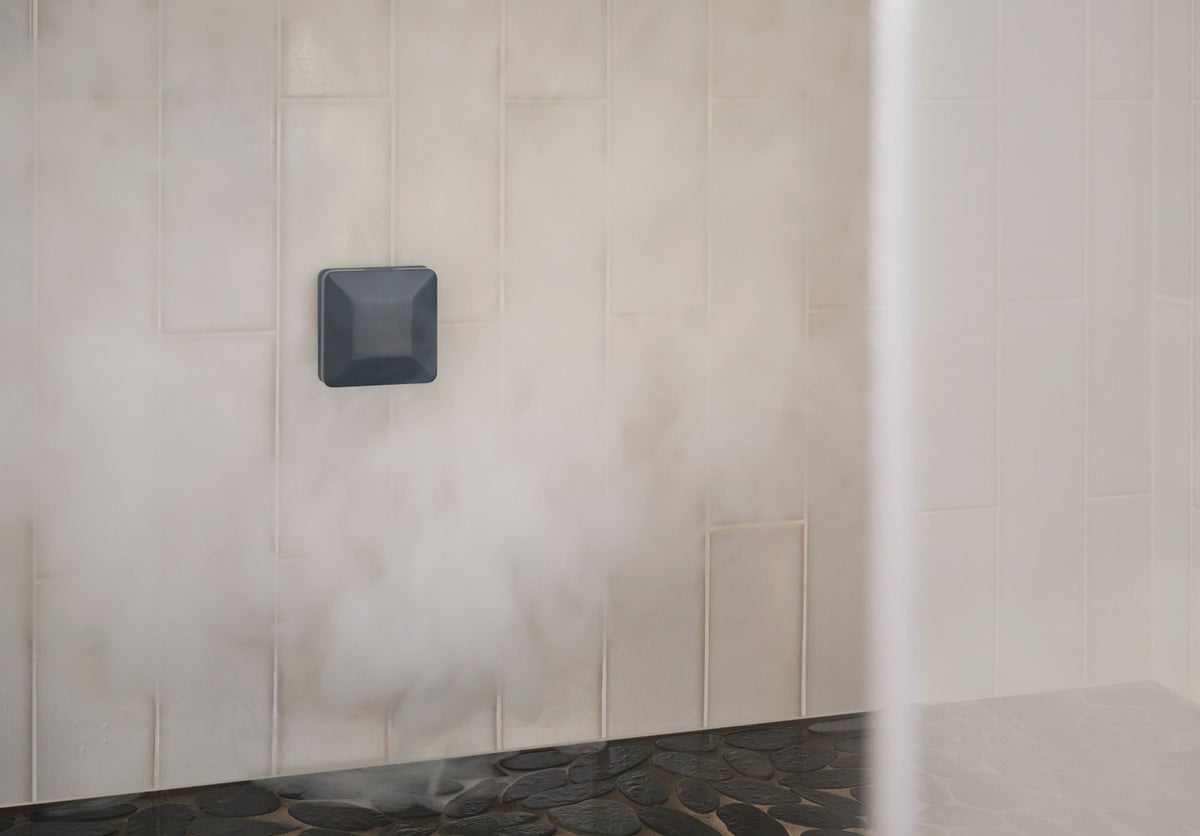

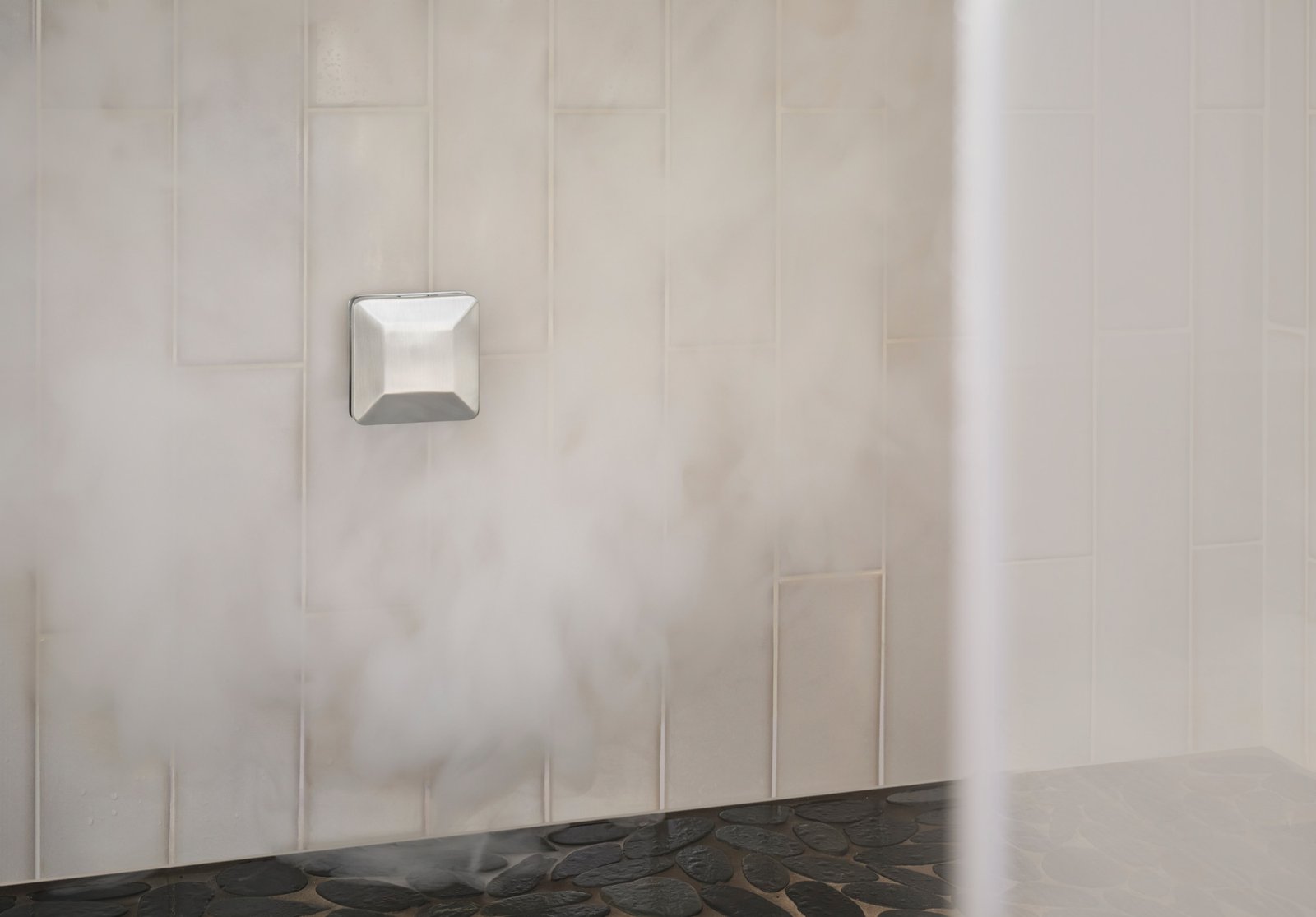

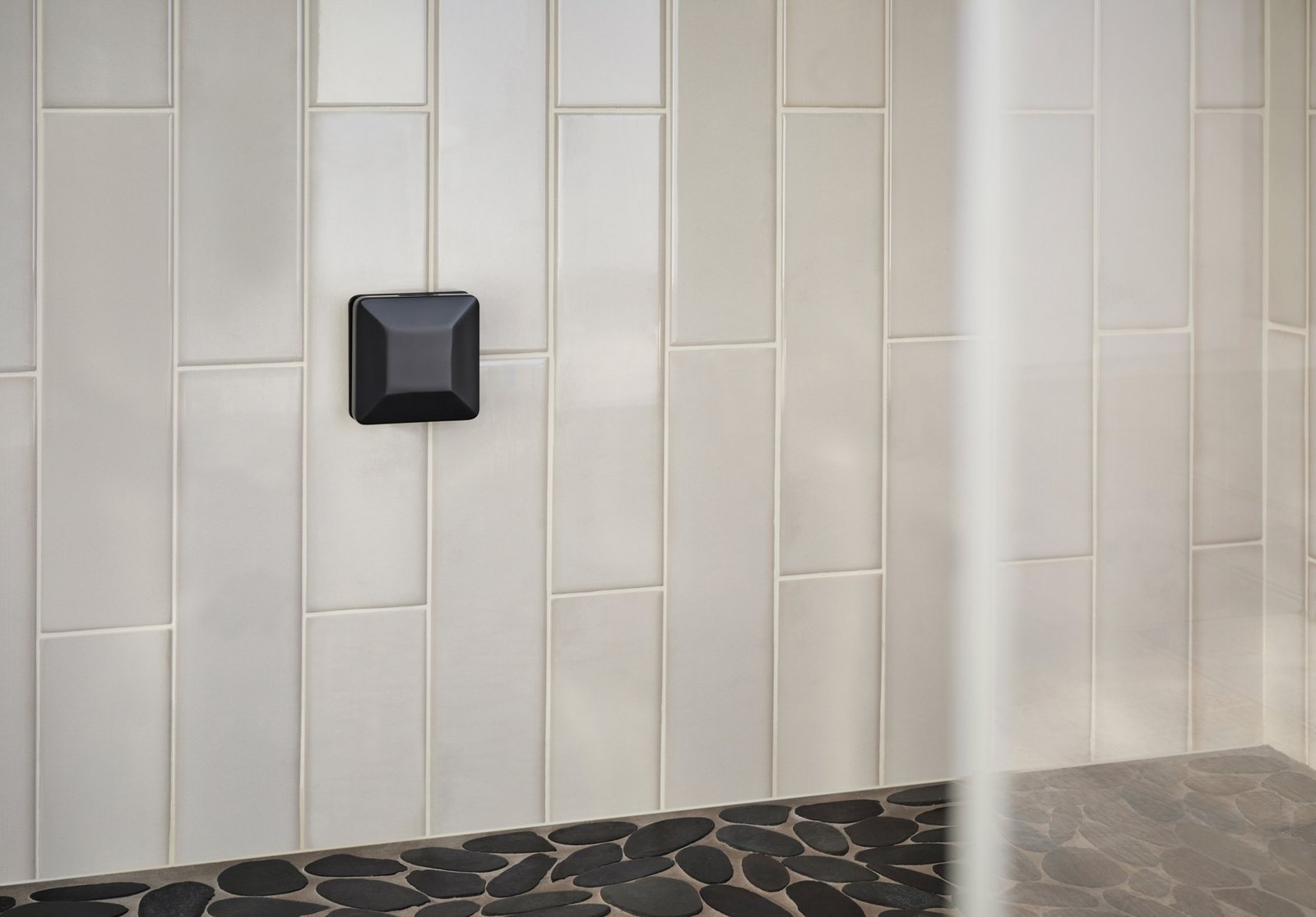

Delta SimpleSteam™ Square Steam Head

- Steam Head features 360° dispersion

- Essential oil reserve on top of steam head

- Steam Head 3/4" NPT, includes silicone cover

- Lumicoat™ Finishes are guaranteed to resist water spots and mineral buildup and easily wipe clean without chemicals or cleaners

- 2-Year (Consumers Use) Warranty

- SimpleSteam™ 7kW Generator

- Includes 35' cable (alternative length extension cable sold separately)

- SimpleSteam™ Square Control

- Square Steam Head

- Silicone Cover for Steam Head

- Installation and Operation Manual

- Limited Warranty
